Machine Basic Info
- Manufacturer: Zibo Hengxing
- Model: 2640 Type Paper Machine
- Paper Grade: Decorative Base Paper
- Condition: Complete paper machine line (integrated production capability)
Core Performance Parameters
- Operating Speed: 500 m/min
- Production Capacity: 80–100 TPD (Tons Per Day)
- Rewinder Speed: 1600 m/min
- Maximum Reel Diameter: Ø2200 mm
Detailed Section Configuration
1. Wire Section
- Frame material: Stainless steel
-

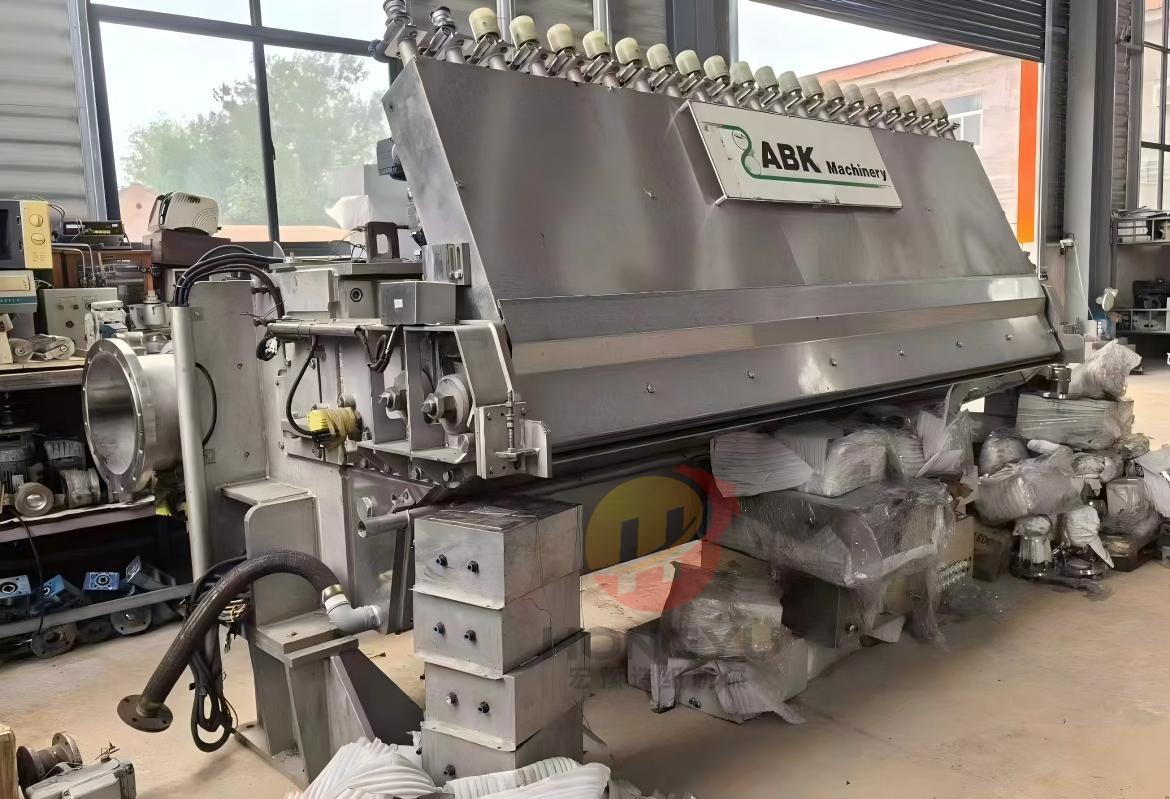

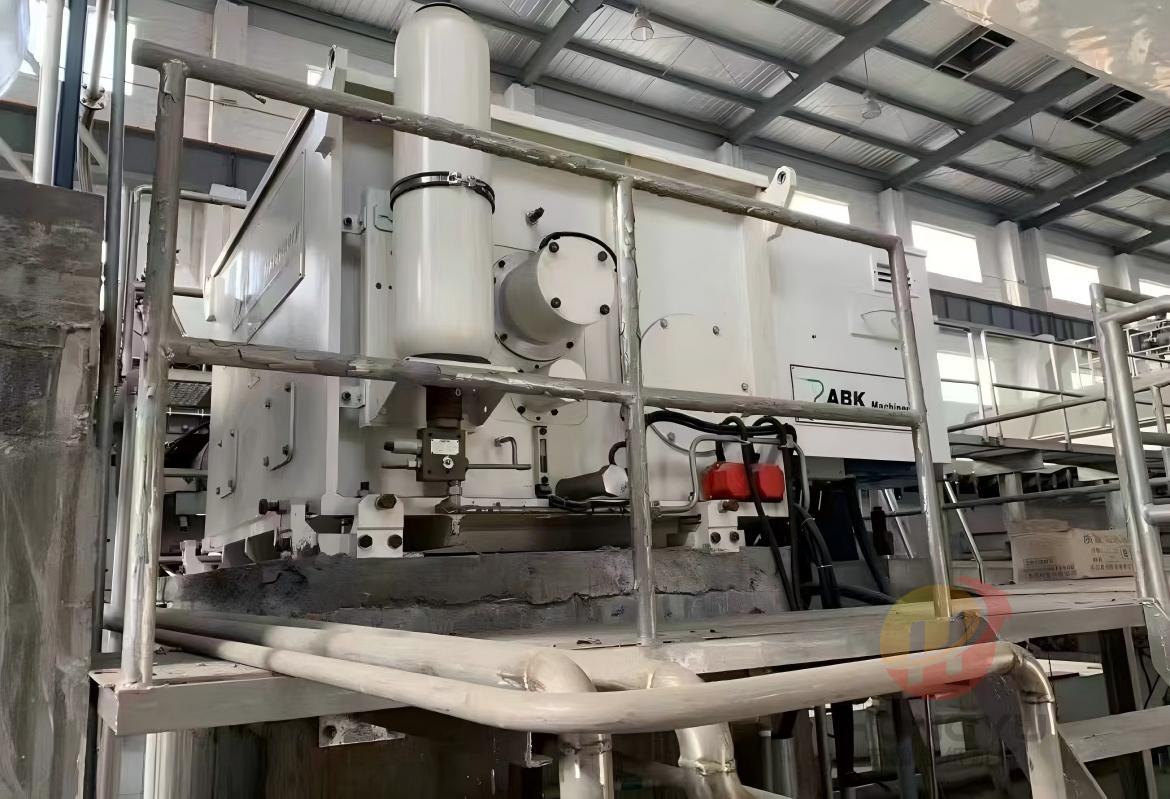

- ABK hydraulic headbox (France, high-precision pulp distribution)
-
- ABK no-backlash shaking device (stable wire operation)
-
- Vacuum couch roll: Ø800 mm
2. Press Section
- Frame material: Stainless steel
- Core configuration: Vacuum pickup + Three-roll, two-nip configuration (606 type composite press)
-
- Composite press rolls: Ø850 / Ø950 / Ø850 mm
-
- Straight press rolls: Ø850 / Ø950 mm

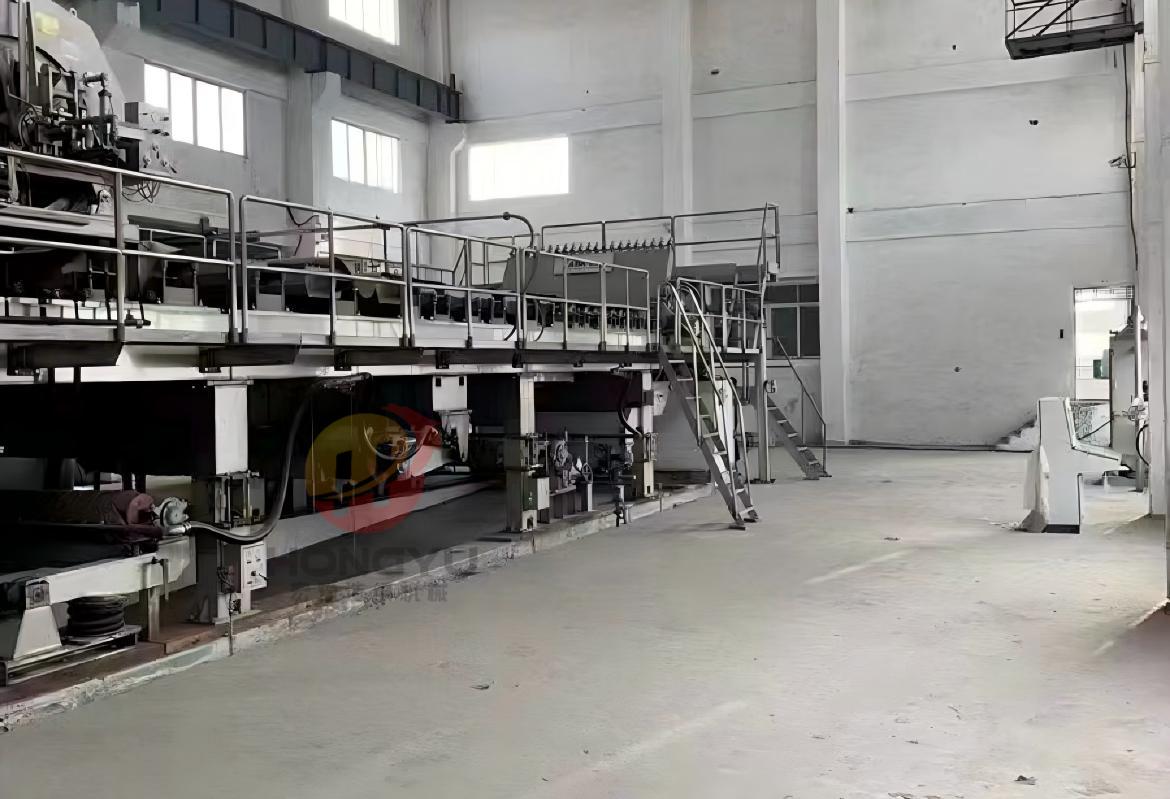

3. Dryer Section
- High-speed pick-up cylinder: 1 set, Ø1250 mm
- Grooved cylinders: 6 sets, Ø1500 mm
- Dryers: 26 sets, Ø1800 mm (face width 3150 mm, center distance 3800 mm)
- Drive system: Closed gearbox drive (stable power transmission)

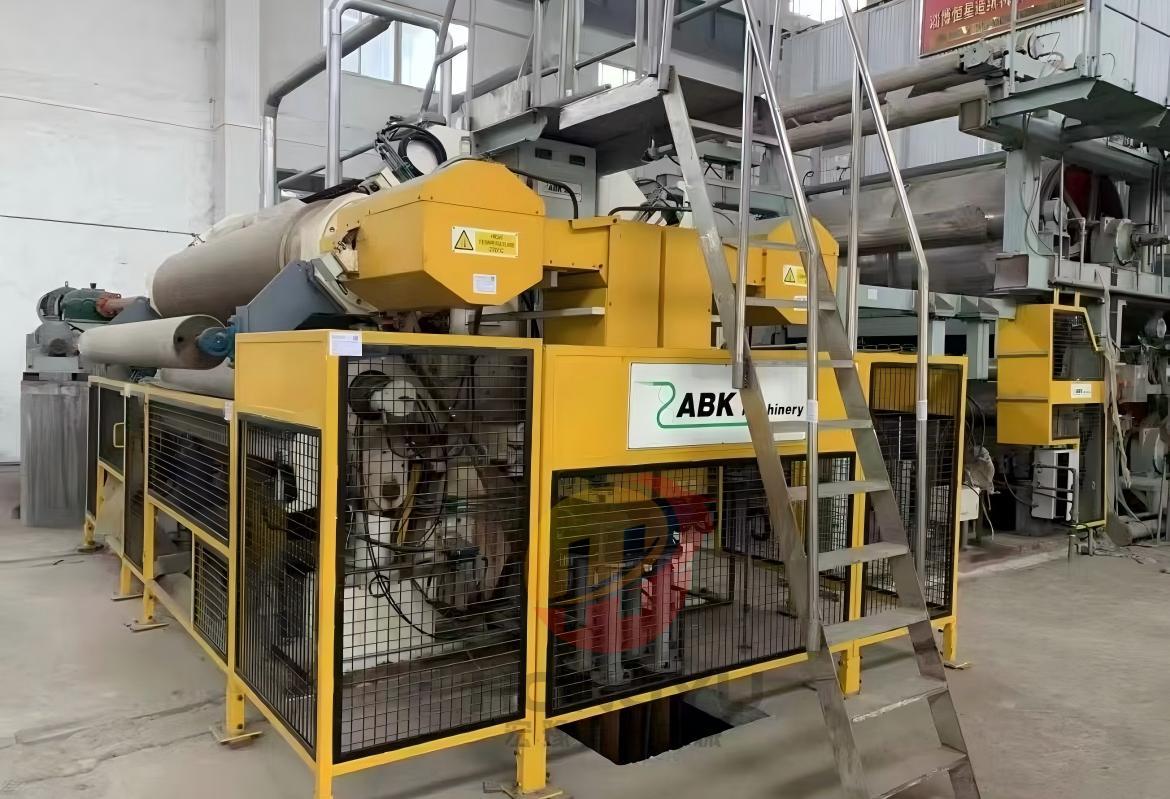

4. Calender Section
- Equipment type: ABK controllable crown two-zone soft calender (France)
- Roll specifications: Ø660 / Ø465 mm (face width 2950 mm)
- Roll surface: Covered with composite material (ensures paper smoothness)
5. Measurement & Control System
- Moisture measuring system: Honeywell (high-precision quality monitoring)
6. Reel Section
- Maximum reel diameter: Ø2200 mm

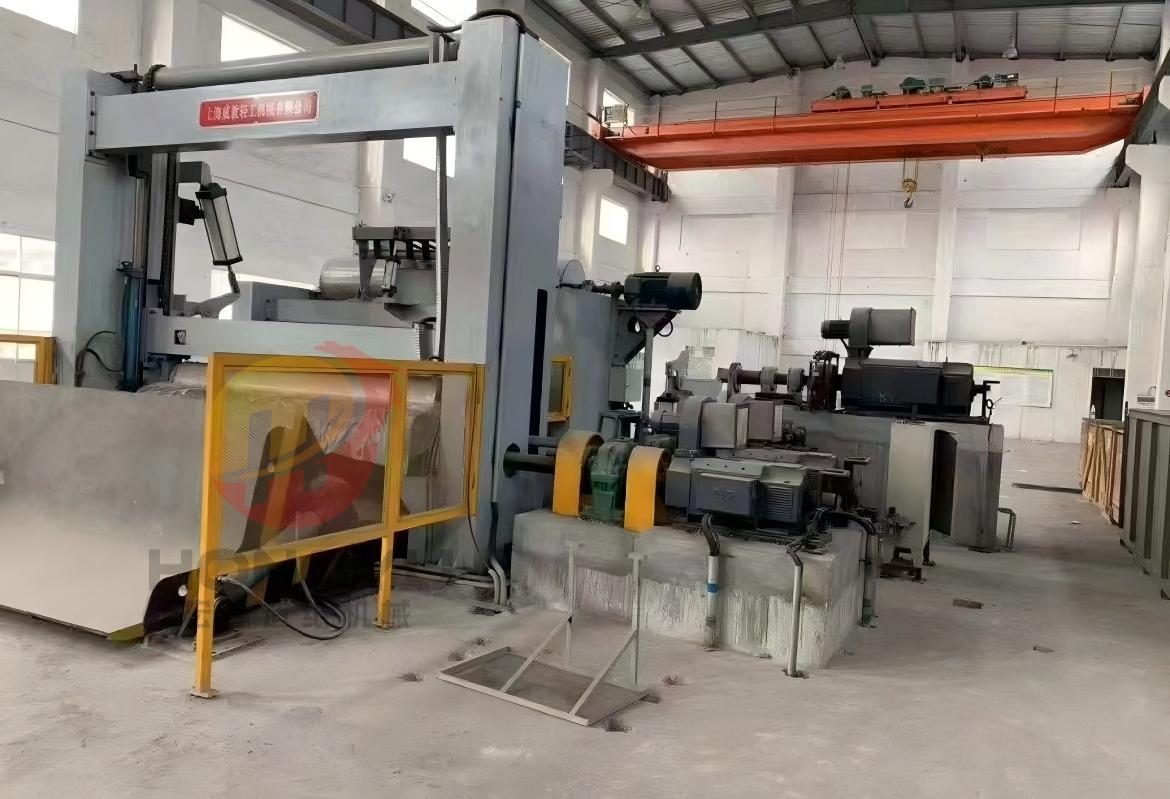

7. Rewinder
- Type: Bottom draw rewinder
- Operating speed: 1600 m/min
Equipment Advantages
- Complete production line: Covers all processes from forming to finishing (no need for additional matching)
- High-quality imported components: ABK headbox/shaking device/calender, Honeywell moisture system (reliable performance)
- Suitable for decorative base paper: Optimized configuration matches product quality requirements
- High rewinder speed: 1600 m/min (improves post-production efficiency)
