This paper machine, produced by Shangzao, is fully in place with complete supporting parts and is a right-hand paper machine. Its detailed configurations are as follows:
- Rewinding Equipment:
-
- Frame rewinder (vehicle speed: 1200 meters)
-
- Horizontal winder
- Calendering Equipment:
Two-roll calender (roll diameter: 700mm)
- Drying Section:
Equipped with 72 drying cylinders (diameter: 1800mm, working surface: 4800mm), adopting closed gear box to drive cylinder transmission.
- Sizing Machine:
Roller diameter: 900mm
- Press Section:
-
- Three blind hole presses (diameter: 1320mm each)
-
- One vacuum press (diameter: 1350mm)
- Wire Part:
Five-fold wire structure, with the bottom wire length of 52 meters, and the other wires include two 12-meter ones and two 8-meter ones.
- Headbox:
Xi’an Via Air Cushion Headbox, lip width: 4650mm
- Transmission Mode:
Frequency conversion divisional transmission (equipped with ABB inverter)
- Key Components:
-
- Dehydration element: Stainless steel box with ceramic panel
-
- Machine frame: Covered with stainless steel
-

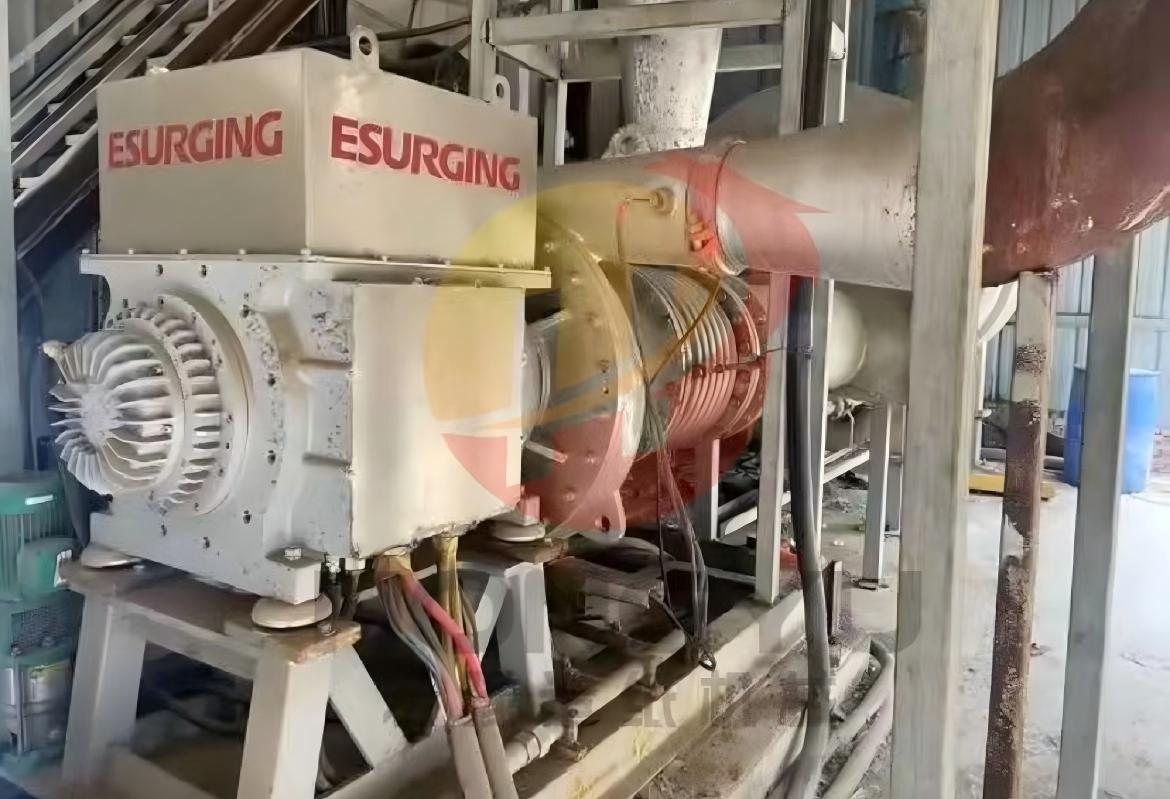

- Auxiliary equipment: Tianjin Feixuan 300KW Maglev Fan
