Technical Specification List

• Equipment Type: 4600mm Fourdrinier Multi-Cylinder Paper Machine
• Fourdrinier Section: 20m in length, equipped with an air-cushion headbox
• Suction Roll: One vacuum suction roll
• Press Sections: Two high-diameter blind-hole press sections with a roll diameter of 1.5m
• Dryer Cylinders: Dryer cylinders (Φ1800×5050) – 24 dryer cylinders + 3 Yankee cylinders + size press (Φ1300) + rear 12 dryer cylinders, totaling 39 dryer cylinders
• Reel: One roll store type reel
• Slitter Rewinder: One 1500m down-winding slitter rewinder
• Headbox System: One complete headbox flow delivery system

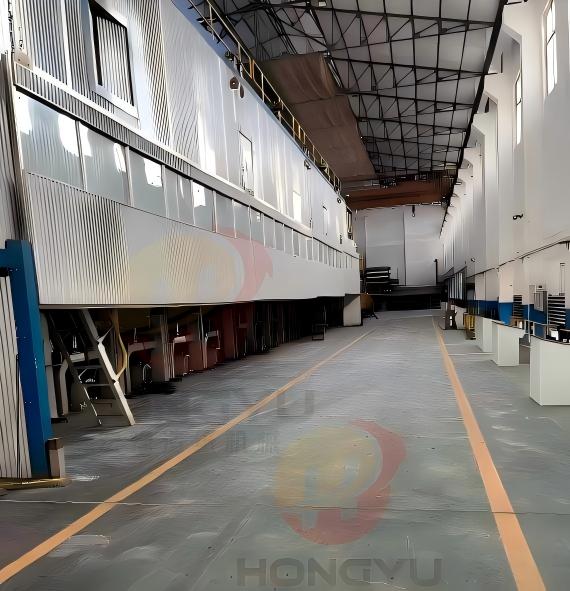

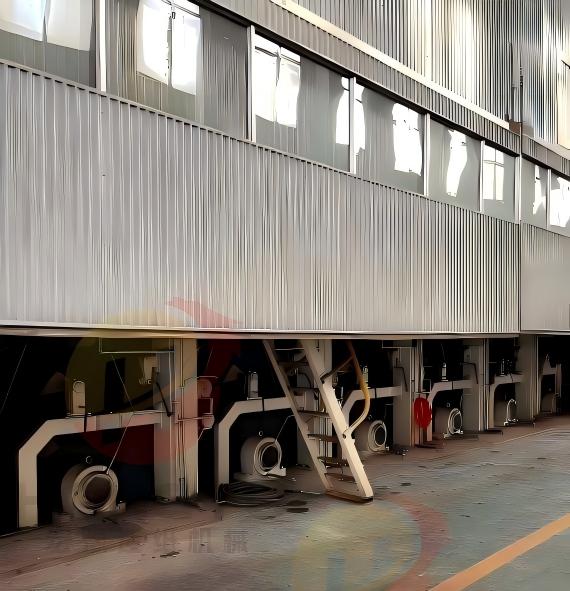

• Air-Conditioning & Hood: Three turbofans and a closed hood
• Power System: Complete set of motors and frequency converters
