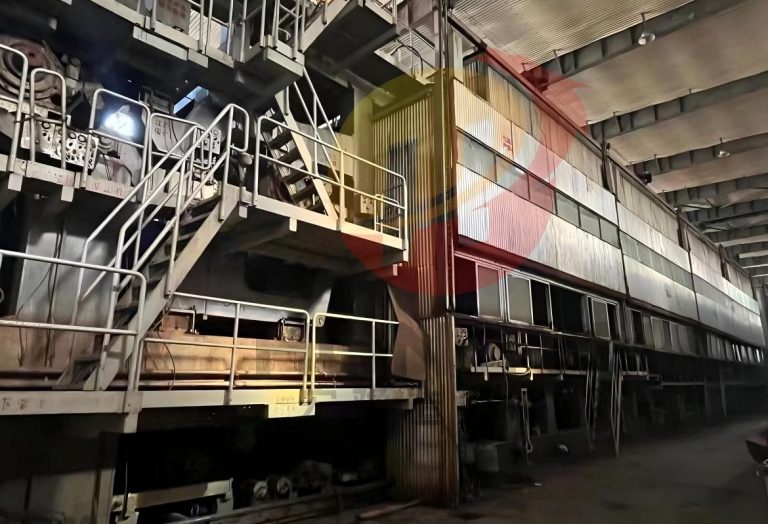

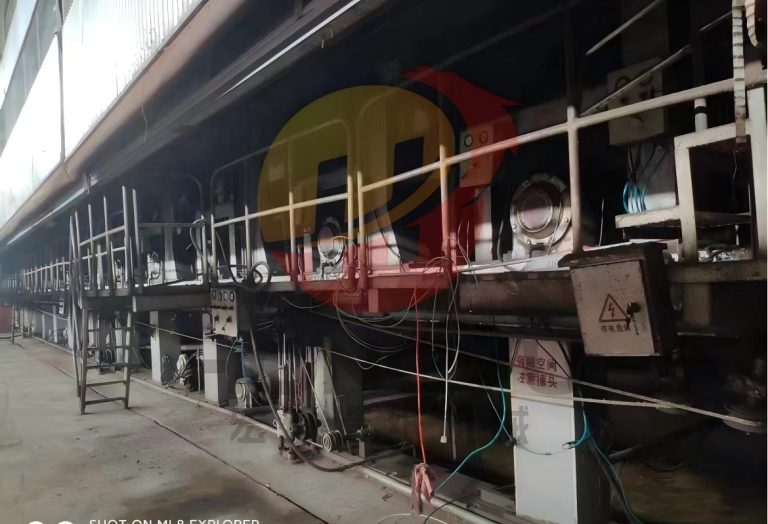

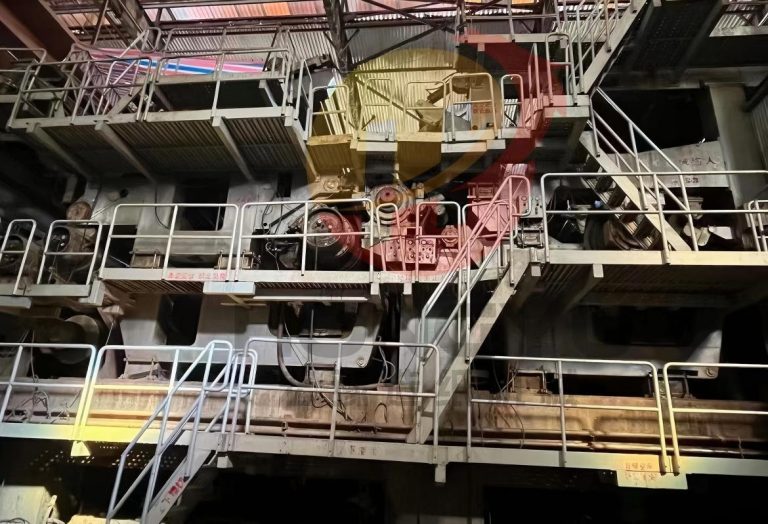

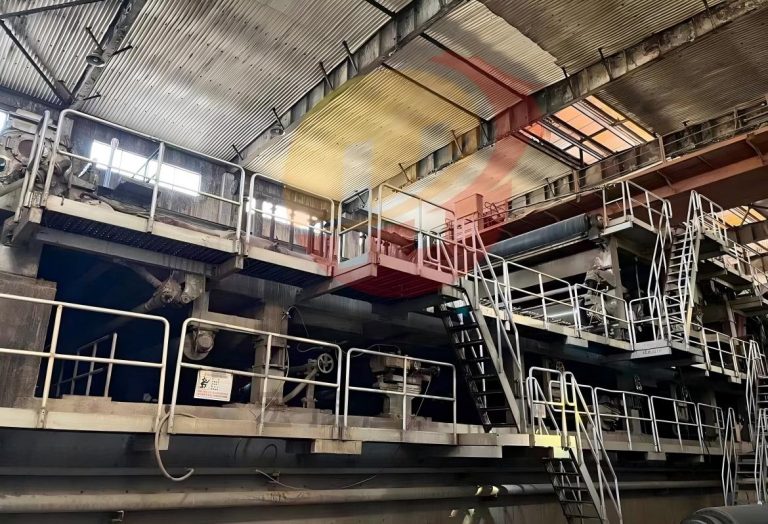

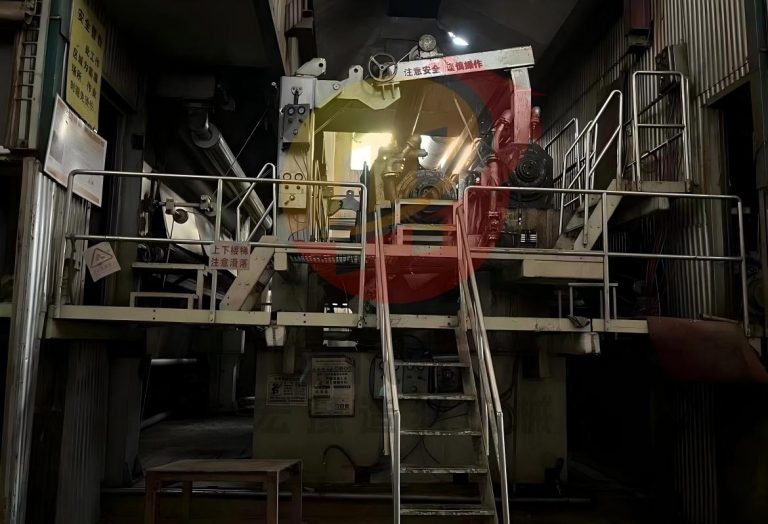

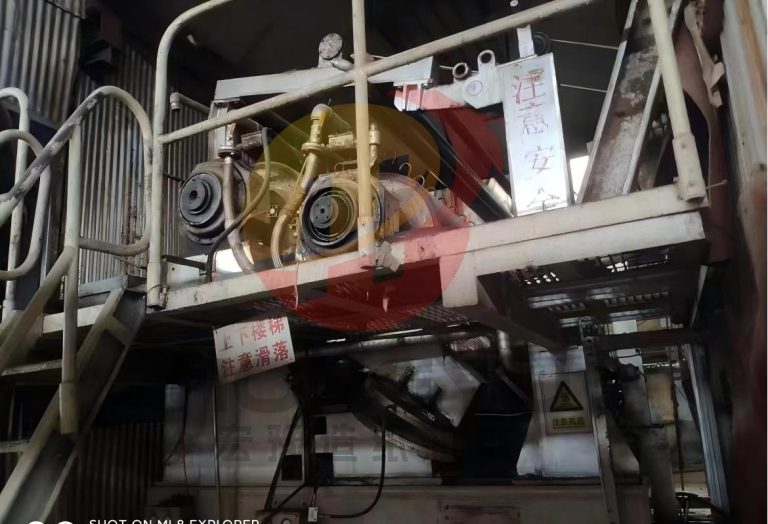

Used 4600/500 two-wire four-roller three-press multi-cylinder paper machine (right hand) for high-capacity paper production with stable operation and consistent sheet quality

Basic Information

  • Manufacturer: Jiaozuo Chongyi Light Industry Machinery Co., Ltd.
  • Production Year: 2014
  • Applicable Paper Grades: High-strength corrugated paper, T paper (60-200g/m²), kraft paper, liner paper
  • Design Speed: 500 m/min
  • Working Speed: 500 m/min
  • Capacity: 400-500 TPD

Equipment Configuration Details

1. Double Fourdrinier Wire Section

  • Wire Table Length: 21.5 + 7 m
  • Air Cushion Type Headbox: 2 sets (produced by Meichen, lip width 4900 mm)
  • Dewatering Element: Stainless steel box + ceramic panel; frame covered with stainless steel
  • Breast Roller: φ700×5200 mm
  • Vacuum Couch Roll: φ900×5250 mm
  • Drive Roller: φ800×5200 mm
  • Steering Roller: φ700×5200 mm
  • Composite Roller: φ800×5200 mm
  • Guide Roller: φ400×5200 mm

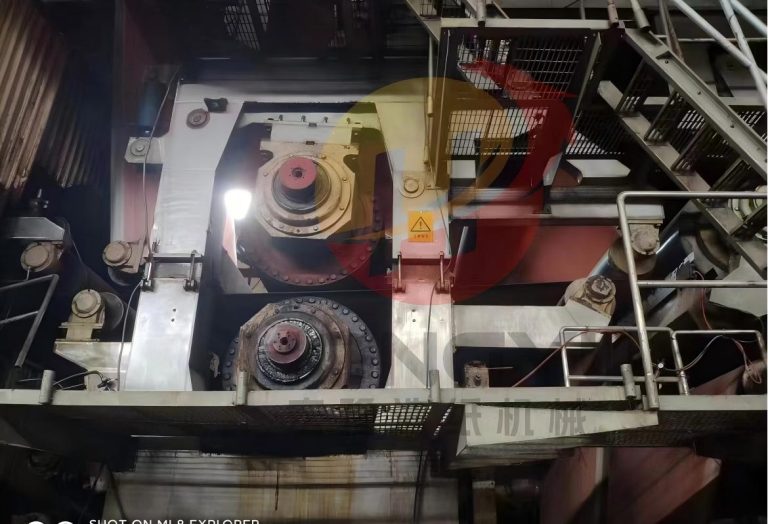

2. Press Section (Four-Roller Three-Press + Positive Pressure)

(1) Four-Roller Three-Press Configuration
  • Vacuum Suction Roller: φ600×5200 mm
  • Vacuum Press Roll: φ1000×5150 mm
  • Press Upper Roll: φ950×5100 mm
  • Center Roll: φ1200×5100 mm
  • Press Lower Roll: φ950×5100 mm
(2) Positive Pressure Configuration
  • Press Upper Roller: φ1200×5100 mm
  • Press Lower Roll: φ950×5100 mm
  • Frame covered with stainless steel

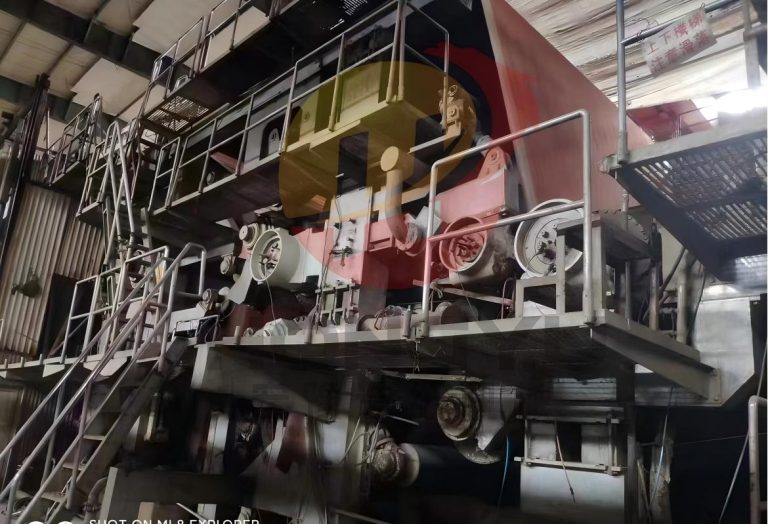

3. Drying Section (Arrangement: 1+3/3+3/3+8+8+S+12)

  • Drying Cylinders: Φ1800×5050 mm (rope groove for cylinder head), 35 pieces (5 pieces per set, working pressure 0.5Mpa, 10 of which are chrome-plated)
  • UNO Cylinders: Φ1500×5050 mm (rope groove for cylinder head), 6 pieces, cylinder surface grooved
  • Transmission Mode: Single-point small gear box transmission for drying cylinders, thin oil lubrication
  • Operation side frame covered with stainless steel

4. Other Supporting Equipment

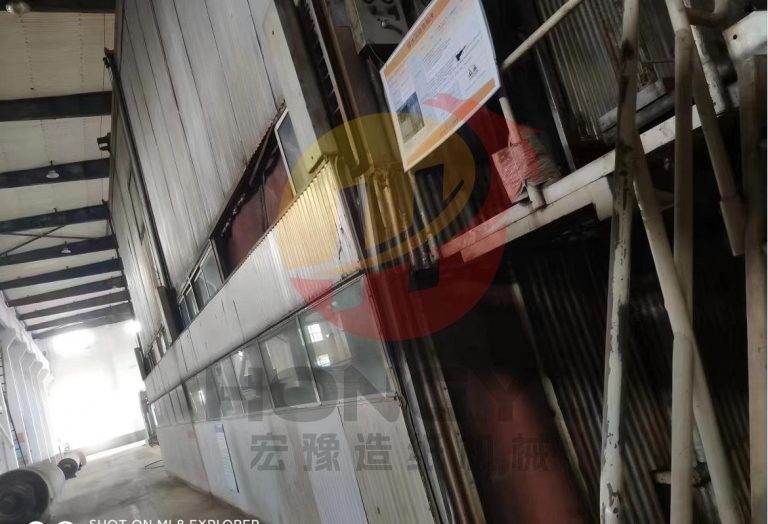

  • Simple Enclosed Hood
  • Inclined Sizing Machine: Sizing roller φ1000/φ1010×4800 mm, with glue system

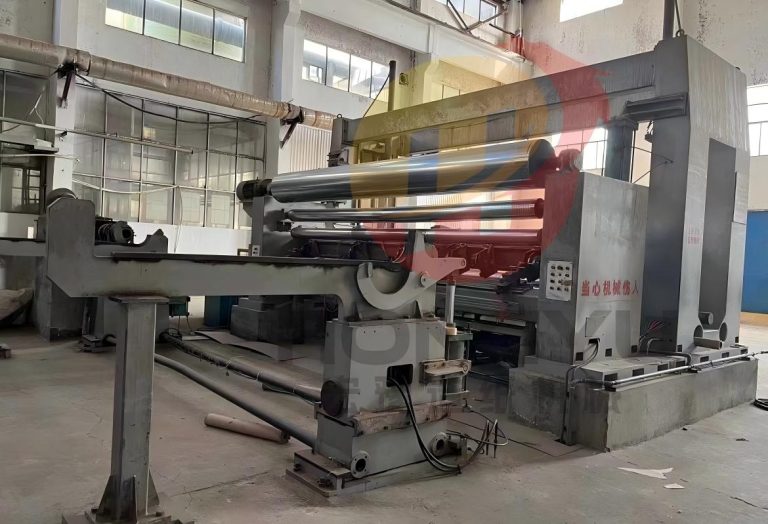

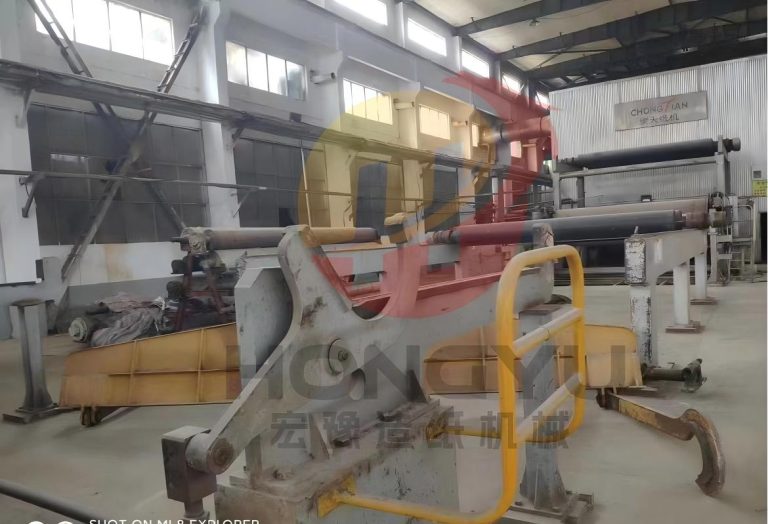

  • Simple Roller Library Type Paper Reel Machine: Paper roll φ520×4800 mm, 8 pieces

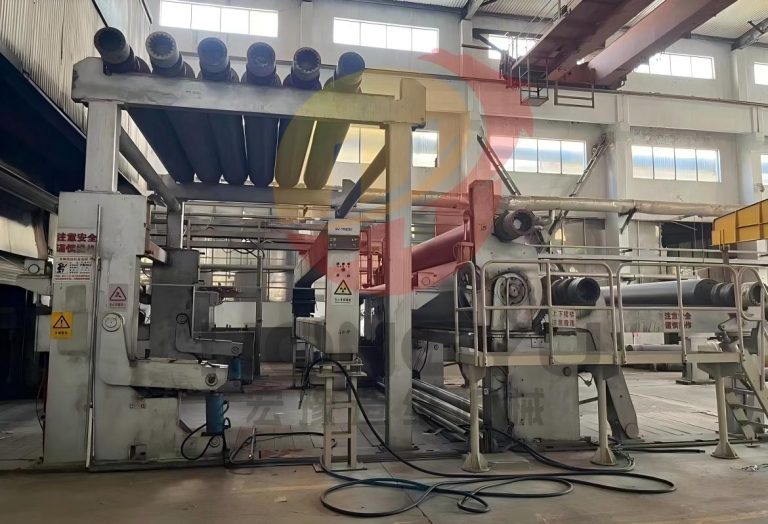

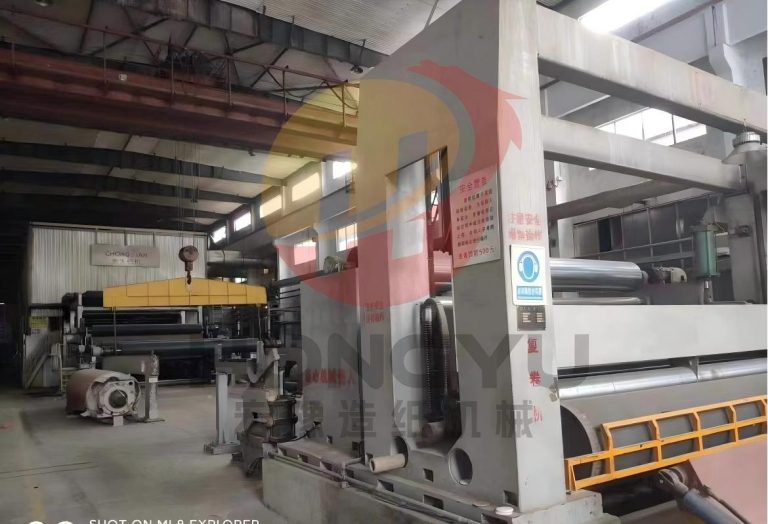

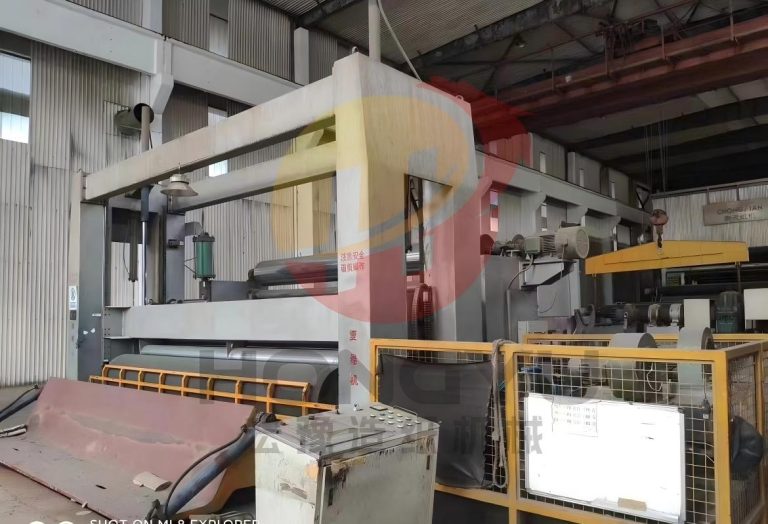

  • Underfeed Winder: Produced by Boshan, working speed 1500 m/min
  • Control System: Full set of ABB control system
  • Scanning Frame: 2 pieces, produced by Shuangyuan Company
  • Turbine Fans: 2 pieces, produced by Hangzhou Zhenxing
  • Auxiliary Equipment: Front flow pressure screen, flushing pump, thin oil station, hydraulic station, double-rope threading system
