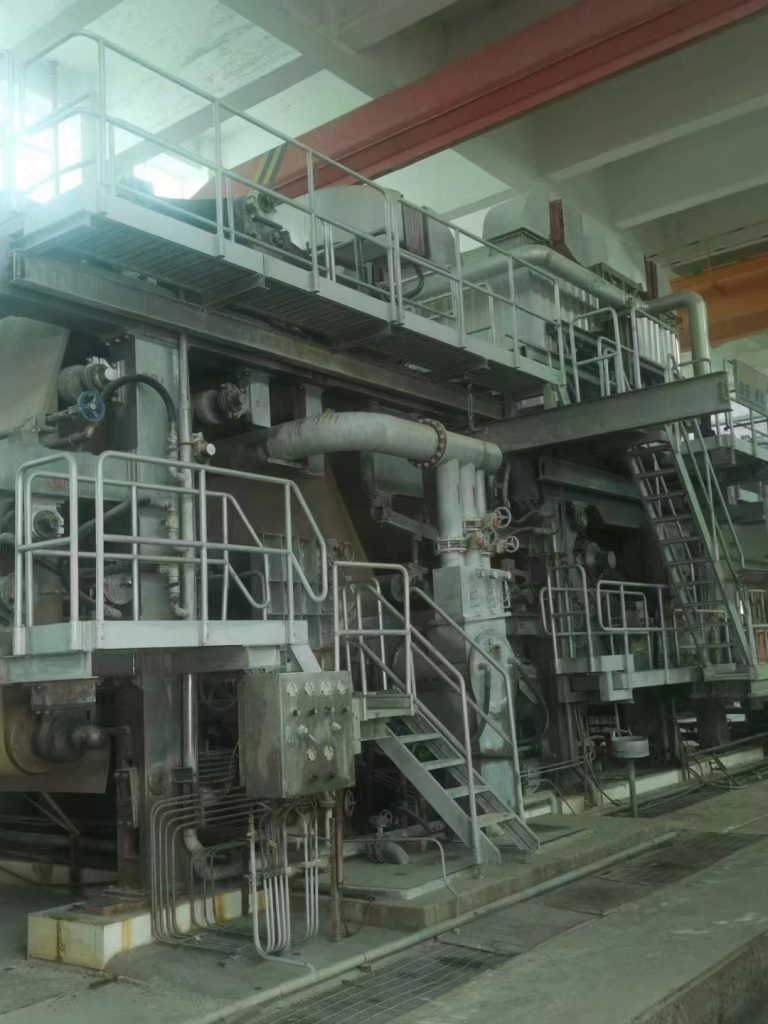

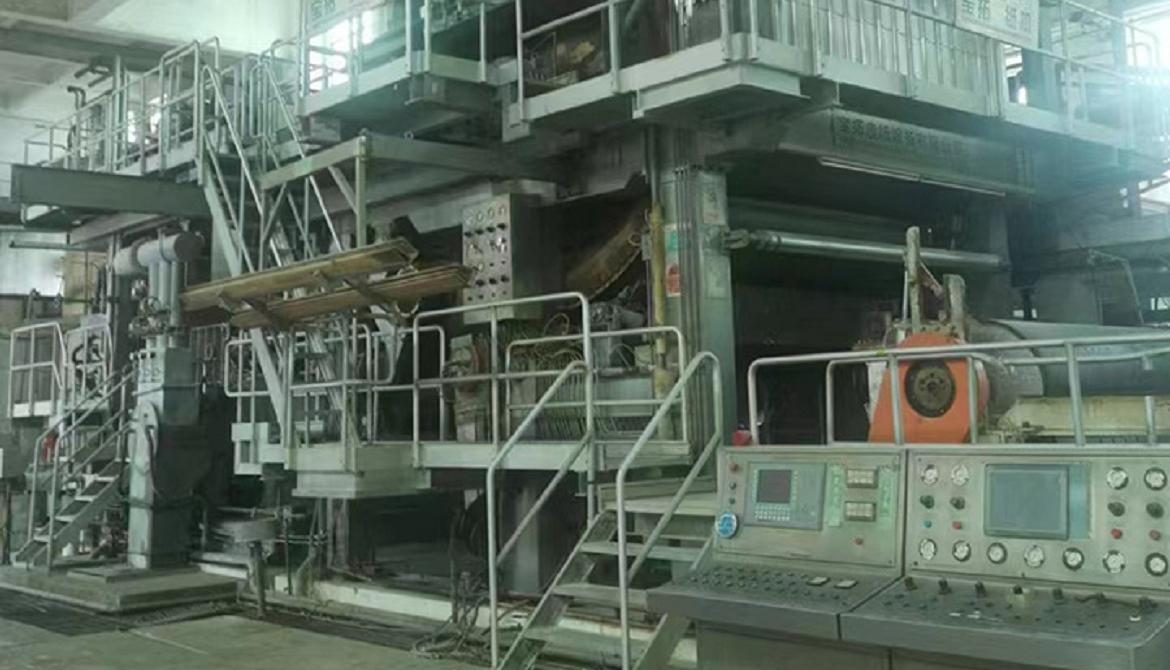

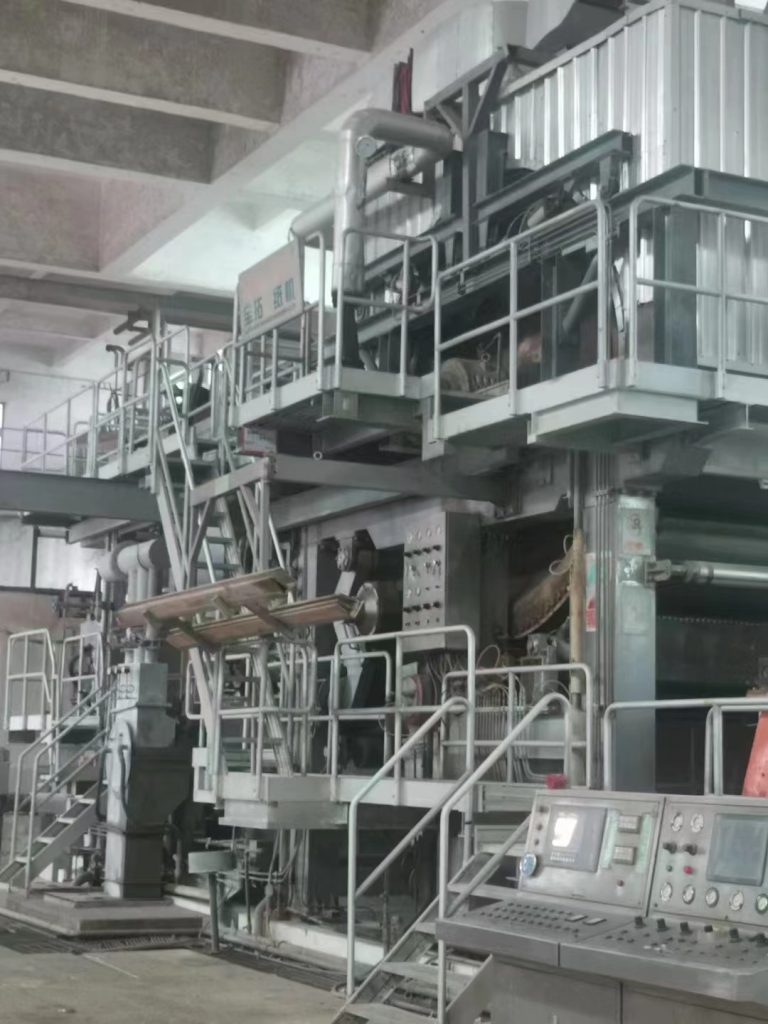

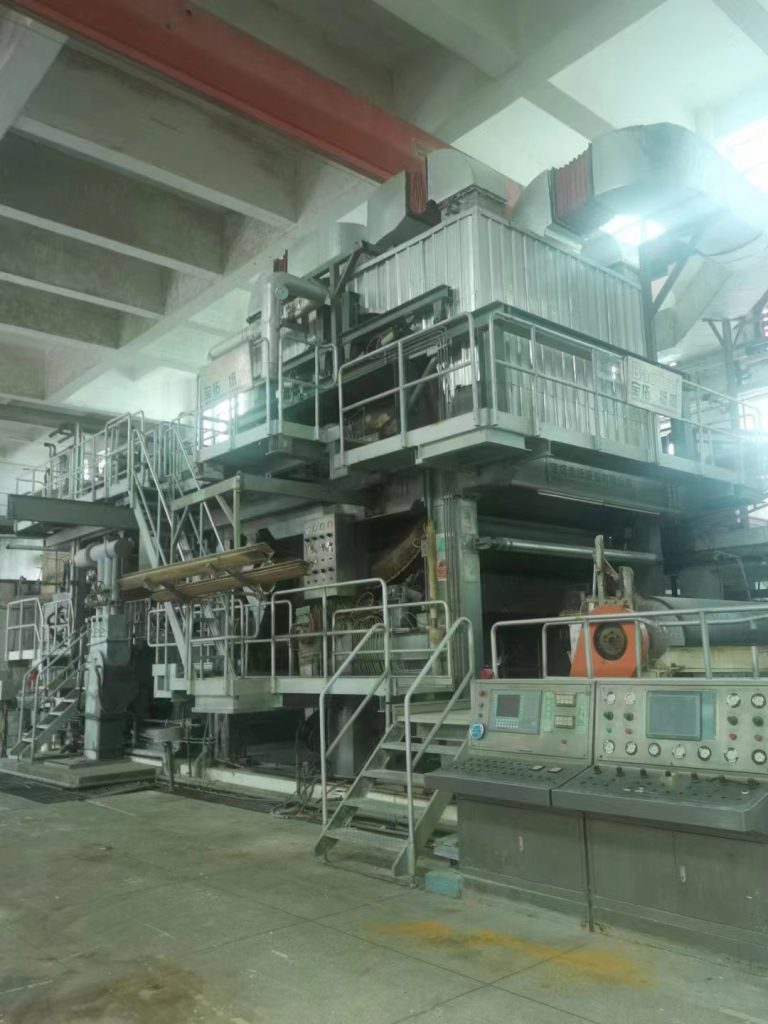

For Sale: One Set of Baotuo 2860/800m Toilet Paper Machine (Manufactured in 2013)

Equipment Configuration & Technical Parameters:

  • Headbox: Japanese-manufactured
  • Forming Roll: Diameter 1200mm
  • Yankee Dryer: Dimensions 3660×3250×3800mm (Note: Standard industry notation for diameter×length×working width, subject to actual technical drawing confirmation)
  • Vacuum Couch Roll: Diameter 850mm
  • Grooved Rubber Roll: Diameter 650mm
  • Felt Guide Roll: Diameter 400mm
  • Horizontal Pneumatic Winder
  • 2㎡ Pressure Screen: Imported from Japan (installed before the wire section)
  • Vacuum Pump
  • Agitator (for stock mixing)
  • Lubrication Oil Supply System
  • Breathing Hood: Equipped with supply/exhaust fans and radiators

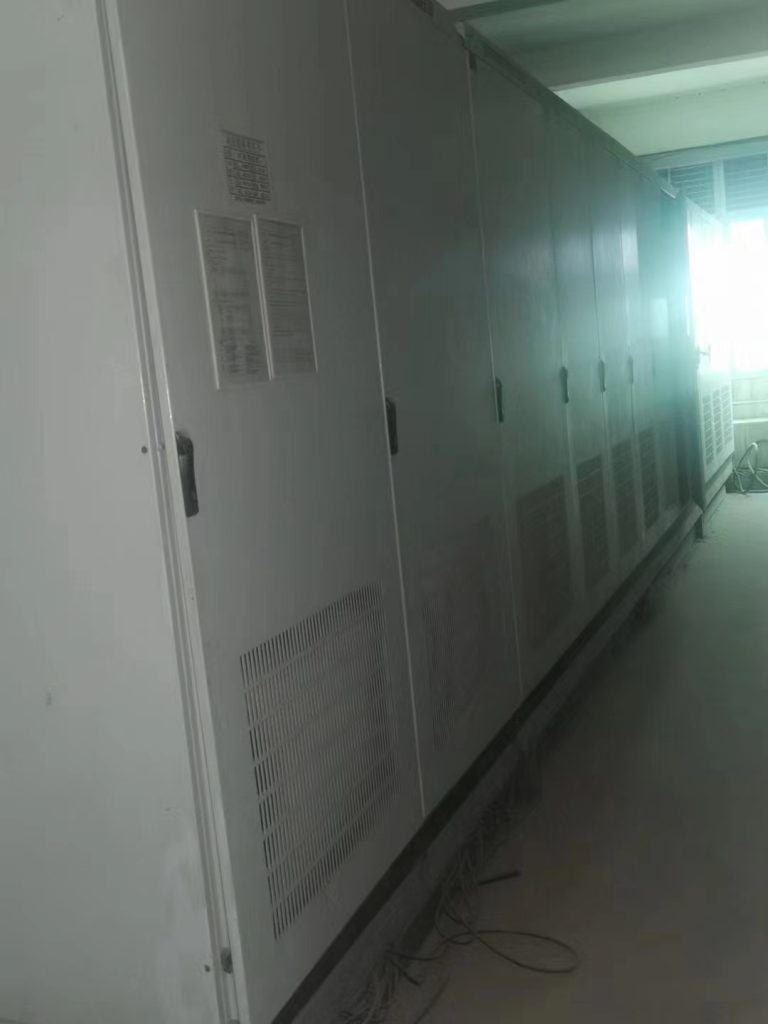

  • Control System: ABB Inverter Motor Control System

Supporting Documents Included:

Complete set of technical documents, including paper machine foundation drawings, installation drawings, and Yankee dryer certification.

Production Capacity:

35-40 tons per day
