Machine Model

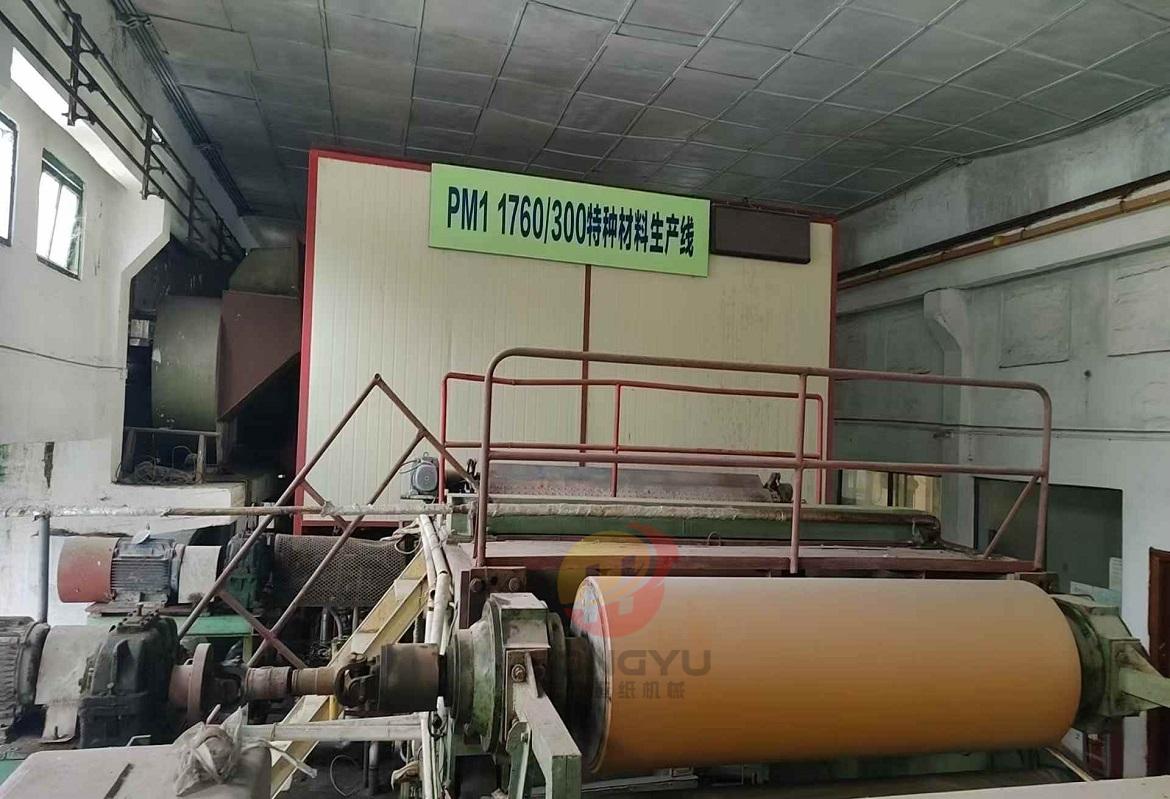

- Used 1760 Fourdrinier Multi-Cylinder Cultural Paper Machine

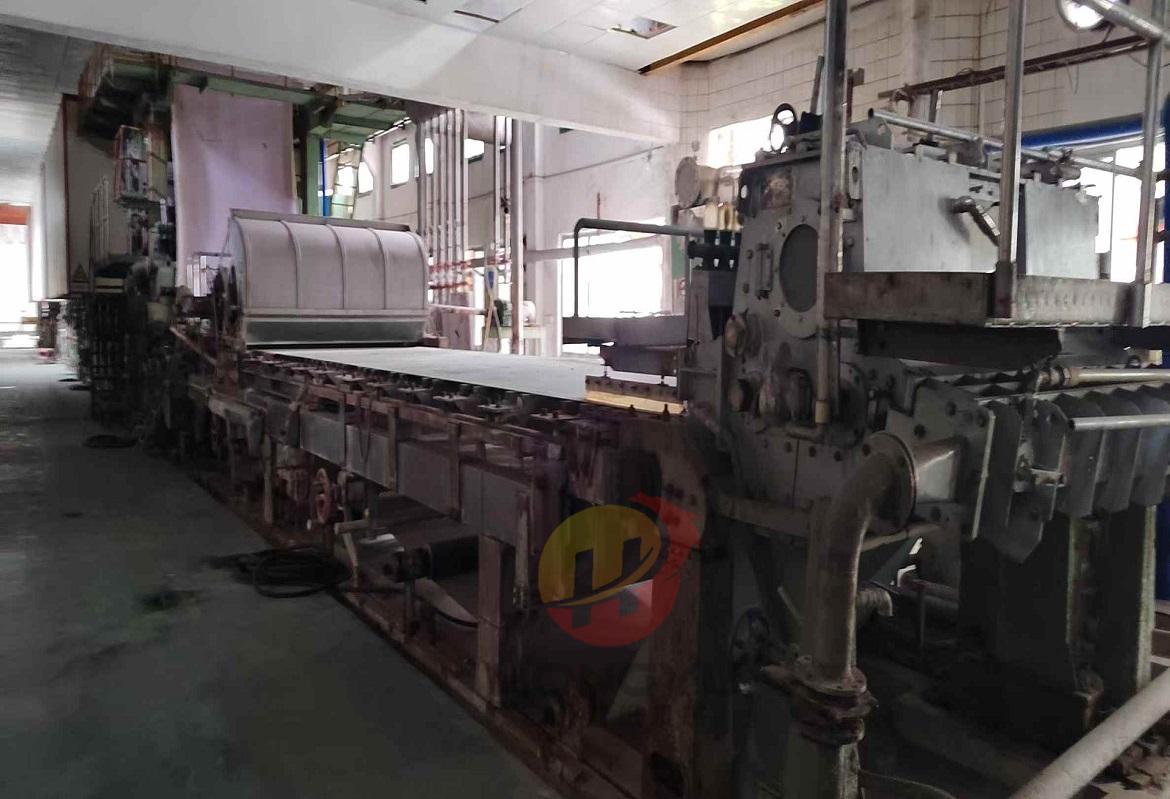

1. Wire Section
- Fourdrinier wire table length: 10.83 meters
- Frame cover: Stainless steel
- Headbox: Air cushion headbox (made by Hangzhou Meichen)
- Additional components: High-frequency shaker
- Dewatering element housing: Stainless steel (with ceramic panels)
- Vacuum couch roll: Diameter φ800mm
- Wire drive roll: Diameter φ550mm

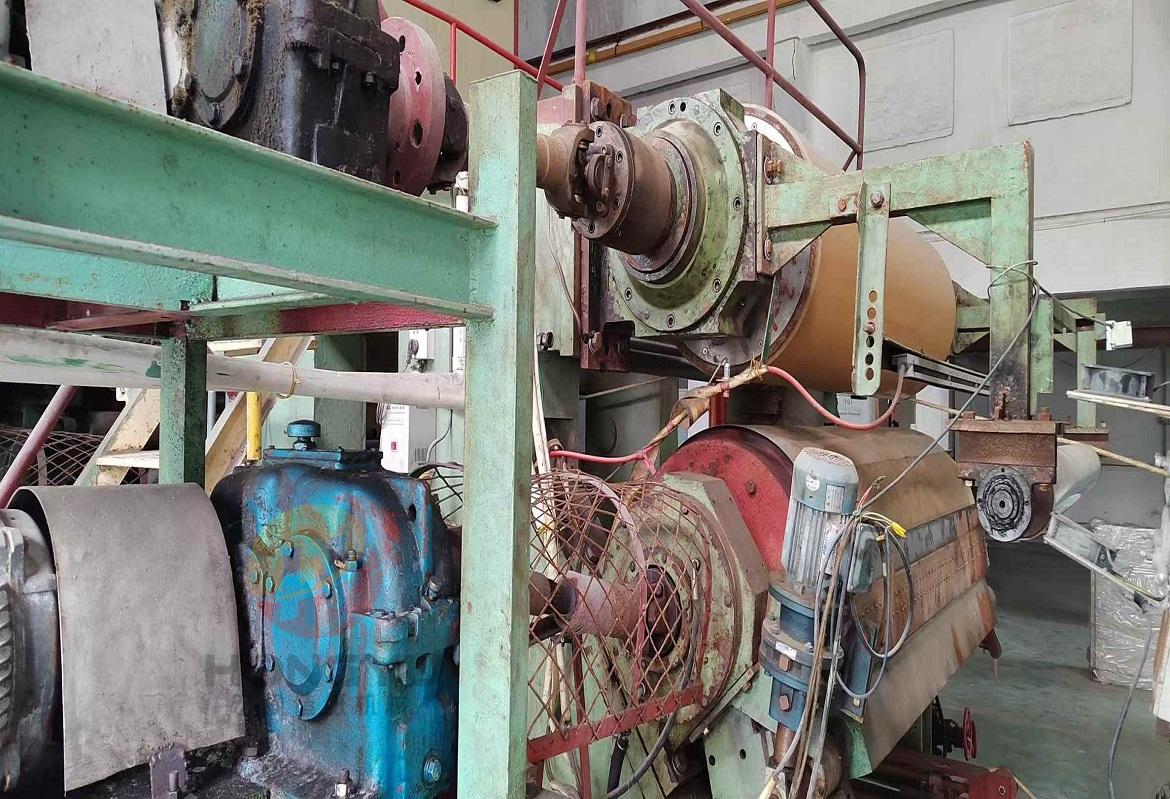

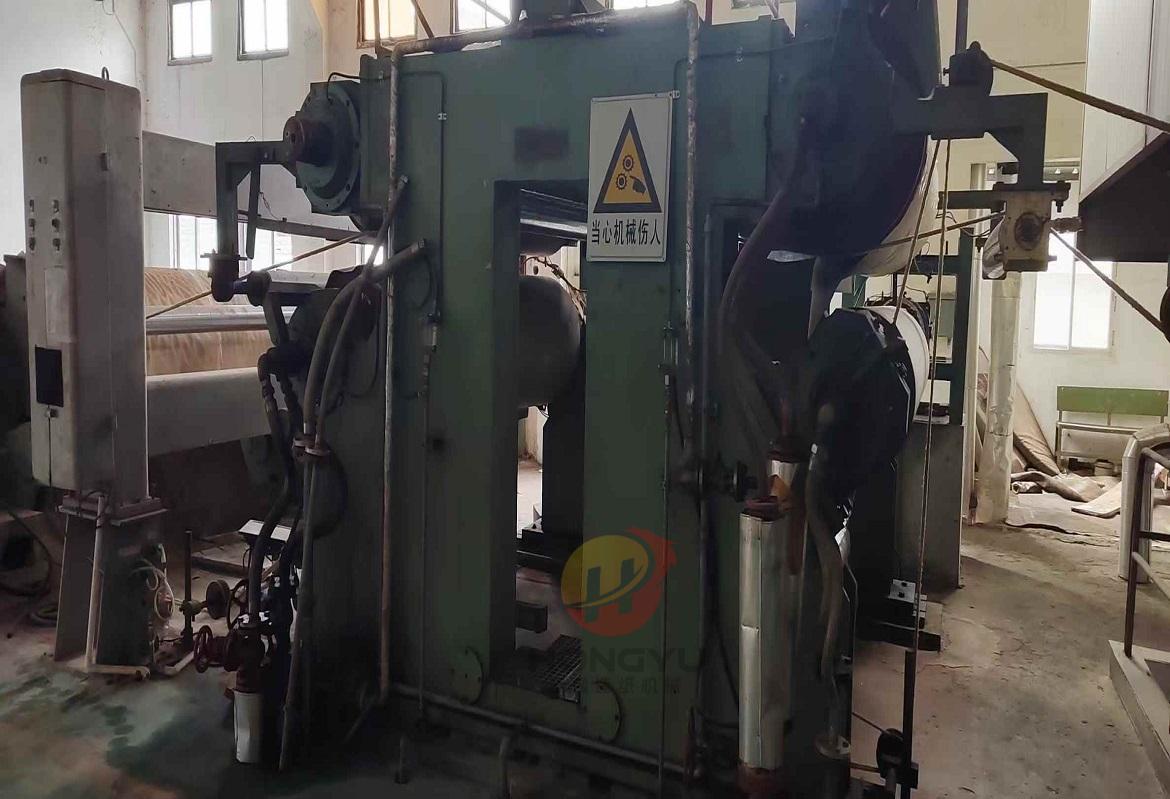

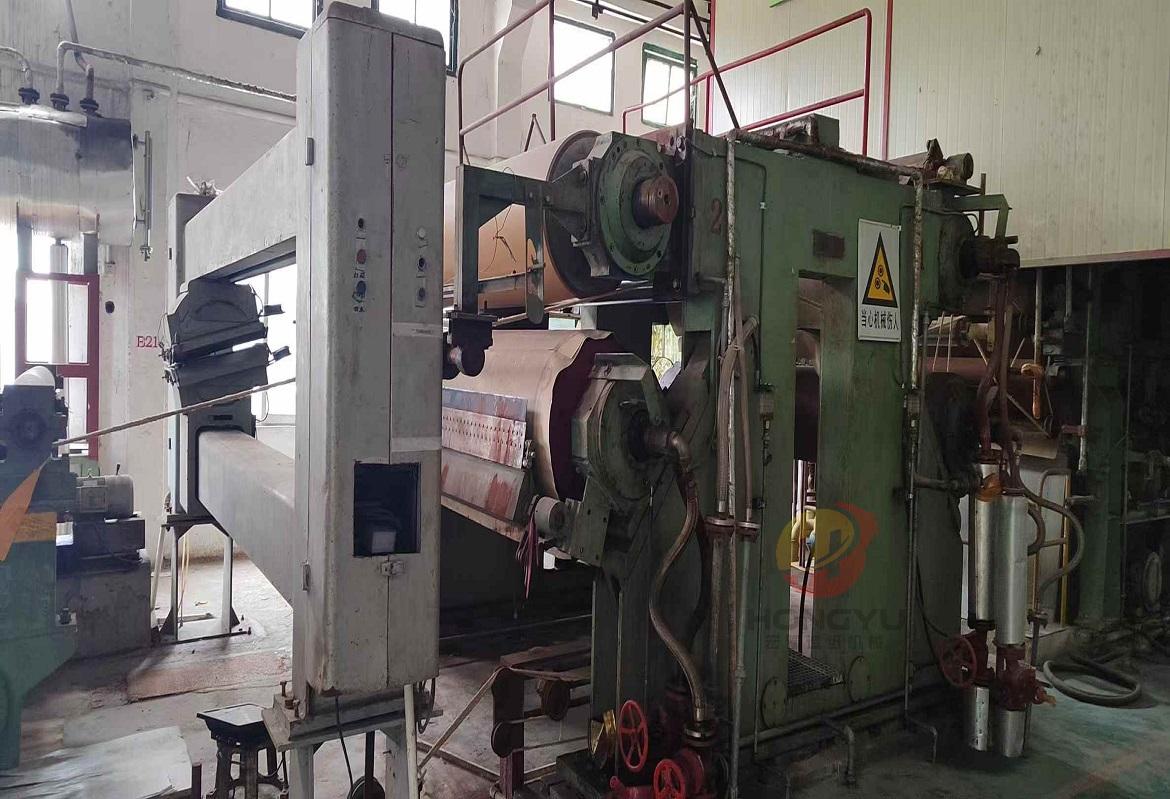

2. Press Section
2.1 Two 4-Roller Presses
- Bottom press roll: φ800 x 2300 x 2900mm
- Vacuum press roll: φ700 x 2300 x 2900mm
- Top glue roll: φ850 x 2300 x 2900mm
- Stone roller: φ900 x 2300mm
2.2 Smoothing Press
- Upper stone roller: Φ900X2300X2900mm
- Lower glue roller: Φ850X2300X2900mm
- Vacuum suction: 1 set (φ550X2320X2900mm)
3. Drying Section
3.1 Drying Cylinders
- Large drying cylinders: 8 sets (Φ1500X2100X2600mm)
- Small drying cylinders: 22 sets (Φ1250X2100X2600mm)
3.2 Finishing & Winding Equipment
- Single-nip soft calender: 1 set
- Double-nip soft calender: 1 set

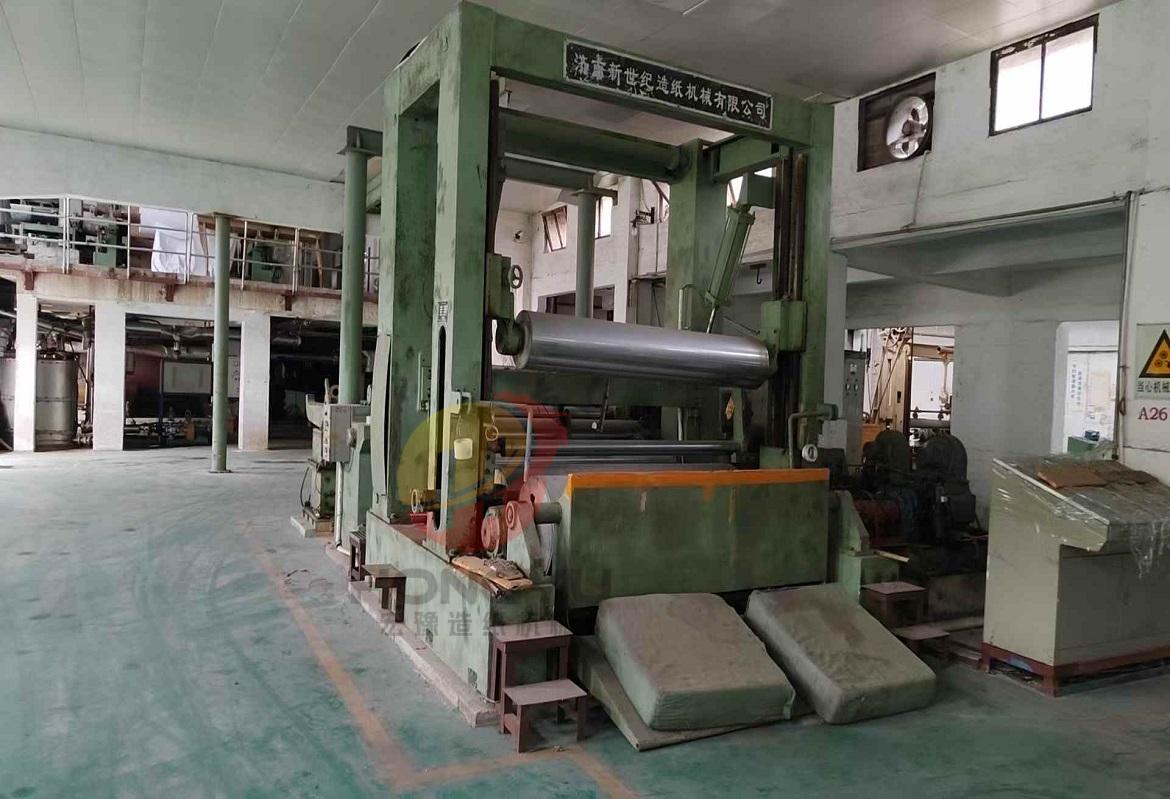

- Horizontal pneumatic winder: 1 set (complete transmission, including speed reducer and motor frequency conversion)
-
- Speed: 280 m/min (with bottom paper rewinder)
3.3 Pulp & Auxiliary Equipment
- Double-disc refiners: 8 units (450 model, with 110Kw motor and electrical cabinet)
- Complete pulp tank propellers and pulp pumps
- High-level boxes and pulp boxes: 1 set
