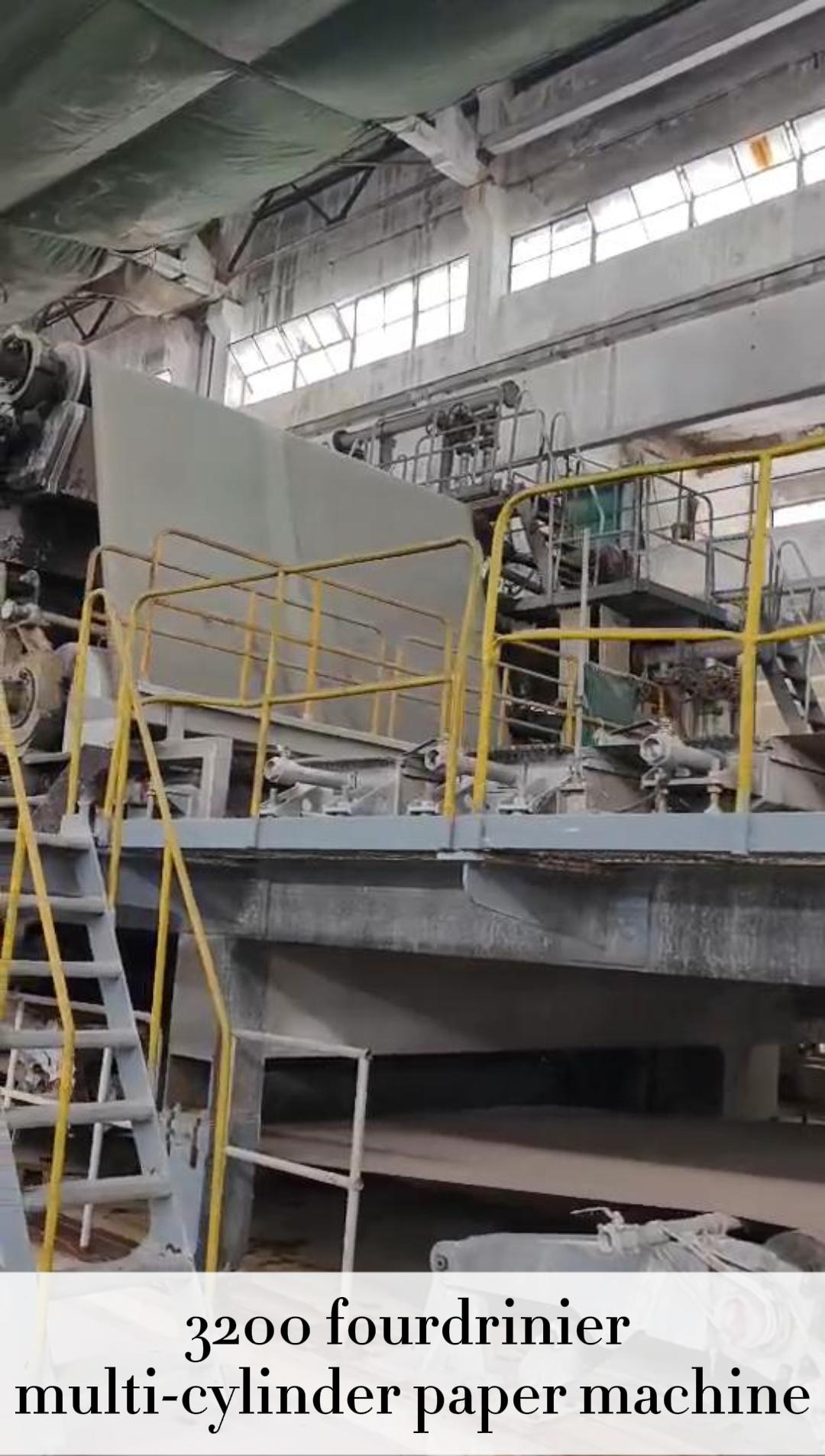

Used : 3200mm Fourdrinier Multi-Cylinder Paper Machine (Right-Hand)

Design Speed: 400m/min

Technical Parameters

Forming Section (Fourdrinier Part)

– Wire length: 16m

– Air-cushion headbox (Hewitt brand), lip opening: 3550mm

– Vacuum couch roll: Φ800mm × 3800mm

– Wire driving roll: Φ750mm × 4300mm

– Dewatering elements: stainless steel construction with ceramic face plates

Press Section

– Two sets of large-diameter blind-hole press rolls: Φ1350/1350mm × 3700mm

Dryer & Sizing Section

– Pre-size press dryer section: 30 sets of dryer cylinders, specification Φ1500mm × 3700mm

– Size press: Φ1350mm × 3700mm

– Post-size press dryer section: 10 sets of dryer cylinders, specification Φ1500mm × 3700mm

Auxiliary Equipment

– 1 set of moisture tester (Gaoda Technology brand)

– 1 set of horizontal reel machine

– 1 set of under-feed rewinder (Hewitt brand)

– Complete vacuum system

– Headbox screen (Andritz brand)

Complete Supporting Systems

Full set of frequency converters, stock flow distribution system, motors, electrical components and integrated control system
