1. Wire Section

• Wire table length: 15.75 m
• Air cushion headbox: Lip opening 3550 mm
• Dewatering elements: Stainless steel with ceramic surface
• Vacuum couch roll: Diameter 850 mm; Effective suction zone 3650 mm

2. Press Section

• First press: Vacuum press roll (diameters 700 mm / 750 mm)
• Second press: Roll diameters 1100 mm / 1100 mm
• Third press: Roll diameters 1300 mm / 1300 mm

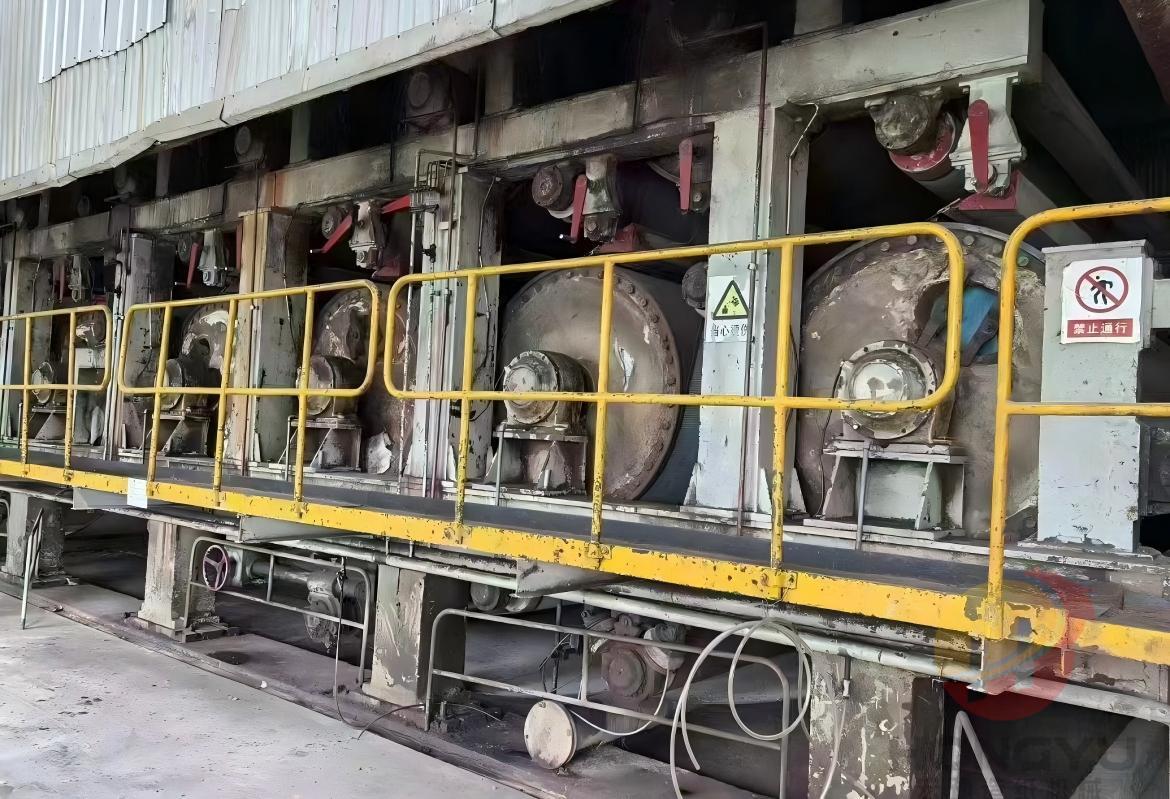

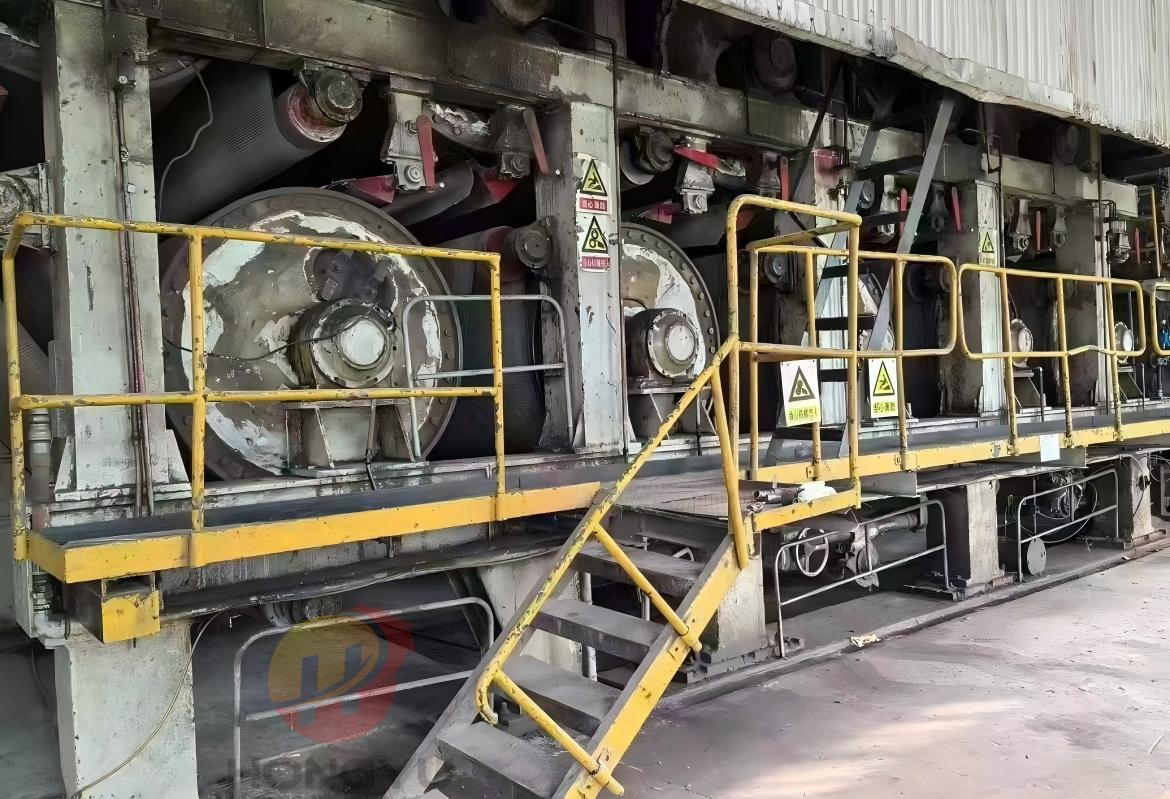

3. Dryer Section

• Drying cylinders: 26 pieces, each 1500 × 3700 × 4150 mm (equipped with enclosed gearbox drive)
• Size press: 1 unit, roll diameters 600 mm and 650 mm

4. Other Equipment

• 1 scanner
• 1 horizontal reel
• 1 frame-type rewinder

5. Production Capacity
