Basic Information

• Year of Manufacture: 2015
• Manufacturer: Henan Yiji Machinery
• Design Speed: 200 m/min
• Product Range: 60–90 gsm high-strength corrugated base paper and kraft linerboard

1. Forming Section (Twin-Wire Section)

• Bottom Wire:Wire Length: 18 meters
• Open-type headbox with stainless steel lining
• Headbox Lip Width: 3800 mm
• Stainless steel dewatering elements
• Breast Roll & Drive Roll Diameter: 650 mm
• Vacuum Couch Roll Diameter: 800 mm
• Top Wire:Wire Length: 7.5 meters
• Open-type headbox with stainless steel lining
• Headbox Lip Width: 3800 mm
• Composite Roll Diameter: 800 mm
• Breast Roll & Drive Roll Diameter: 650 mm
• Stainless steel dewatering elements

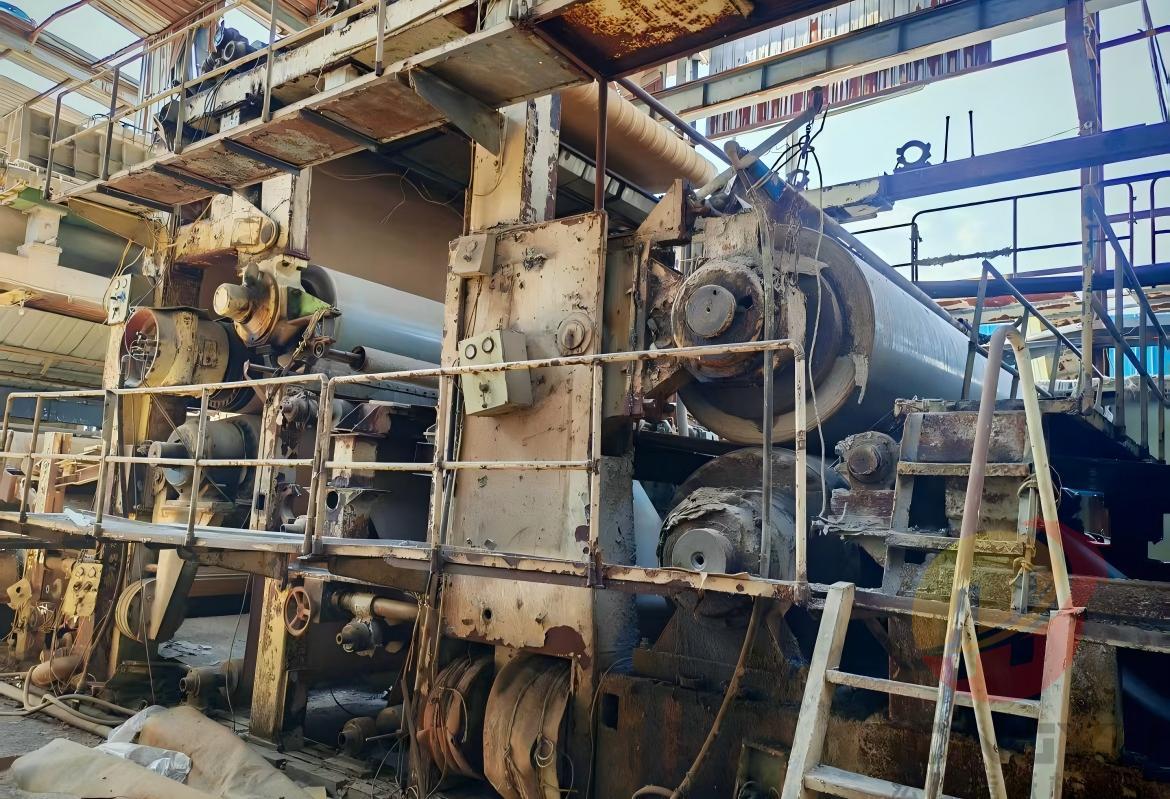

2. Press Section

• First Press: K-type press – Roll diameters 750 / 750 / 800 mm
• Second Press: Large roll – Diameter 1050 mm
• Roll Surface: 11038504350 mm

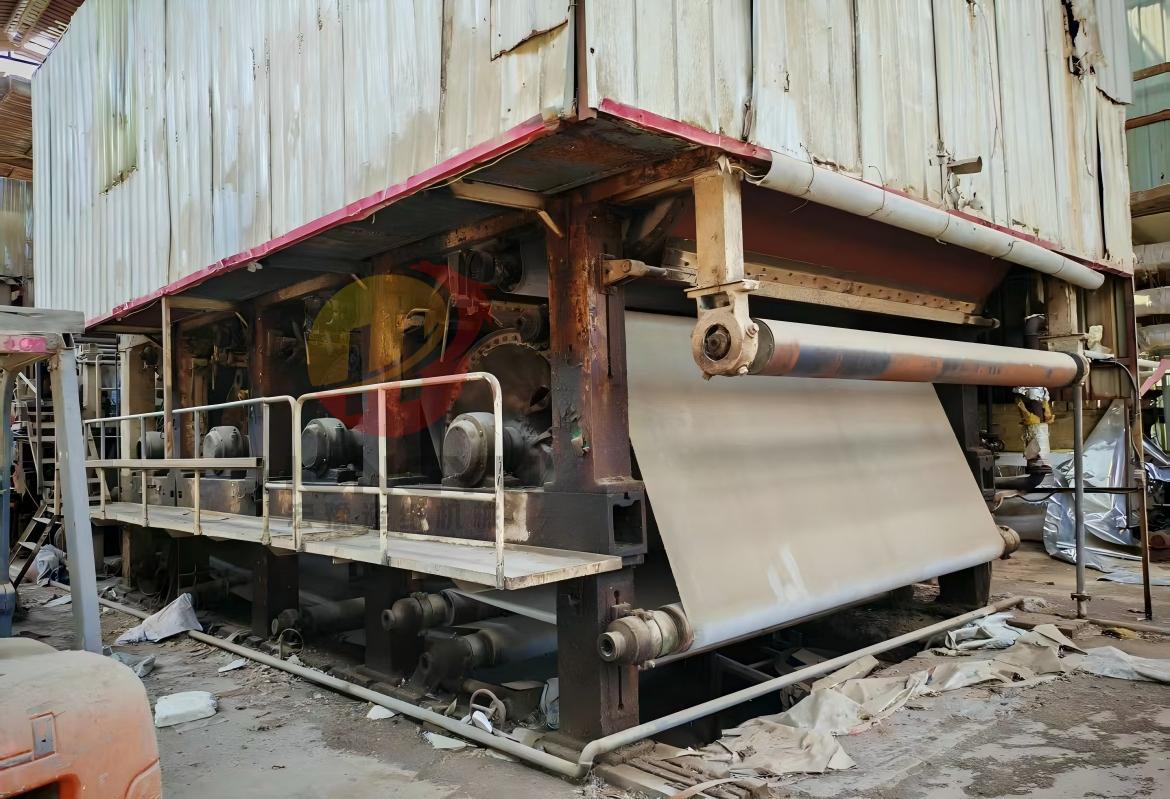

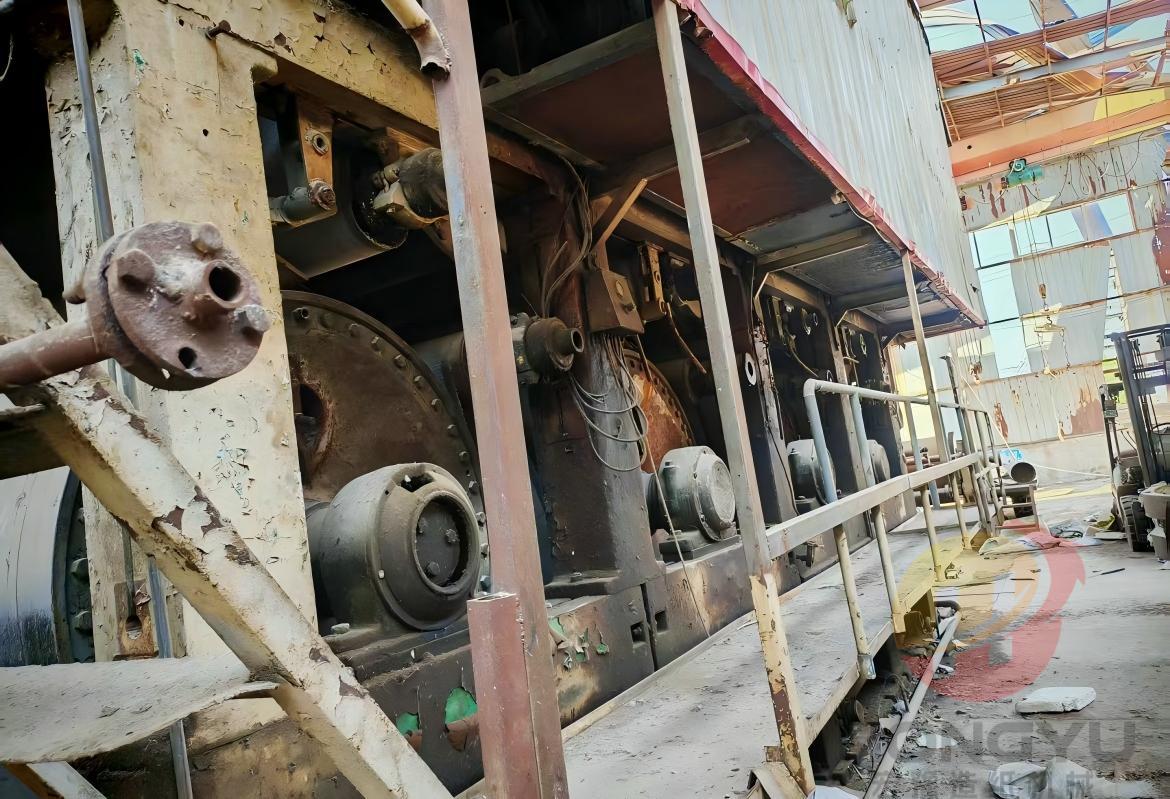

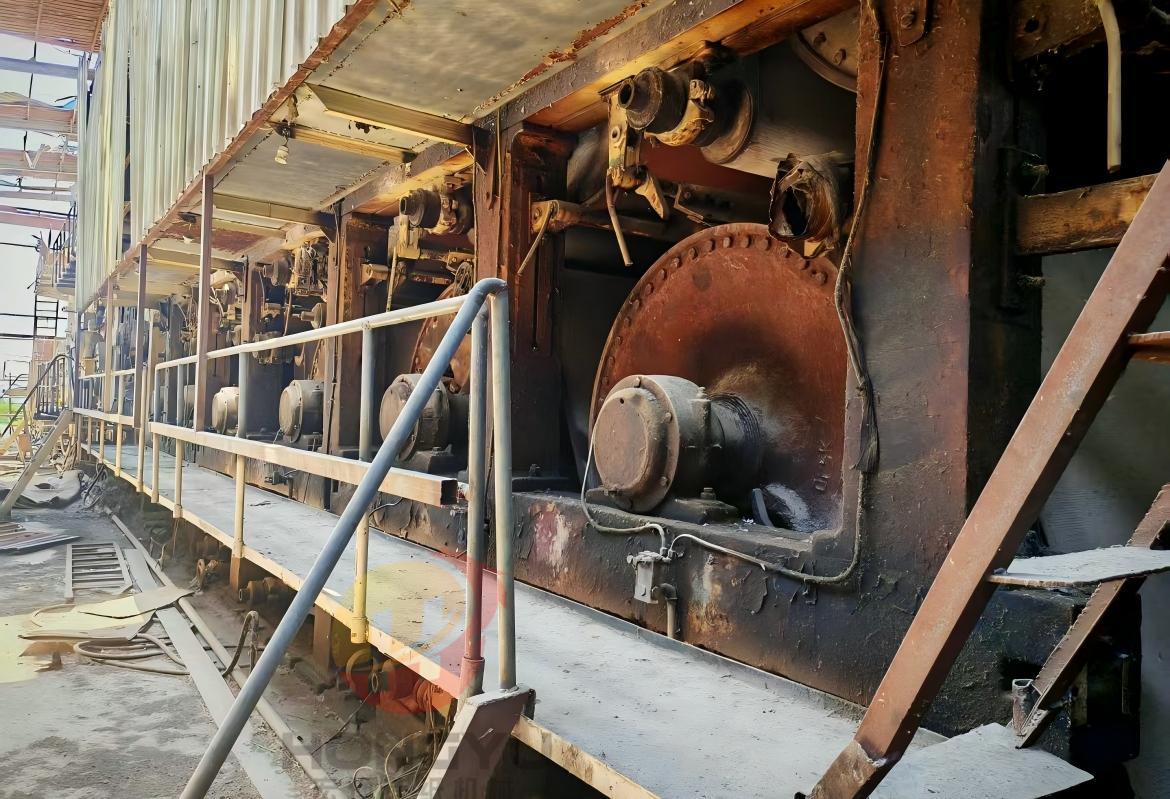

3. Dryer Section

• Pre-Size Press Dryers:12 Groups of Dryers
• Dryer Cylinder Size: 1500×3850×4300 mm
