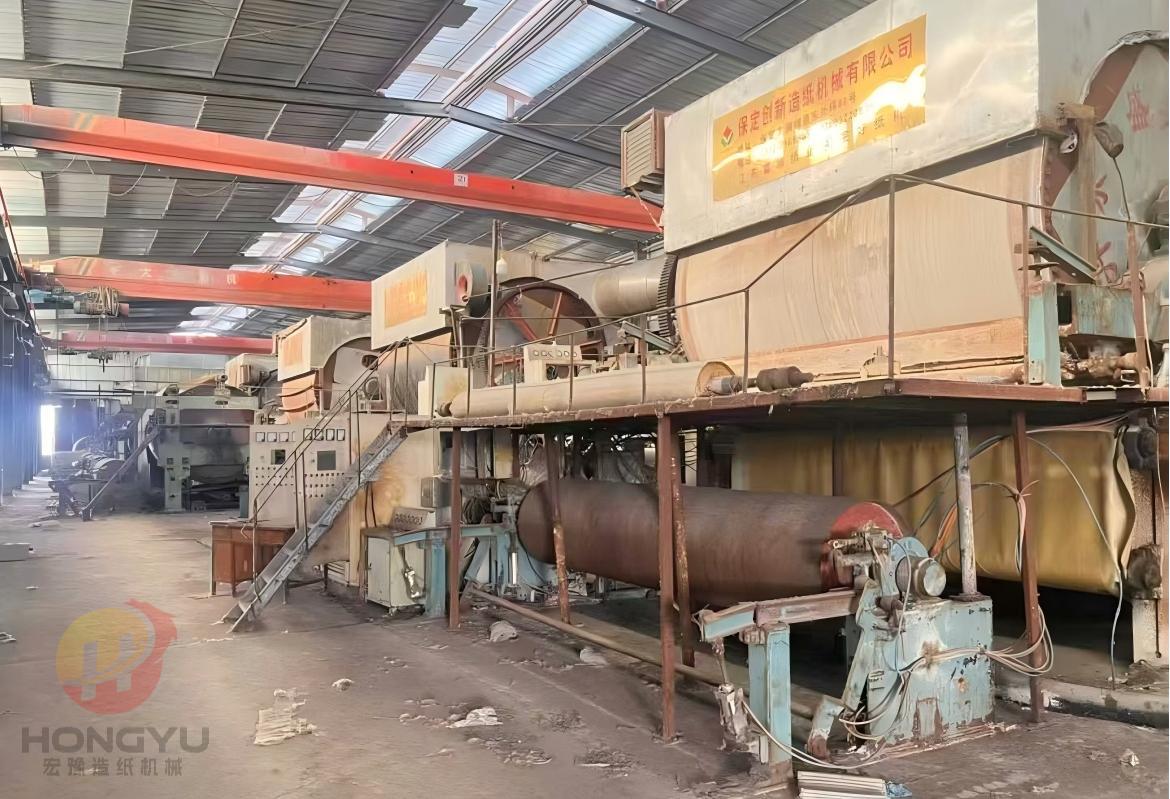

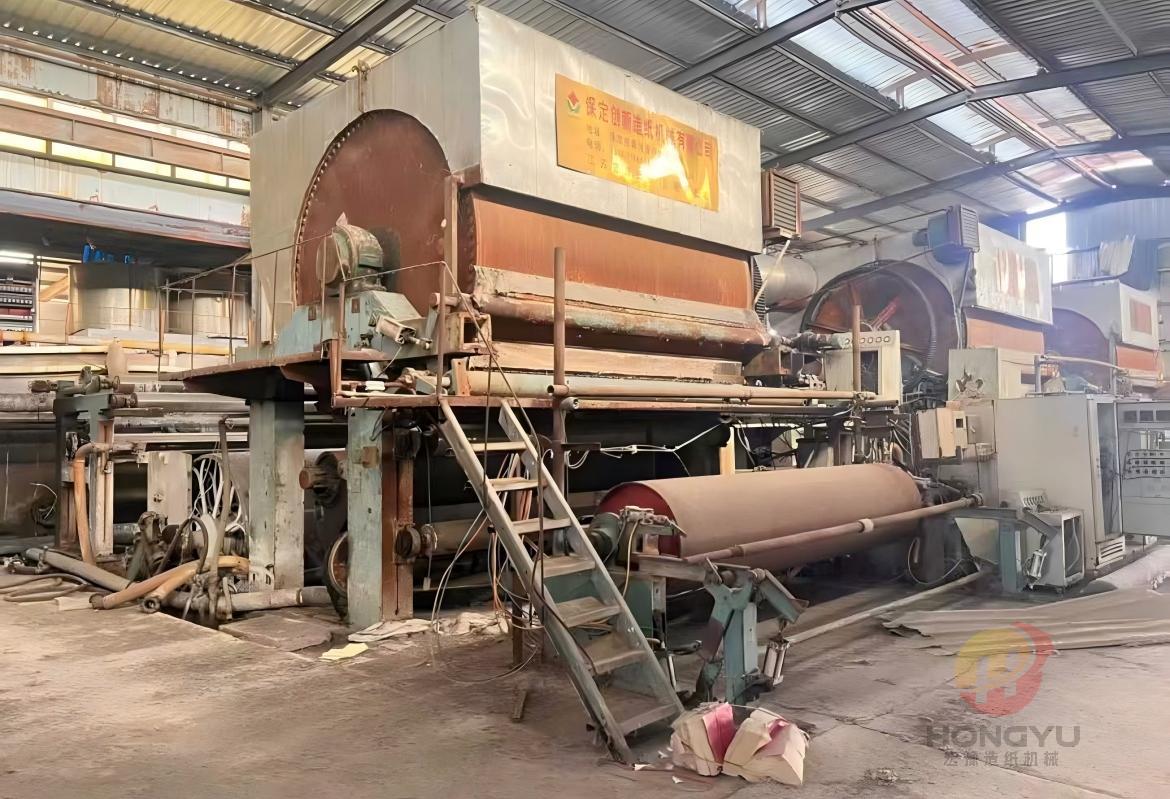

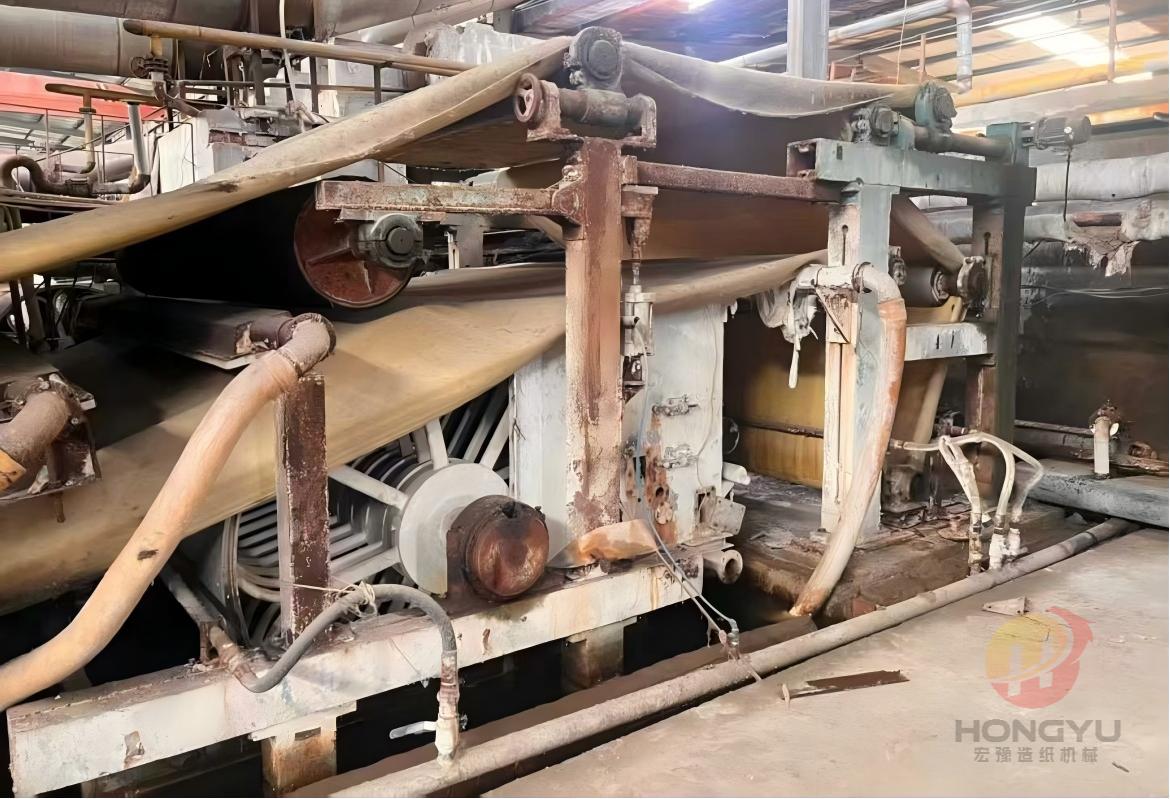

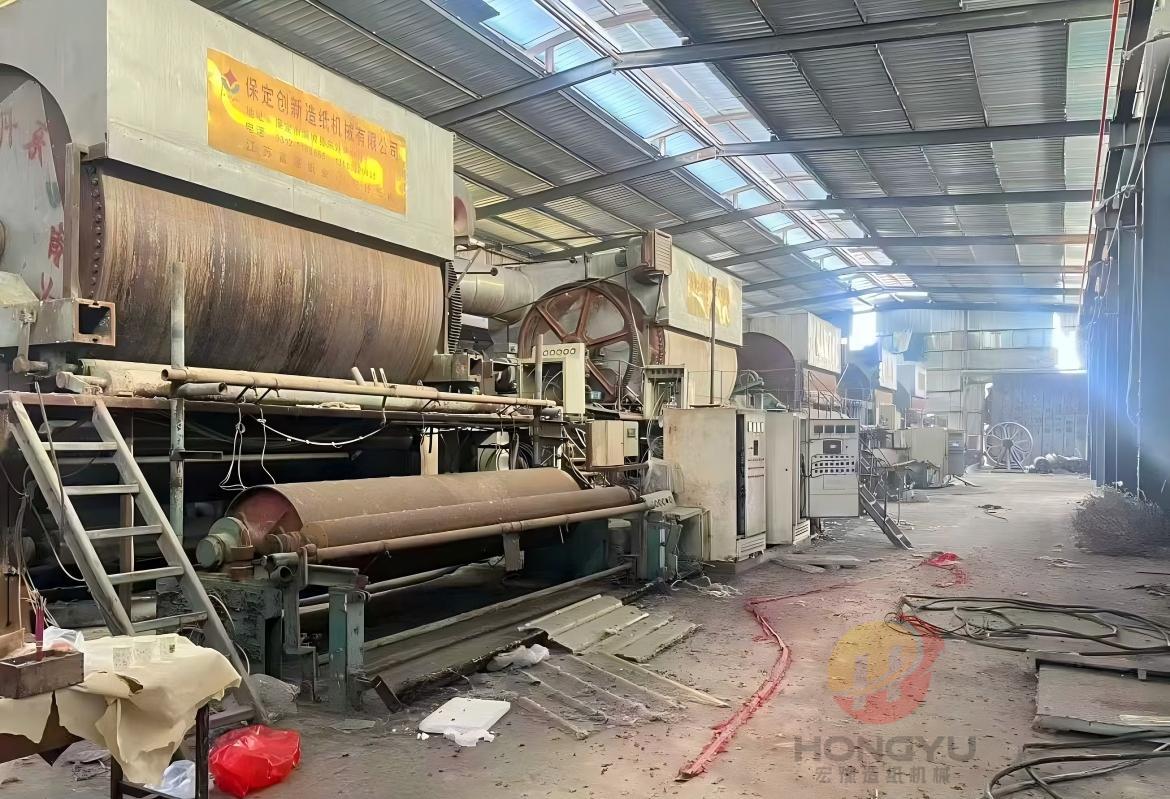

1. 3600 Type Double Fourdrinier Paper Machine

Detailed Configuration

1. Wire Section

• 1 wire box
• 1 wire cylinder (Φ2000 mm)
• 1 couch roll with press loading device
• Complete set of movable spray pipes
• Wire section guide rolls
• Vacuum suction box
• Frame and ground rails

2. Drying Section

• 1 Yankee dryer (Φ3000 × 4000 mm)
• Complete set of bearings, bearing housings, main gear, doctor blade, and steam head

3. Press Section

• 1 press roll with loading device
• Bearings, bearing housings, and pneumatic control box

4. Supporting Rolls and Frame

• Guide rolls, felt rolls, felt stretcher, and felt adjuster
• Dryer section frame and ground rails

5. Rewinder

• 1 complete set of rewinding machine

6. Vacuum and Drive System

• 1 vacuum pump
• Gearbox and drive system

7. Hood System

• 1 air hood with induced draft fan and heat exchanger

8. Electrical System

• All motors, drives, gearboxes, inverters, and electrical control cabinet included
