Machine Basic Info

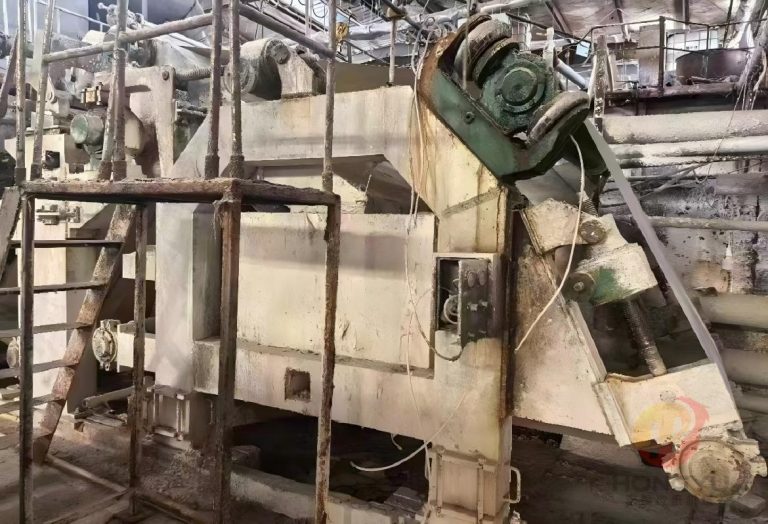

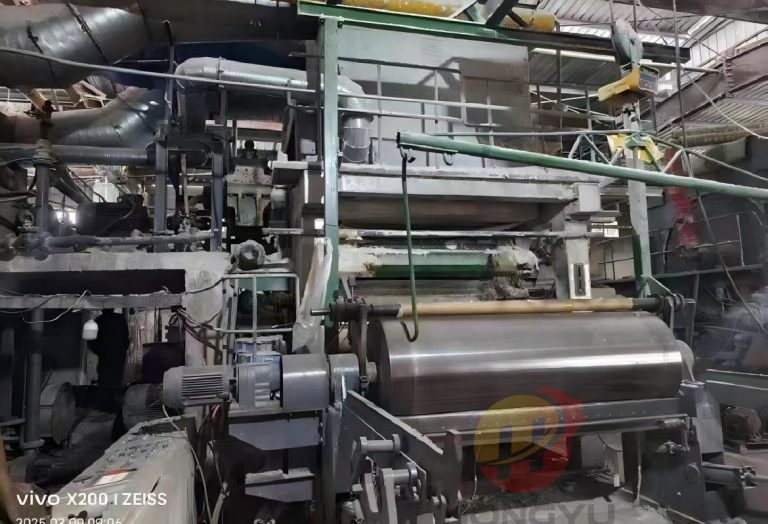

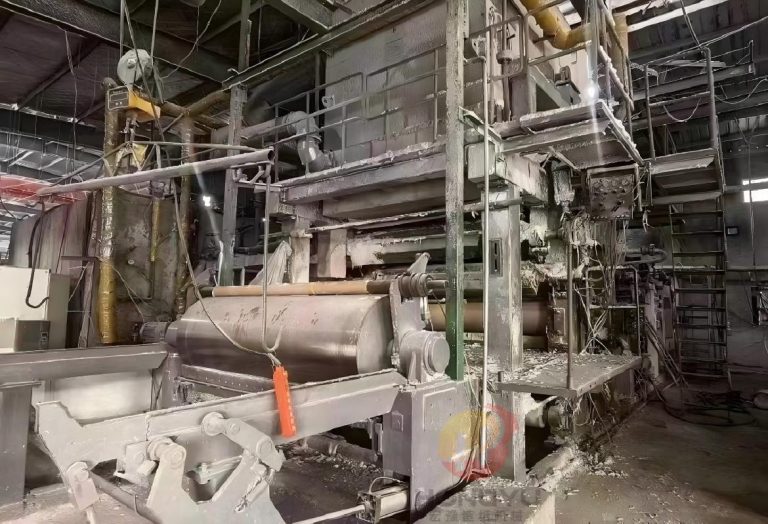

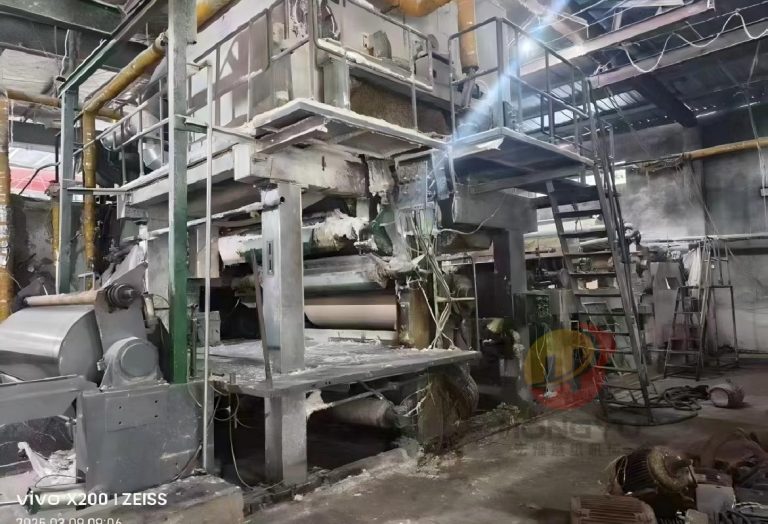

- Model: 1880 Crescent High-Speed Tissue Paper Machine
- Purpose: Tissue paper production
- Operating Speed: 400–500 m/min
- Production Capacity: 10–15 TPD (Tons Per Day)
Core Technical Parameters
- Yankee Dryer Diameter: 2500 mm
- Yankee Dryer Working Surface: 2300 mm
- Forming Roller Diameter: 800 mm
- Pressure Screen: 1.2 ㎡ (90% new)
Key Component Specifications
1. Yankee Dryer
- Surface Treatment: Spray-coated
- Type: Specialized for crescent high-speed production
2. Functional Rollers
- Rubber-Coated Roller: Diameter 750 mm, Surface Form (Hook pattern + Blind hole)
- Guide Roller: Diameter 273 mm, Surface (Covered with rubber)
- Forming Roller: Diameter 800 mm (matched with crescent forming system)
3. Vacuum System
- Roots Vacuum Pumps: 2 sets (17-type)

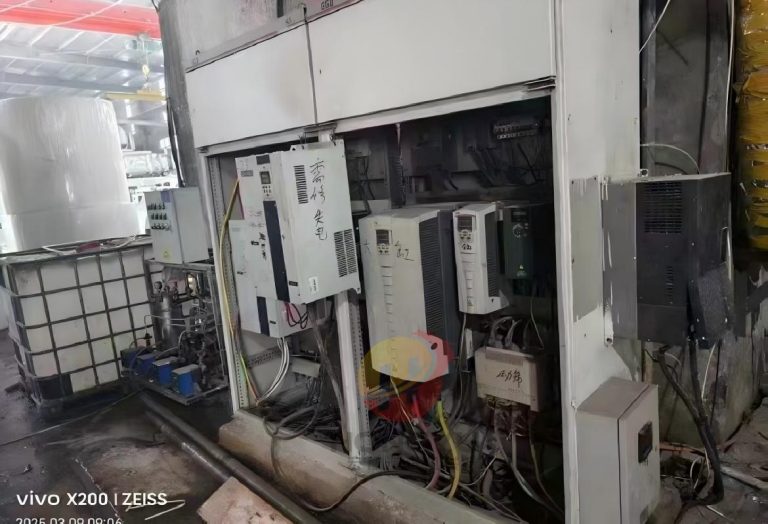

4. Electrical & Control System
- Motor Configuration: Complete motor frequency conversion available (supports stable speed adjustment for high-speed operation)
Equipment Features
- Crescent high-speed design (meets efficient tissue production demand)
- Key components in good condition (e.g., 90% new pressure screen)
- Complete supporting systems (vacuum, frequency conversion) for immediate operation
