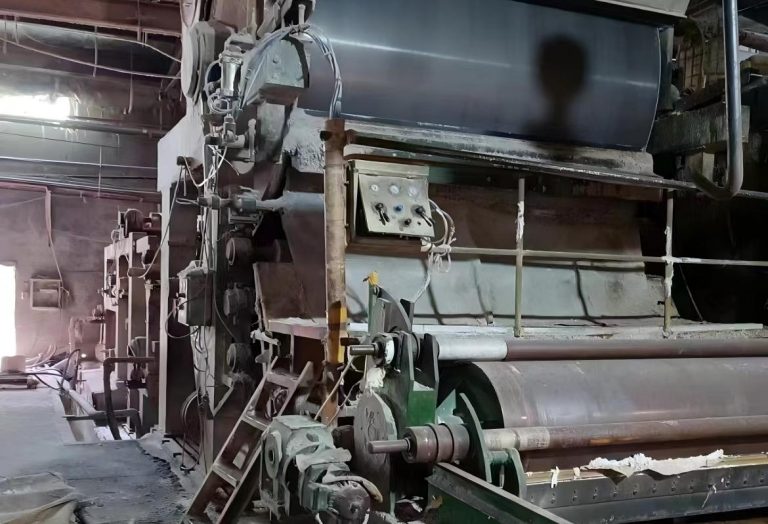

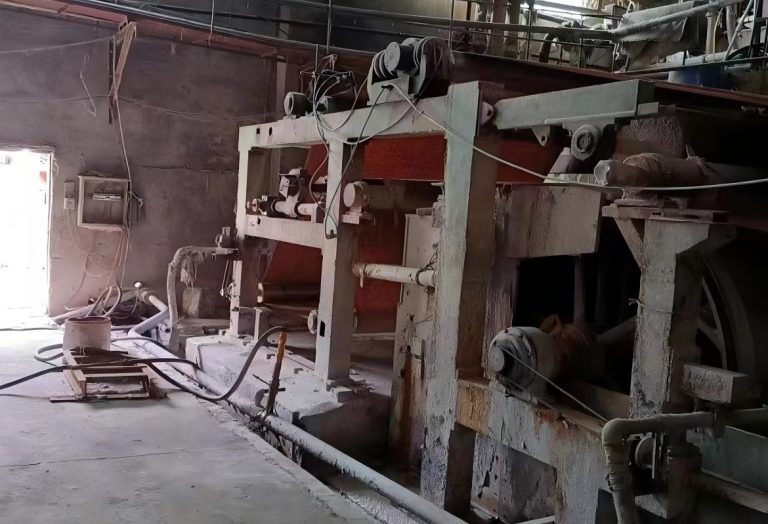

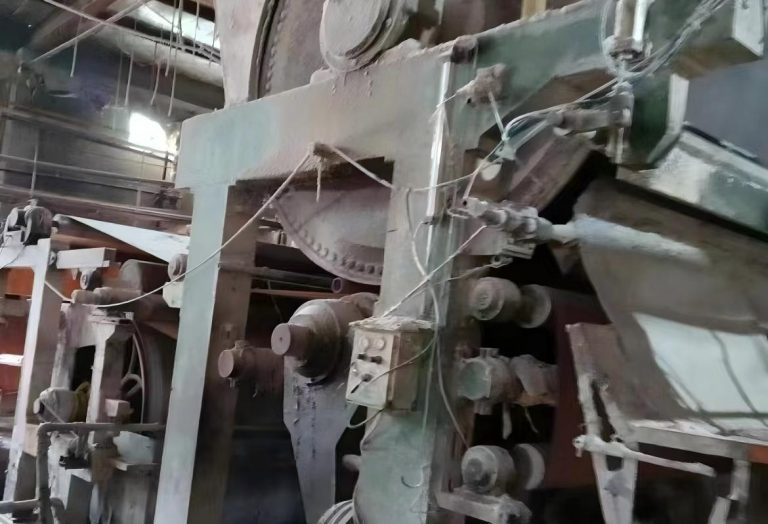

2400 Paper Machine – Technical Specifications
1. Core Information
- Model: 2400 (Web Width: 2400mm)
- Applicable Products: Burning Paper, Toilet Paper
- Motor Power: 55KW
2. Key Components & Specifications
Component | Specifications |
Couch Roll | Diameter: 500mm |
Cylinder Mould | Dimensions: 2000mm × 2900mm × 3400mm |
Dryer | Dimensions: 3000mm × 2900mm × 3400mm |
Support Roll | Diameter: 600mm |
Felt Guide Roller | Diameter: 245mm; Surface Treatment: Chrome-Plated |
Vacuum Pump | Type: 7-Series Vacuum Pump |
Auxiliary Equipment | Breathing Air Hood, Fan, Paper Reel, Simple Paper Winder, Frequency Converter |
