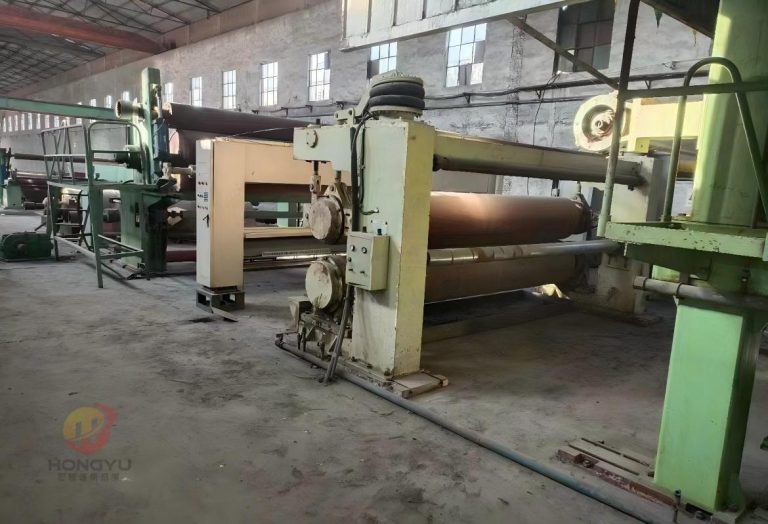

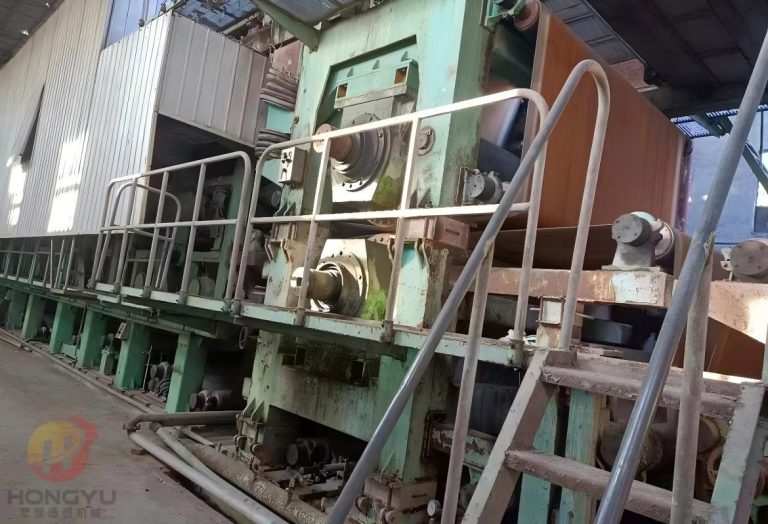

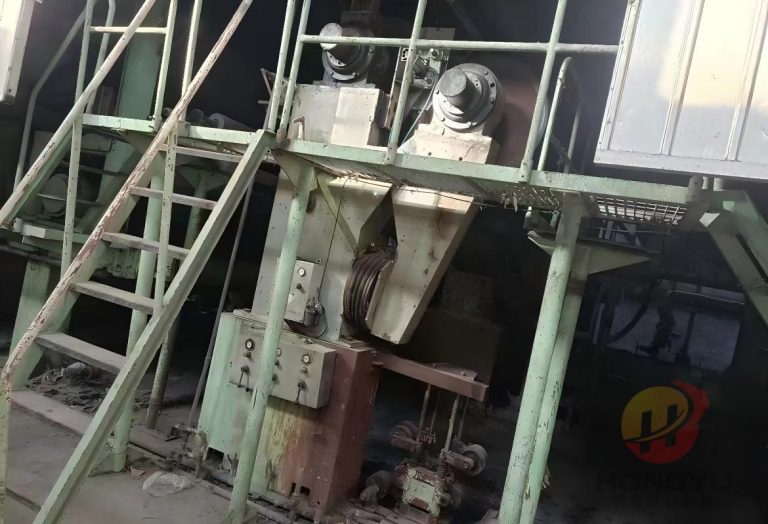

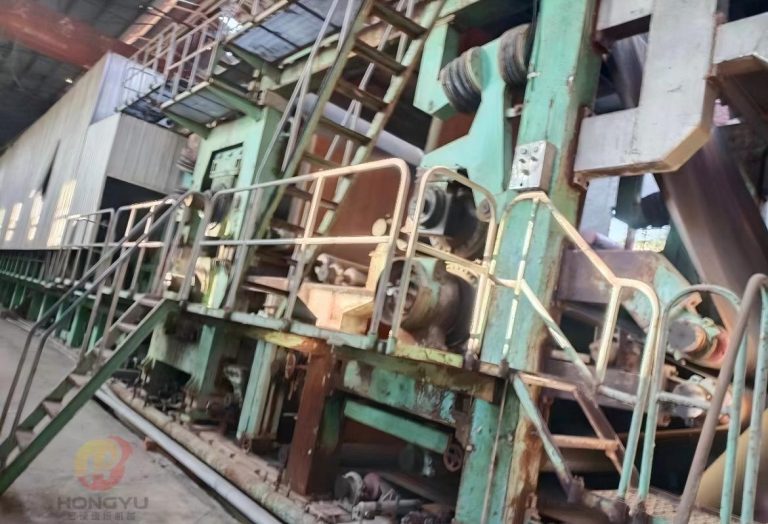

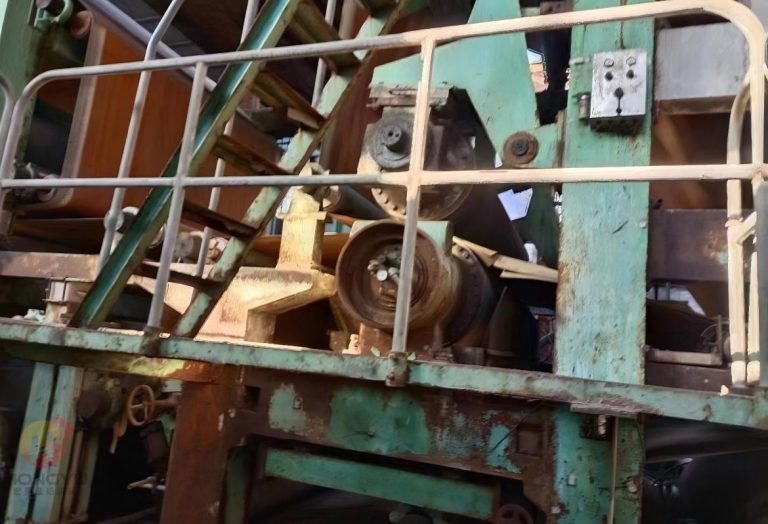

Used:2800/300m Two-Wire Multi-Dryers Paper Machine
  • Manufacturer of Main Machine: Xuchang Zhongya
  • Wire Specifications:
    • Bottom wire length: 17.5 meters
    • Top wire length: 7 meters
  • Headbox Supplier: Xi’an Weiya
  • Frame & Dewatering Components:
    • Rotating beam of the frame: Covered with stainless steel
    • Dewatering element box: Made of stainless steel (with ceramic panels)
  • Vacuum Roller: Diameter 800x3300x3800 mm
  • Vacuum Press Rollers:
    • One vacuum press roller diameter: 800 mm
    • Another vacuum press roller diameter: 750 mm
    • Additional roller diameter: 1300 mm
  • Drying Cylinder:
    • Diameter: 1500x3200x3800 mm
    • Configuration: 36-cylinder group
    • Transmission: Sealed gear box
  • Oblique Size Press: Roller diameter 850 mm
  • Additional Key Components:
    • Two-roller calender
    • Pope reel
    • Frame rewinding system
