Used：Kraft Paper Machine
Equipment List:

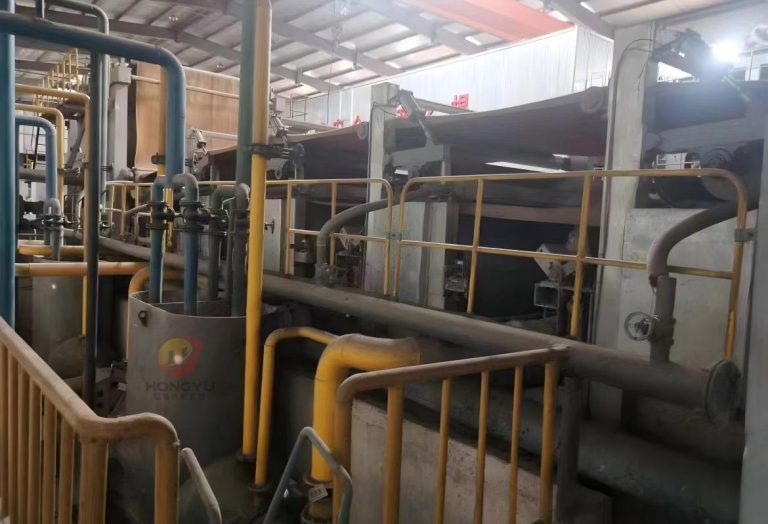

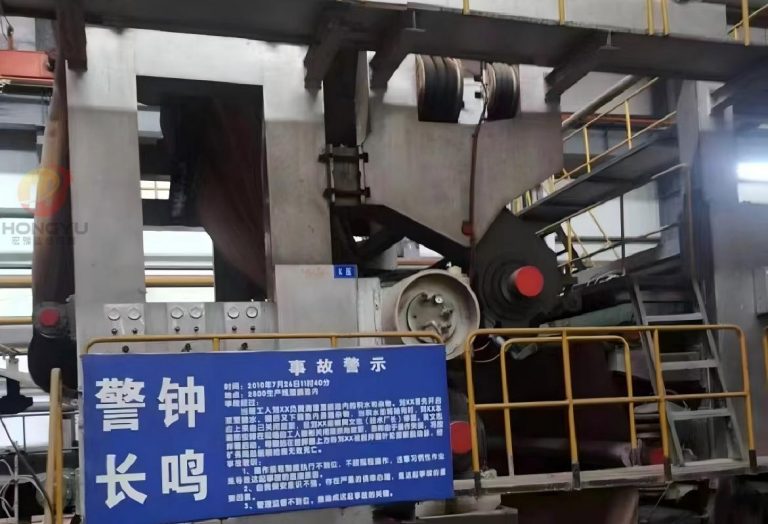

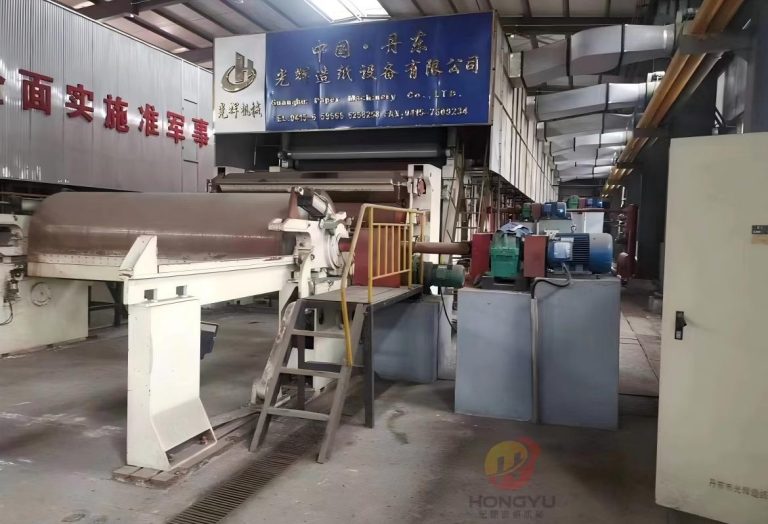

– 2800 mm kraft paper machine

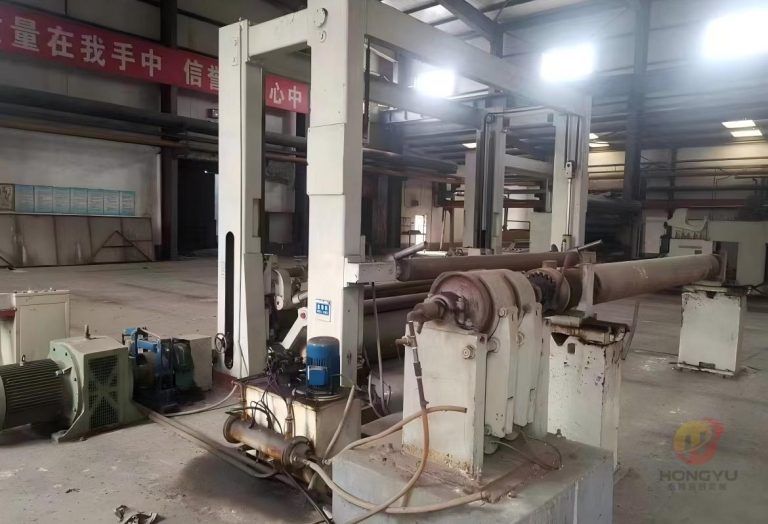

– Frame-type rewinder
– Horizontal roll paper machine
– Four-roll calender (working width: 3.2 meters)

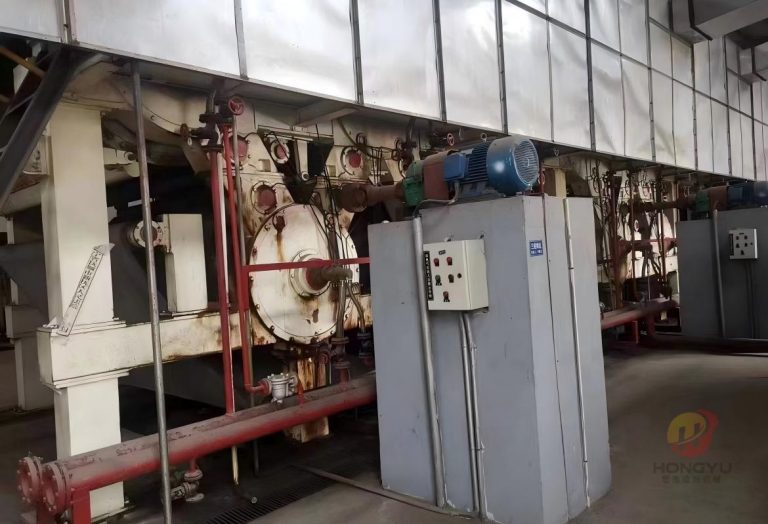

– Twelve drying cylinders (diameter: 1.5 meters; working width: 3.3 meters)
– Closed gearboxes (equipped with the above equipment)
– Four-driving-two transmission system (two stages)
– Three-roll calender
– One set of large cylinders (diameter: 3 meters)
– Six drying cylinders with a four-driving-two transmission system
– Two-stage pressing (diameters: 900/850 mm; configuration: one rubber roll and one stone roll)
– One K-press (roll diameters: 700/750/800 mm)
– One dewatering unit
– Four cylinder mould formers for sizing (cylinder mould diameter: 1.5 meters; working width: 3.32 meters)
– One vacuum return roll
