Basic Information:

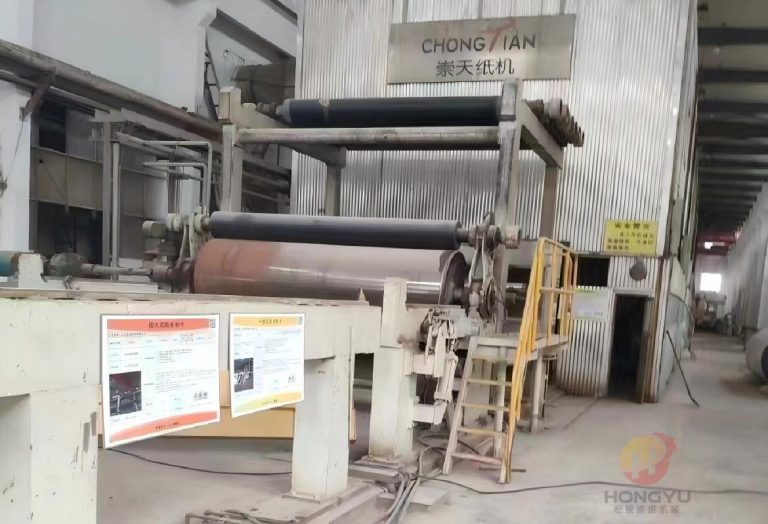

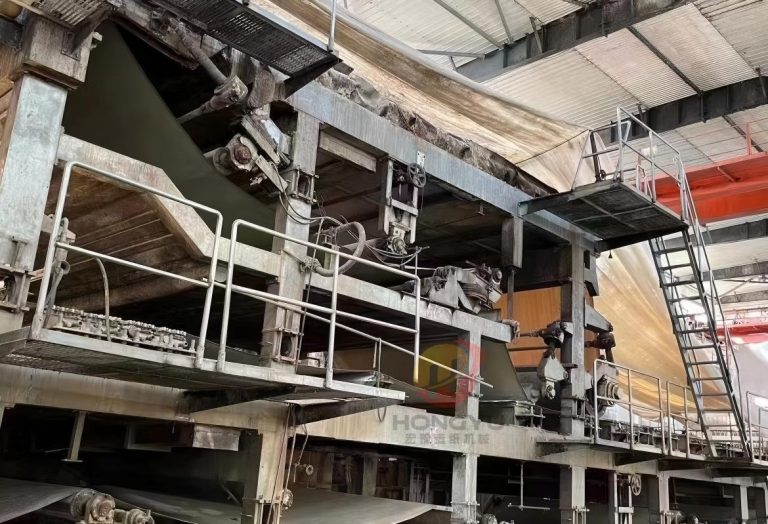

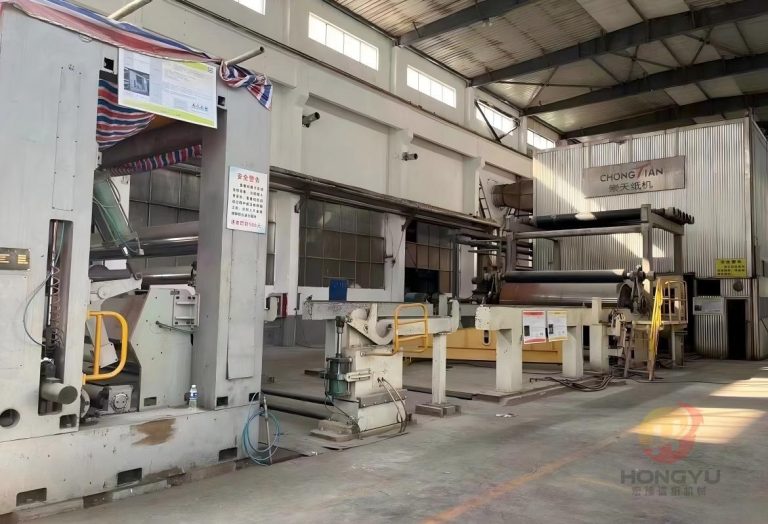

Machine Model: 3200/400 Two Wire Multi-Cylinder Paper Machine (Left Hand)
Manufacturer: Jiaozuo Chongyi Light Industry Machinery Co., Ltd.
Year of Production: 2011
Product Grade: High-strength Corrugated Paper (90-200g/m²)
Design Speed: 400 m/min
Working Speed: 380 m/min
Capacity: 120-180 TPD
Production Status: Started production in 2013, stopped in 2022; Entire machine not disassembled
Main Sections & Components:
1. Double Fourdrinier Wire Section
Wire Table: 22.5 + 8 m
Air Cushion Type Headbox: 2 sets (made by Xi’An Weiya, lip width 3550 mm)
Dehydration Element: Stainless steel box + ceramic panel
Frame: Covered with stainless steel
Rolls: Breast roll φ650×3800 mm; Vacuum couch roll φ800×3800 mm; Drive roller φ750×3800 mm; Steering roller φ650×3800 mm; Composite roll φ800×3800 mm; Guide roller φ290×3800 mm

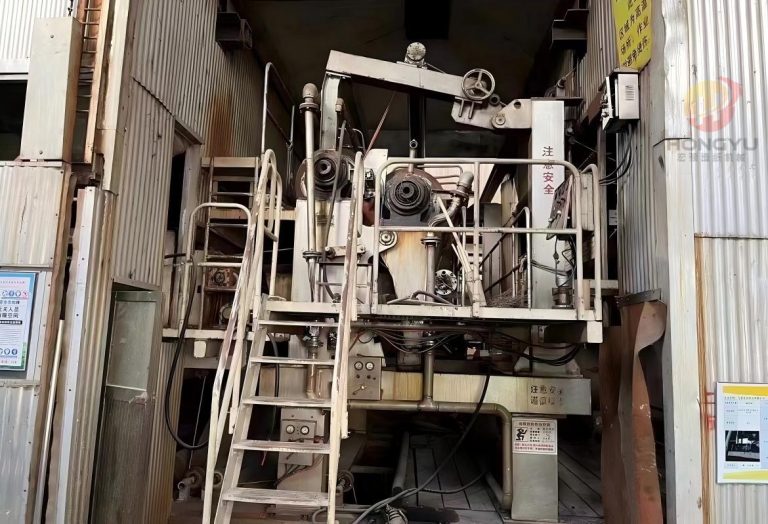

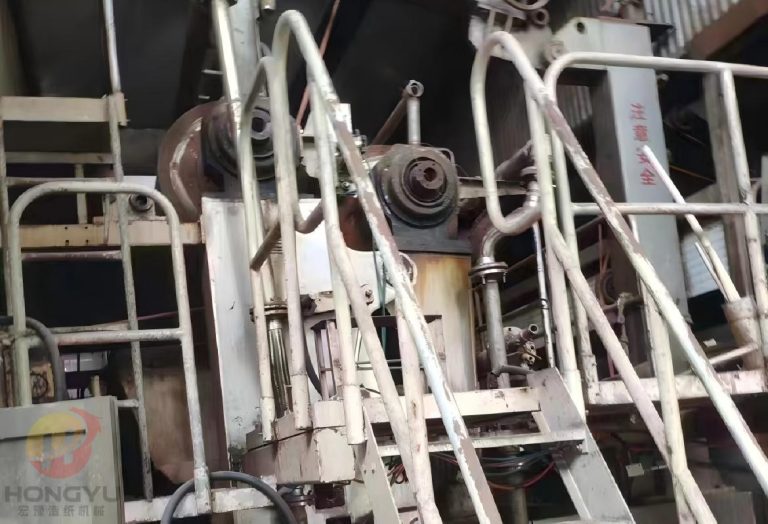

2. Press Section (Two Large Roll Diameters)
Press Roll: φ1350×3700 mm
Press Frame: Covered with stainless steel, hydraulically pressurized

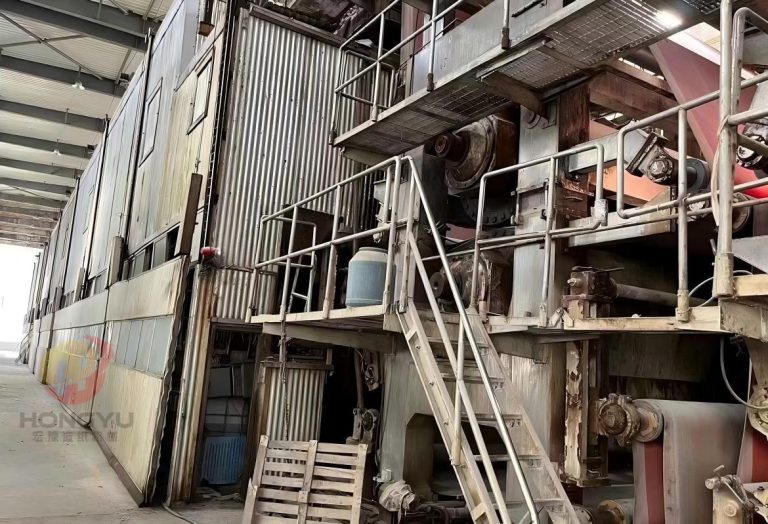

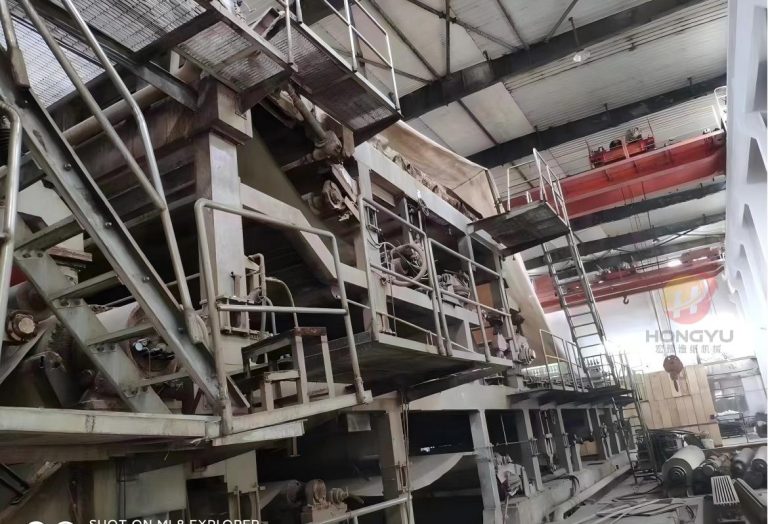

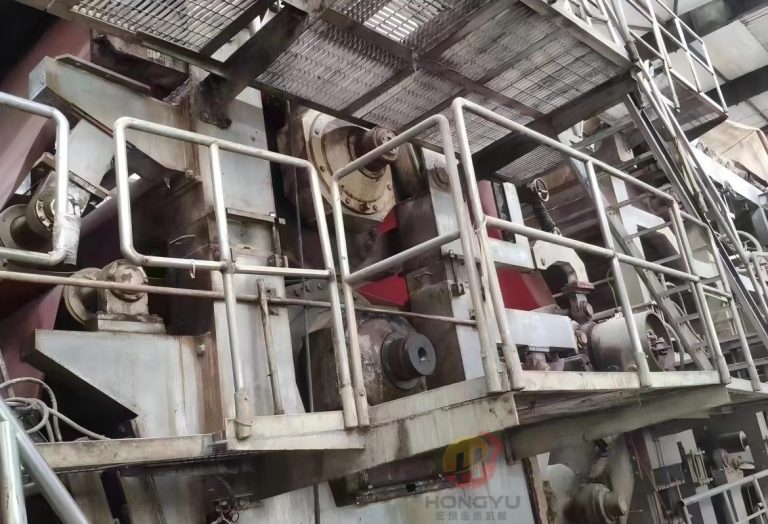

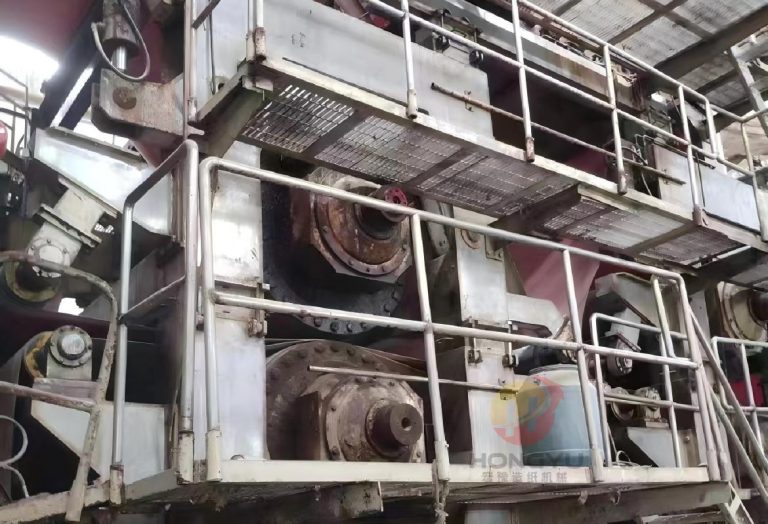

3. Drying Section
Arrangement Form: 4/4 + 4/4 + 8 + 8 + S + 12
Drying Cylinders: 44 pieces, Φ1800×3700 mm (cylinder head rope groove), 5 pieces per set, 0.5Mpa
Transmission Mode: Closed gear box transmission, lubricated by thin oil

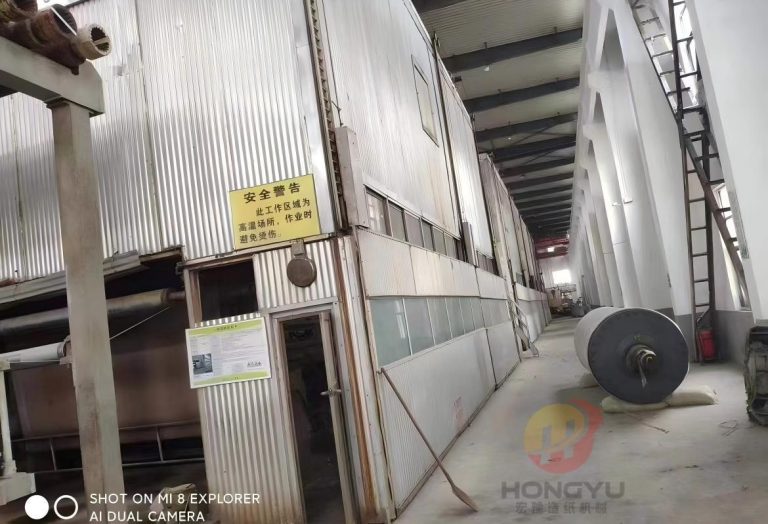

4. Closed Gas Hood
5. Inclined Sizing Machine
Sizing Roller: φ800/φ805×3600 mm, with glue system
6. Roller Paper Machine Paper Roll: 8 pieces, φ370×3600 mm

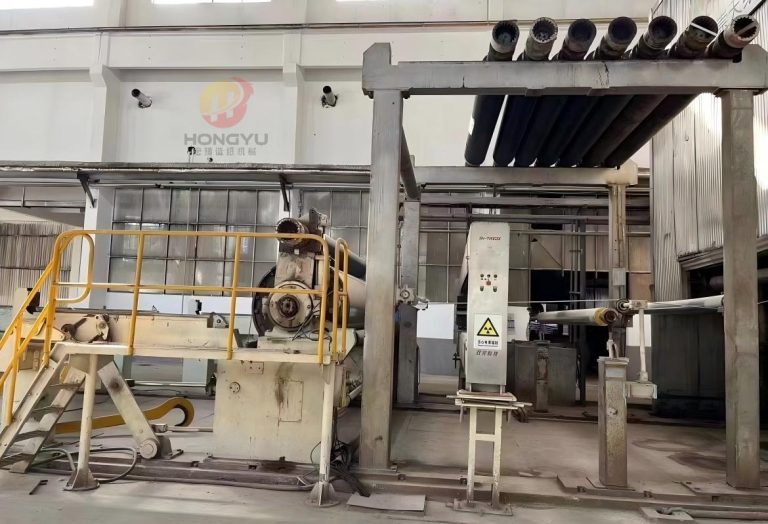

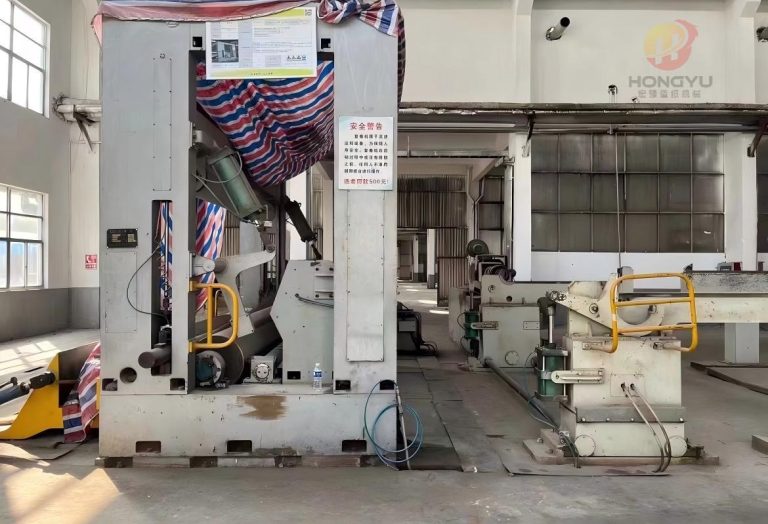

7. Underfeed Winder (produced by Boshan)
Supporting Equipment & Systems:
Full set of ABB control system
Scanning frame (made by Zhejiang Shuangyuan Technology Co., Ltd.)
2 turbine fans (Hangzhou Zhenxing)
Front flow pressure screen, flushing pump, thin oil station, hydraulic station, double-rope threading system
Contact Information: Please feel free to contact me if you are interested in this machine.
