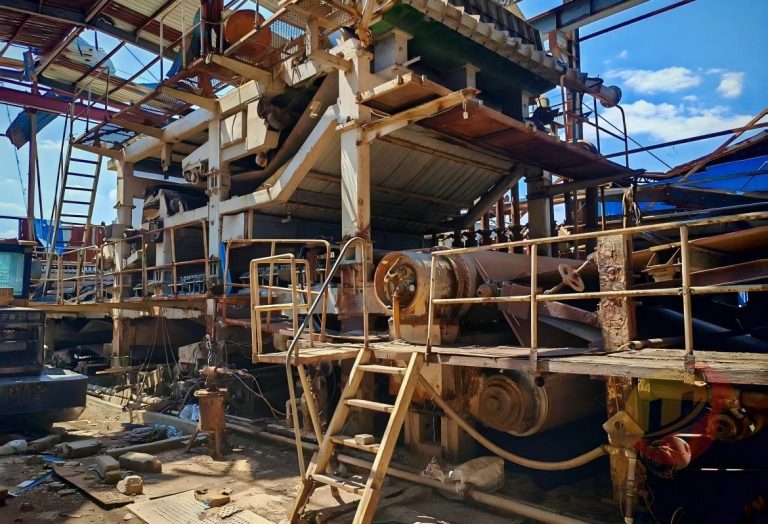

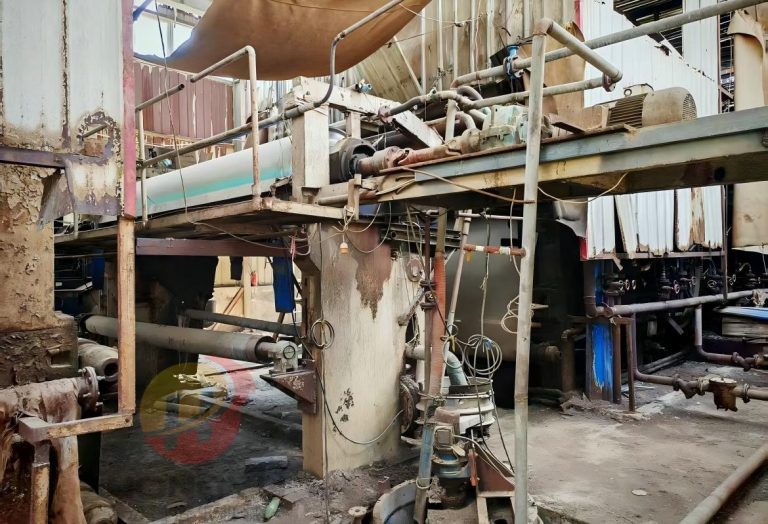

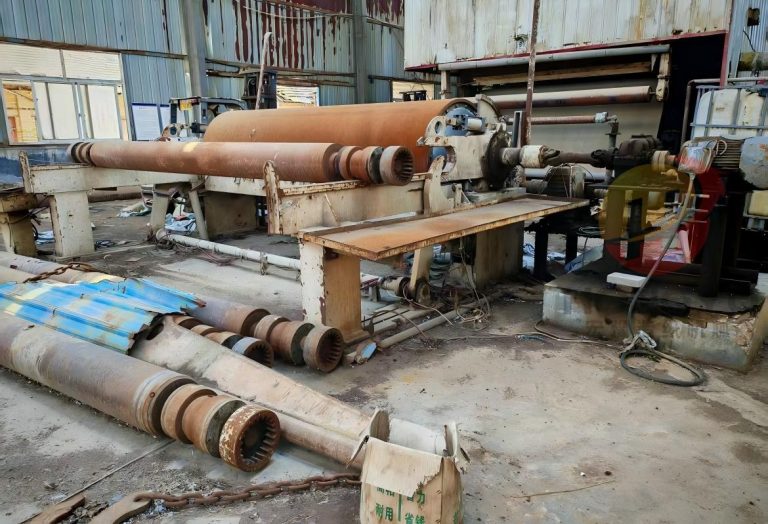

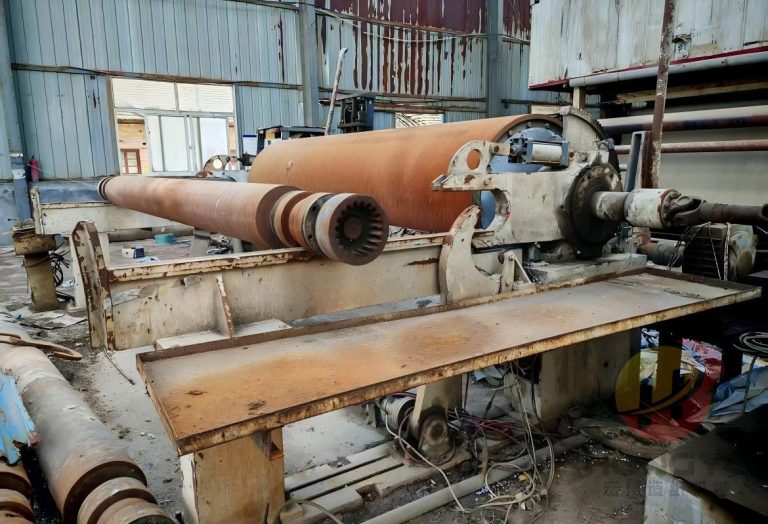

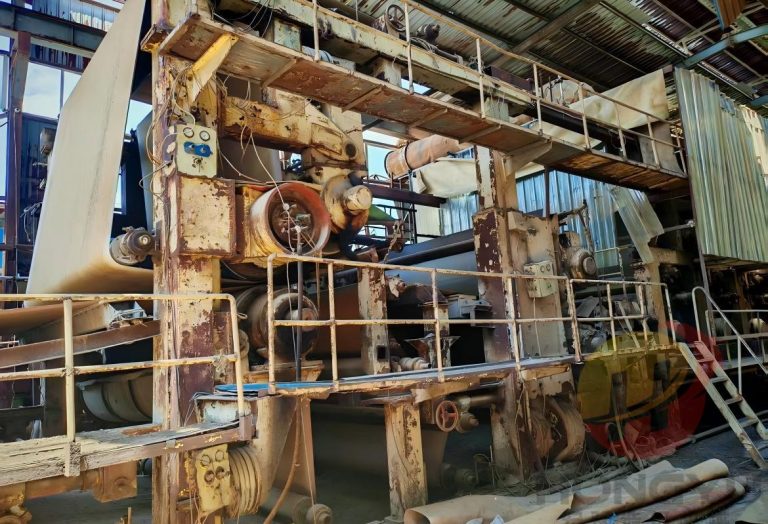

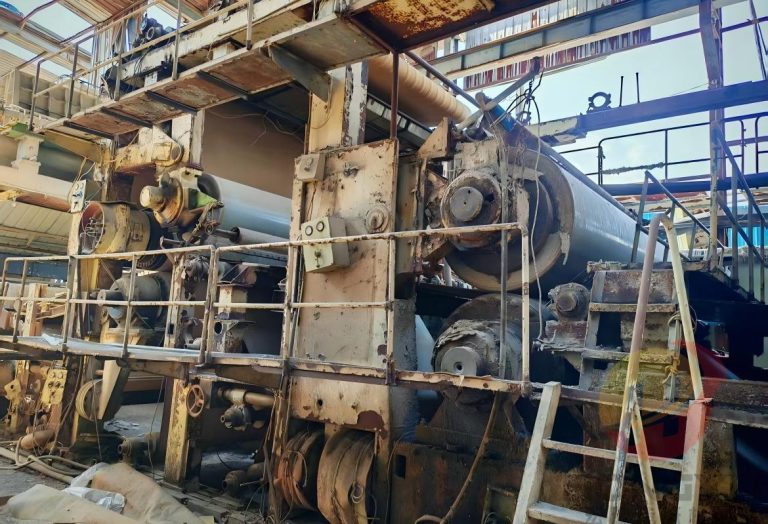

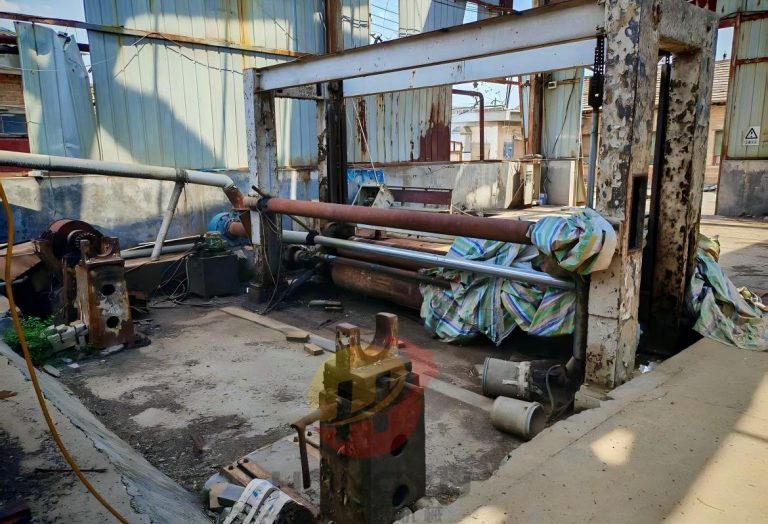

Used:3400 Model Multi-Cylinder Twin-Wire Paper Machine
Basic Information
  • Year of Manufacture: 2015
  • Manufacturer: Henan Yiji Machinery
  • Design Speed: 200 m/min
  • Product Range: 60–90 gsm high-strength corrugated base paper and kraft linerboard
1. Forming Section (Twin-Wire Section)
  • Bottom Wire:Wire Length: 18 meters
  • Open-type headbox with stainless steel lining
  • Headbox Lip Width: 3800 mm
  • Stainless steel dewatering elements
  • Breast Roll & Drive Roll Diameter: 650 mm
  • Vacuum Couch Roll Diameter: 800 mm
  • Top Wire:Wire Length: 7.5 meters
  • Open-type headbox with stainless steel lining
  • Headbox Lip Width: 3800 mm
  • Composite Roll Diameter: 800 mm
  • Breast Roll & Drive Roll Diameter: 650 mm
  • Stainless steel dewatering elements
2. Press Section
  • First Press: K-type press – Roll diameters 750 / 750 / 800 mm
  • Second Press: Large roll – Diameter 1050 mm
  • Roll Surface: 11038504350 mm

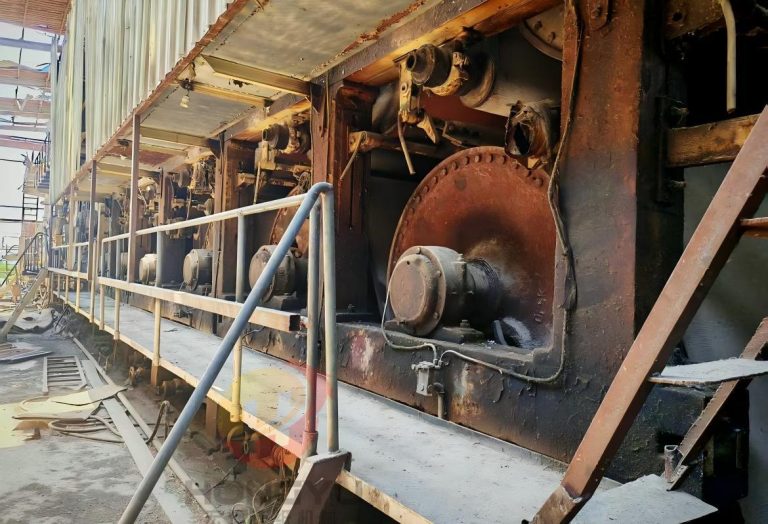

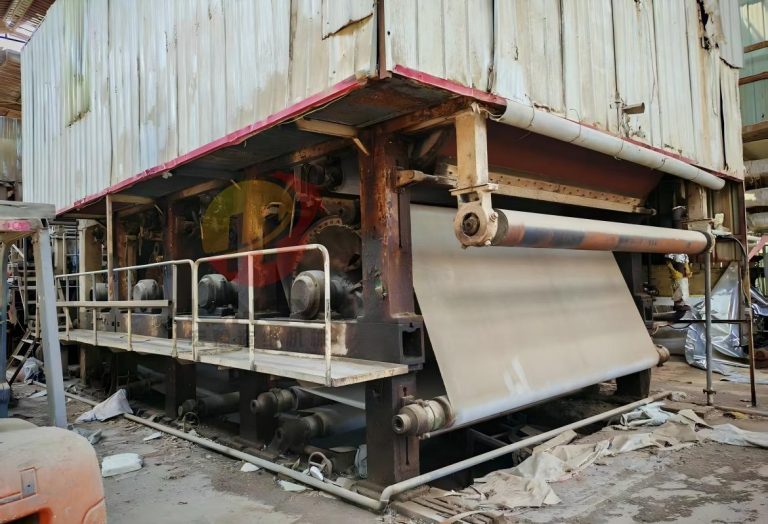

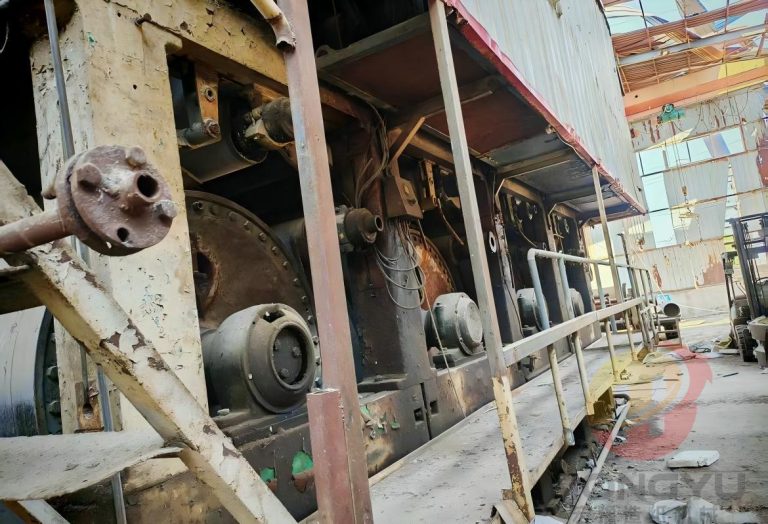

3. Dryer Section
  • Pre-Size Press Dryers:12 Groups of Dryers
  • Dryer Cylinder Size: 1500×3850×4300 mm
Size Press:Roll Size: 750 / 745 × 3800 × 4300 mm
Post-Size Press Dryers:8 Groups of Dryers
Dryer Cylinder Size: 1500×3850×4300 mm
Transmission: Large gear drive
Guide Roll Diameter: 273 mm
Guide Roll Length: 3900 × 4300 mm
