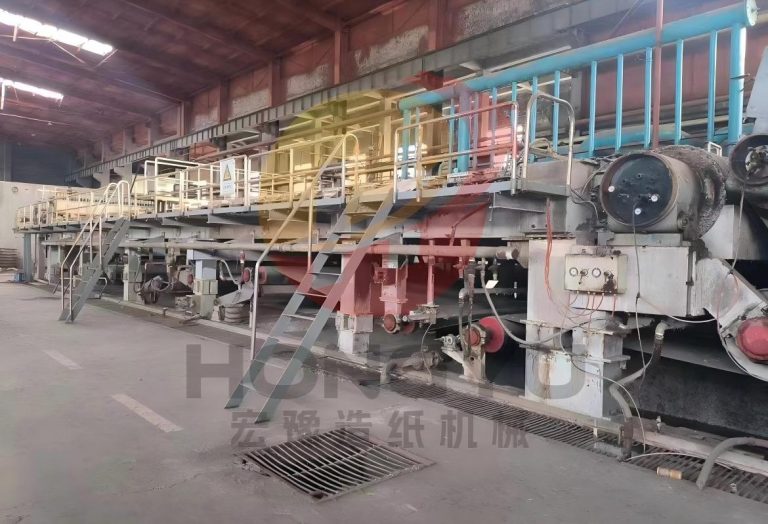

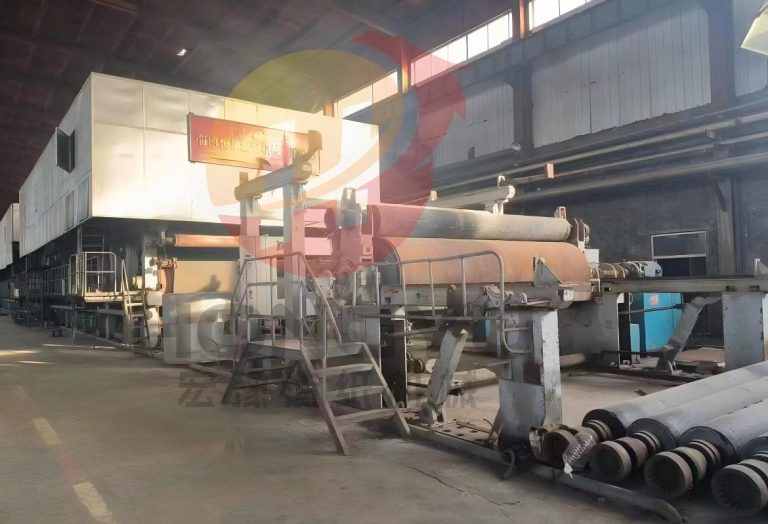

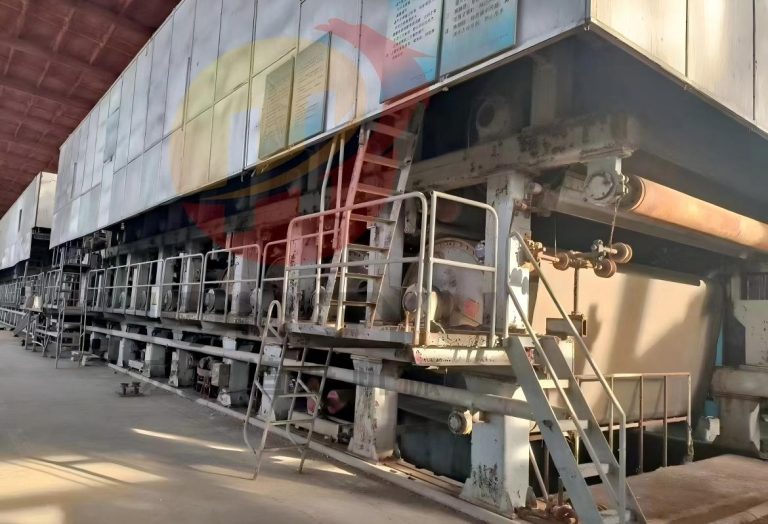

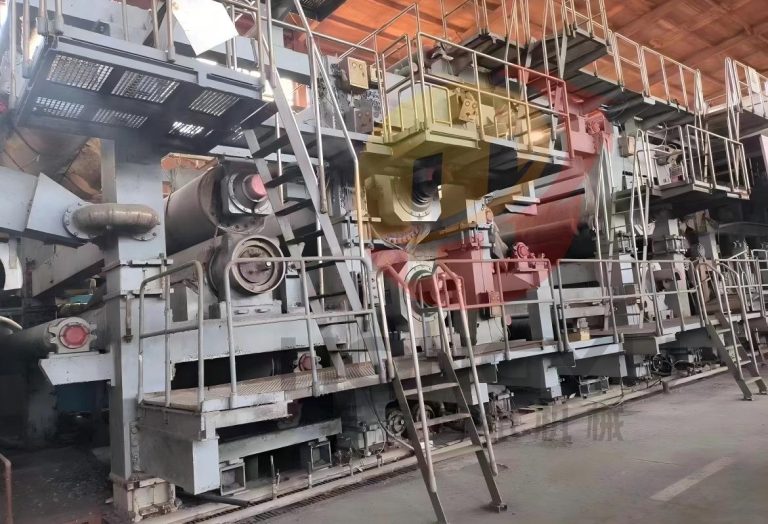

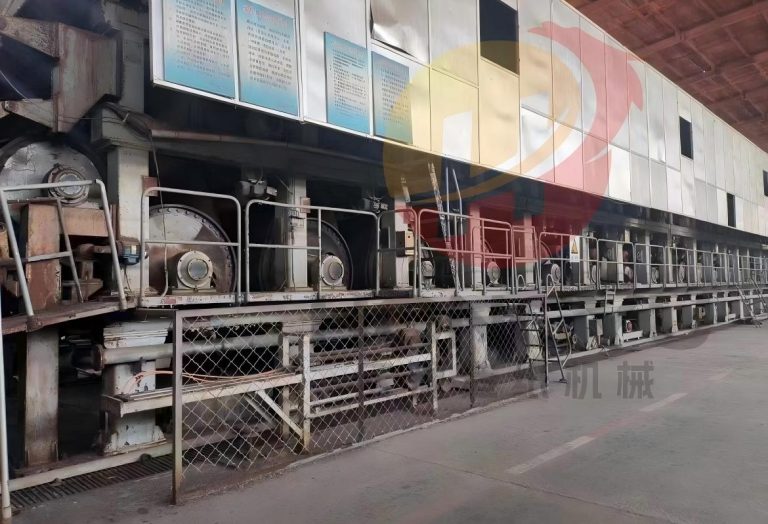

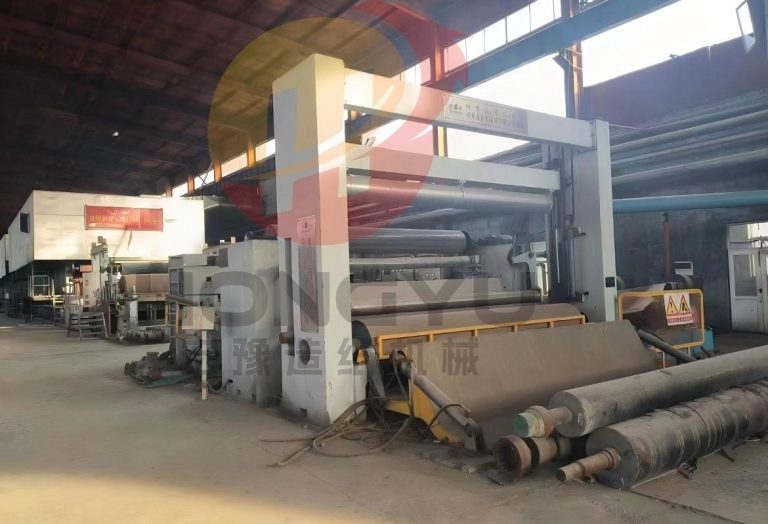

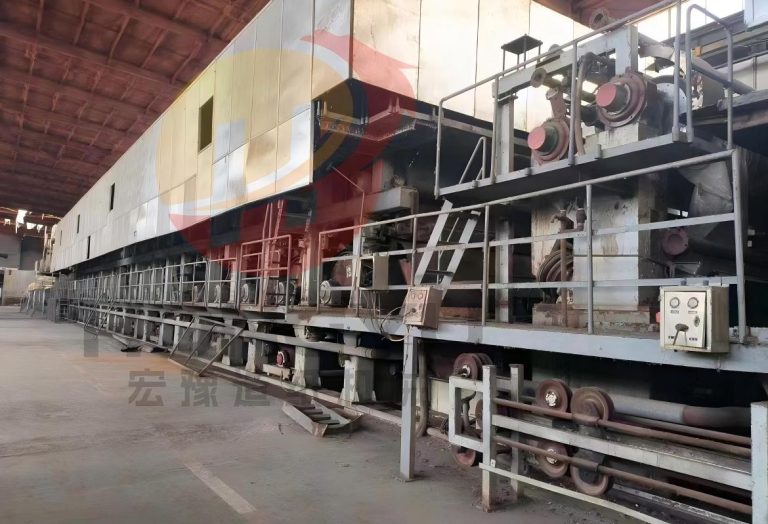

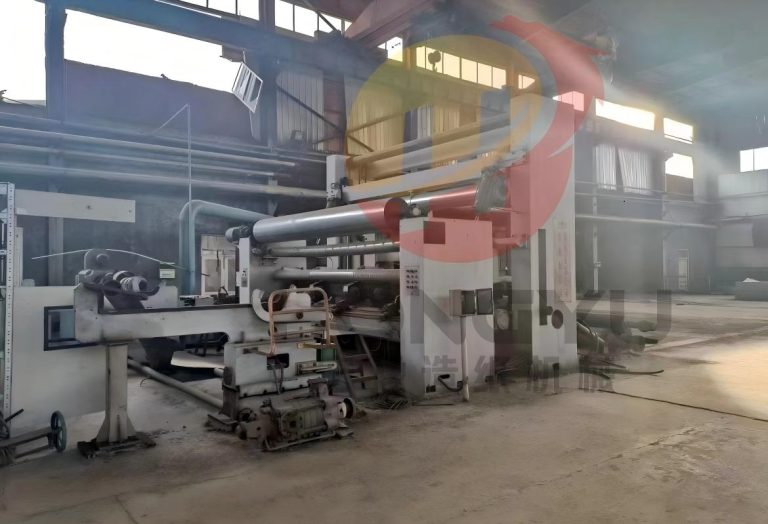

For Sale: Used 3600 Fourdrinier Multi-Cylinder Paper Machine
This high-performance used paper machine, manufactured by Zibo Xingxing in 2011, is now available for purchase, featuring complete supporting systems and well-maintained key components. Below are its detailed specifications and configuration:
1. Wire Section
- Wire section length: 24 m
- Air cushion headbox lip width: 4050 mm
- Vacuum couch roll: Diameter 900 mm × Length 4400 mm
- Drive roll: Diameter 750 mm × Length 4300 mm
- Dehydration element: Equipped with stainless steel ceramic panel
- Vacuum suction roll: Diameter 650 mm × Length 4250 mm
2. Press Section
- 1 unit of vacuum pre-press: Size 800/850 mm × 4250 mm
- 2 units of large-diameter blind hole press: Size 1350/1350 mm × 4200 mm
3. Drying & Sizing Section
- Drying cylinders (first group): 36 sets, each with size 1500 mm × 4250 mm
- Sizing machine: Size 815/775 mm × 4200 mm
- Drying cylinders (second group): 16 sets, each with size 1500 mm × 4250 mm
4. Auxiliary Equipment & Systems
- 1 set of moisture tester (brand: Shuangyuan Technology)
- 1 unit of horizontal winding machine
- 1 set of underfeed winder (manufactured by Baishan)
- Complete supporting systems, including vacuum system, pre-net screen, frequency converter, and flow approach system (all systems come with matching motors, electrical appliances, and control systems)
