Paper Machine

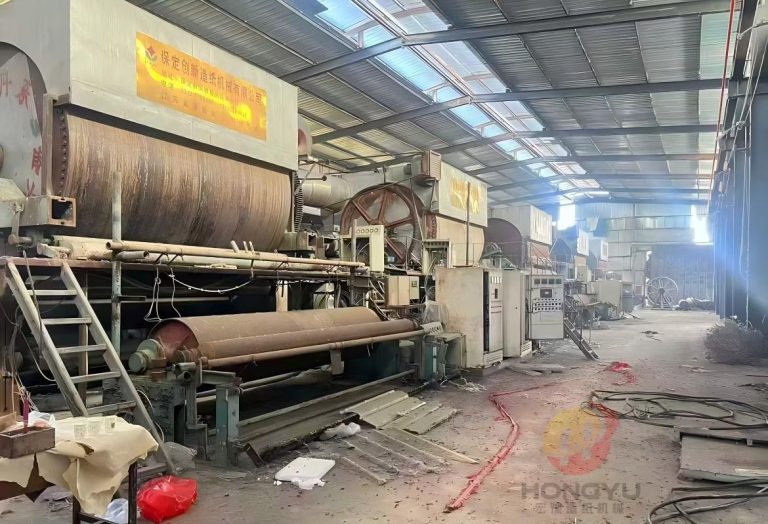

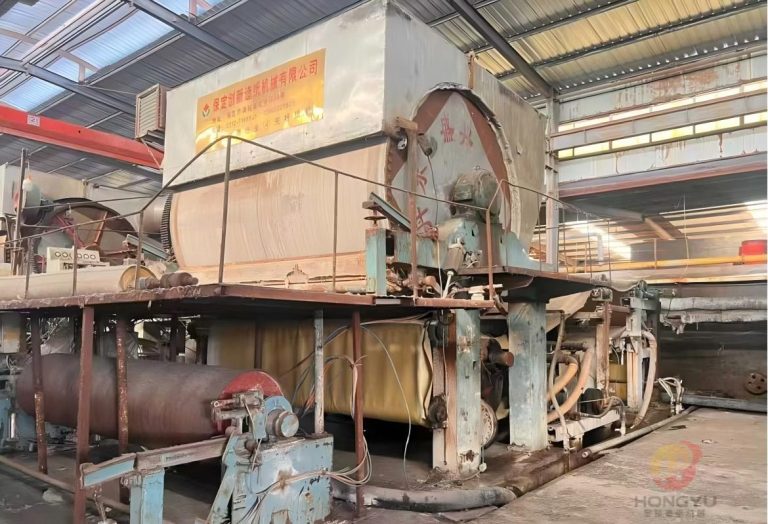

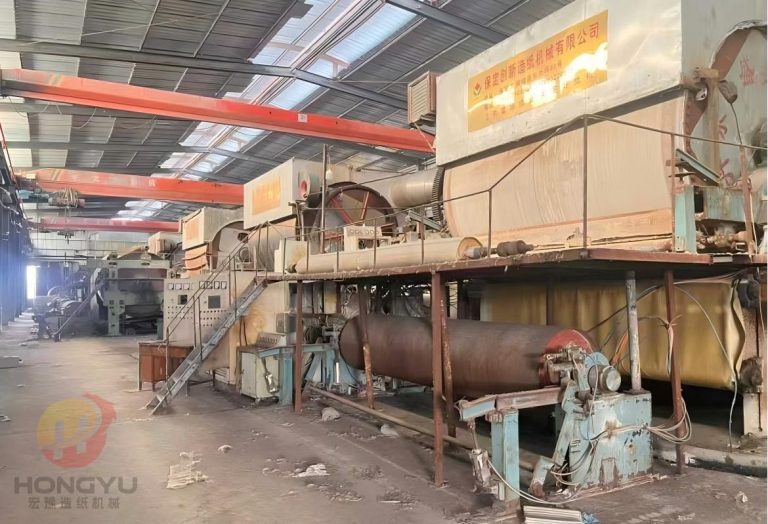

1. 3600 Type Double Fourdrinier Paper Machine
Detailed Configuration
1. Wire Section
  • 1 wire box
  • 1 wire cylinder (Φ2000 mm)
  • 1 couch roll with press loading device
  • Complete set of movable spray pipes
  • Wire section guide rolls
  • Vacuum suction box
  • Frame and ground rails
2. Drying Section
  • 1 Yankee dryer (Φ3000 × 4000 mm)
  • Complete set of bearings, bearing housings, main gear, doctor blade, and steam head
3. Press Section
  • 1 press roll with loading device
  • Bearings, bearing housings, and pneumatic control box
4. Supporting Rolls and Frame
  • Guide rolls, felt rolls, felt stretcher, and felt adjuster
  • Dryer section frame and ground rails
5. Rewinder
  • 1 complete set of rewinding machine
6. Vacuum and Drive System
  • 1 vacuum pump
  • Gearbox and drive system
7. Hood System
  • 1 air hood with induced draft fan and heat exchanger
8. Electrical System
  • All motors, drives, gearboxes, inverters, and electrical control cabinet included
