For Sale: 3800 Type Fourdrinier Paper Machine
This high-performance second-hand 3800 type fourdrinier paper machine, manufactured in 2018, is now available for sale. It is equipped with a drying system consisting of 2 large dryers and 5 small dryers, and the entire machine can be disassembled at any time, facilitating transportation and on-site installation. Detailed technical specifications are as follows:
1. Fourdrinier Wire Section
- Wire length: 17 meters
- Frame: Fully covered with stainless steel for enhanced corrosion resistance and durability
- Key components: Stainless steel open headbox (lip length: 4200mm), stainless steel box dehydration components
- Auxiliary parts: Front wire screen (produced by Fujian Light Machinery), cylindrical screen, high box, guide roller, driving screen roller, and couch roll
2. First Dryer Section
- Large dryer: 1 set, dimensions 366043004800mm; cylinder thickness 5cm, surface sprayed for improved heat transfer efficiency; comes with a drying cylinder pressure vessel certificate (ensuring compliance with safety standards)
- Double roller: Dimensions 80043004800mm
- On-line pressing device: Roller dimensions 850/90043004800mm
- Water squeezing roller: Dimensions 55043004800mm
- Guide roller: Dimensions 32044004800mm
3. Second Dryer Section & Small Dryer Section
- Second large dryer: 1 set, dimensions 250043004800mm; cylinder surface sprayed, with a valid drying cylinder pressure vessel certificate
- Size press: Roller dimensions 85044004800mm
- Small dryers: 5 sets in total, each with dimensions 200043004800mm
4. Auxiliary Systems & Overall Condition

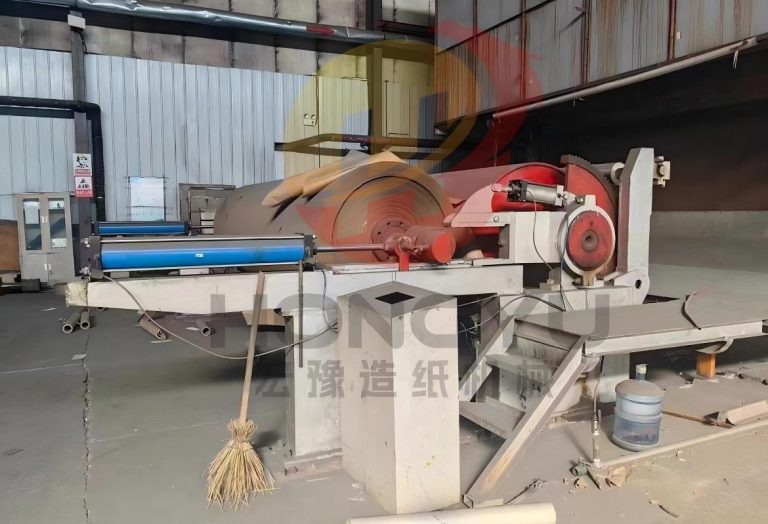

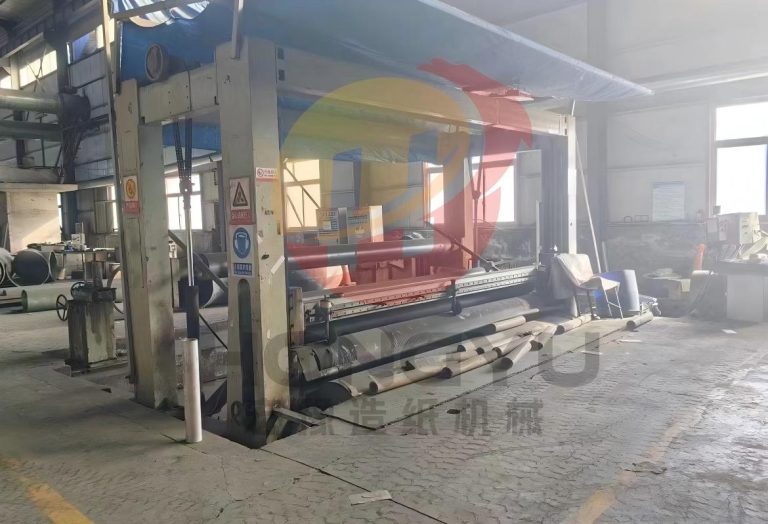

- Winding equipment: Pope reel (equipped with 6 rollers) and frame rewinder, ensuring stable and efficient paper winding

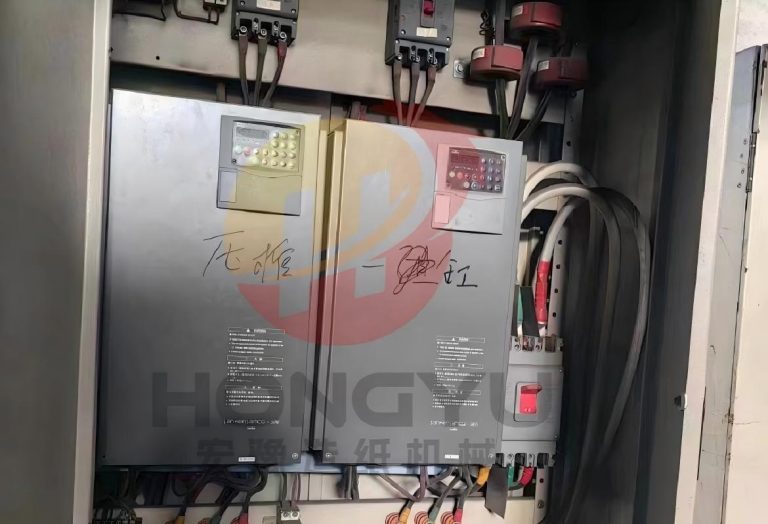

- Power & control: Complete motor system and frequency conversion device included, enabling precise adjustment of operating speed to match different production needs
- Manufacturing year: 2018, with well-maintained components to ensure reliable performance in subsequent production operations
