Machine Basic Info

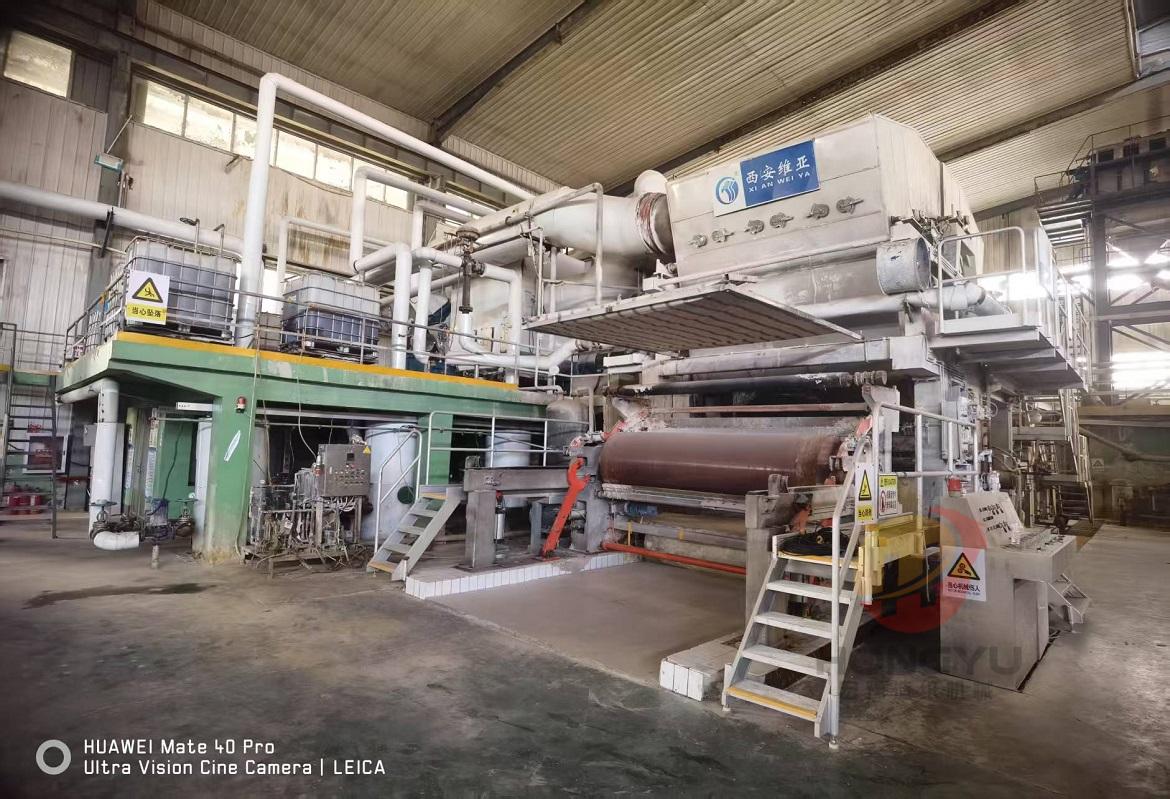

- Model: 2850 Crescent Tissue Paper Machine
- Application: High-end toilet paper production
- Drive Type: Sectional Drive (AC Variable Frequency Control)
Main Technical Parameters
1. Product & Raw Material Specifications
- Paper Type: High-end toilet paper
- Raw Materials: Softwood (NBKP) + LBKP-derived bleached sulfate pulp
- Basis Weight: 12–35 g/㎡ (Wrinkle Ratio: 18%–28%)
-
- Calculation Formula: Paper Weight on Yankee Cylinder = Basis Weight × (1 – Wrinkle Ratio%)
2. Paper Width (By Section)
- Paper Width at Yankee Cylinder Entry: 2920 mm
- Paper Width at Dryer Exit: 2890 mm
- Paper Width at Reel: 2850–2860 mm
3. Speed Parameters
- Design Speed (No-load Operation): 1000 m/min
- Operating Speed (Load Operation): ≥850 m/min
- Roller Balancing Speed: 1100 m/min
4. Production Capacity
- Nominal Output: 35.7 TPD (based on dryer speed 850 m/min, 15 g/㎡ basis weight, 25% wrinkle rate)
- Extended Calculation: 11.25 g/㎡ × 2.85 m × 850 m/min × 1440 min × 97% ÷ 1,000,000 = 38.1 TPD
5. Structural & Dimensional Specifications
- Max. Reel Diameter: 2000 mm
- Track Gauge: 3800 mm (Dryer Section: 4000 mm)
- Installed Dimensions: 1690 mm × 6000 mm × 6900 mm (Length × Width × Height)
6. Additional Configurations
- Machine Orientation: Standing at the reel (looking toward the headbox), drive is on the right side (with handle)
- Machine Color: Epoxy paint (color palette number 7035)
- Total Installed Capacity: xxx kW (Paper Machine Drive Section)
Equipment Advantages
- High-end product 适配: Designed for high-end toilet paper, matches NBKP/LBKP pulp processing needs
- High efficiency: Operating speed ≥850 m/min, max output up to 38.1 TPD (meets large-scale production demand)
- Precise control: AC variable frequency sectional drive + clear width control (ensures stable product quality)
- Durable finish: Epoxy paint with standard thickness (anti-corrosion, prolongs equipment service life)
