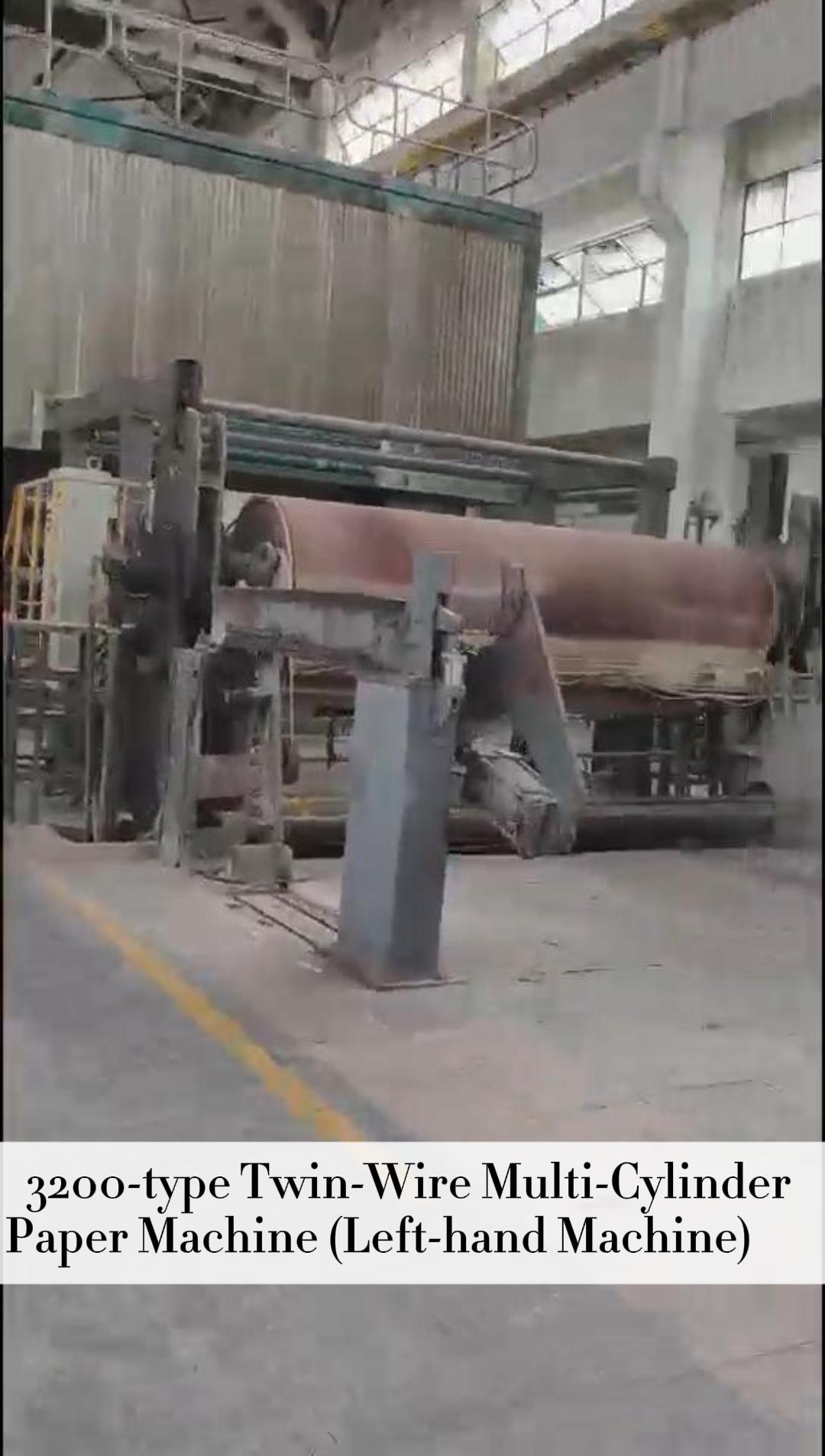

Used : 3200mm Double-Tier Wire Multi-Cylinder Paper Machine (Left-Hand)

Design Speed: 380m/min

Technical Parameters

Forming Section

– Bottom wire length: 18m; Top wire length: 6m

– Air-cushion headbox (Hewitt), lip opening: 3550mm

– Vacuum couch roll: Φ800mm × 3800mm

– Wire driving roll: Φ750mm × 4300mm

– Dewatering elements: stainless steel with ceramic face plates

Press Section

– Two sets of large-diameter blind-hole press rolls: Φ1350/1350mm × 3700mm

Dryer Section

– Pre-size press dryer section: 30 sets of dryer cylinders, specification Φ1500mm × 3700mm

– Size press: Φ850mm × 3550mm

– Post-size press dryer section: 10 sets of dryer cylinders, specification Φ1500mm × 3700mm

Auxiliary Equipment

– 1 set of four-roll calender (bottom roll diameter: 700mm)

– 1 set of moisture tester (ABB brand)

– 1 set of horizontal reel machine

– 1 set of under-feed rewinder (Hewitt brand)

– Complete vacuum system

– Headbox screen (Andritz brand)

Supporting Systems

Complete with frequency converters, stock flow distribution system, motors, electrical components and full control system
