1. Basic Technical Parameters

• Product Varieties: Specialized in producing linerboard paper and high-wafer strong corrugated paper, meeting the demands of packaging paper applications.
• Papermaking Quantity: 90–180g/m², supporting flexible adjustment to adapt to different product specifications.
• Net Paper Width: 3800mm, ensuring large-scale production capacity.
• Working Speed: 380–400m/min, enabling high-efficiency papermaking operations.
• Nominal Capacity: 200 TPD (Tons Per Day), delivering stable output for industrial-scale production.
• Place of Origin: Manufactured by Xuchang Zhongya, a reputable supplier in the papermaking equipment industry.

2. Key Section Configurations

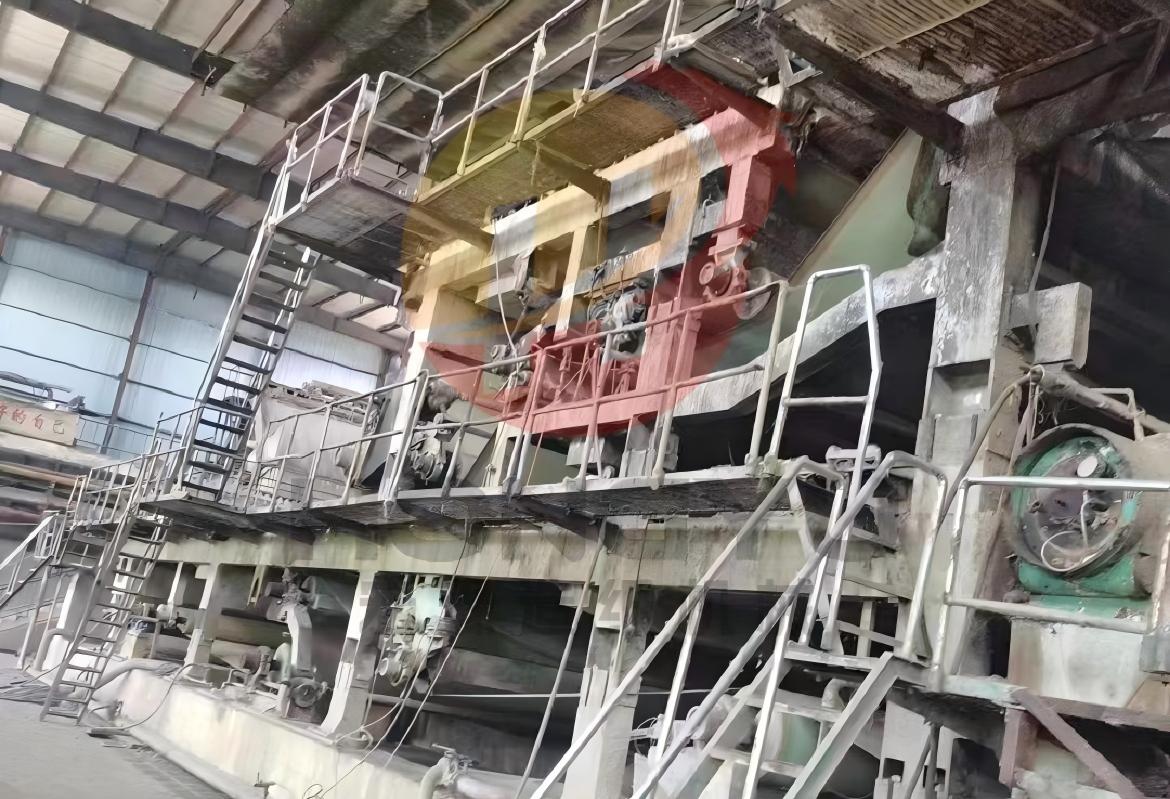

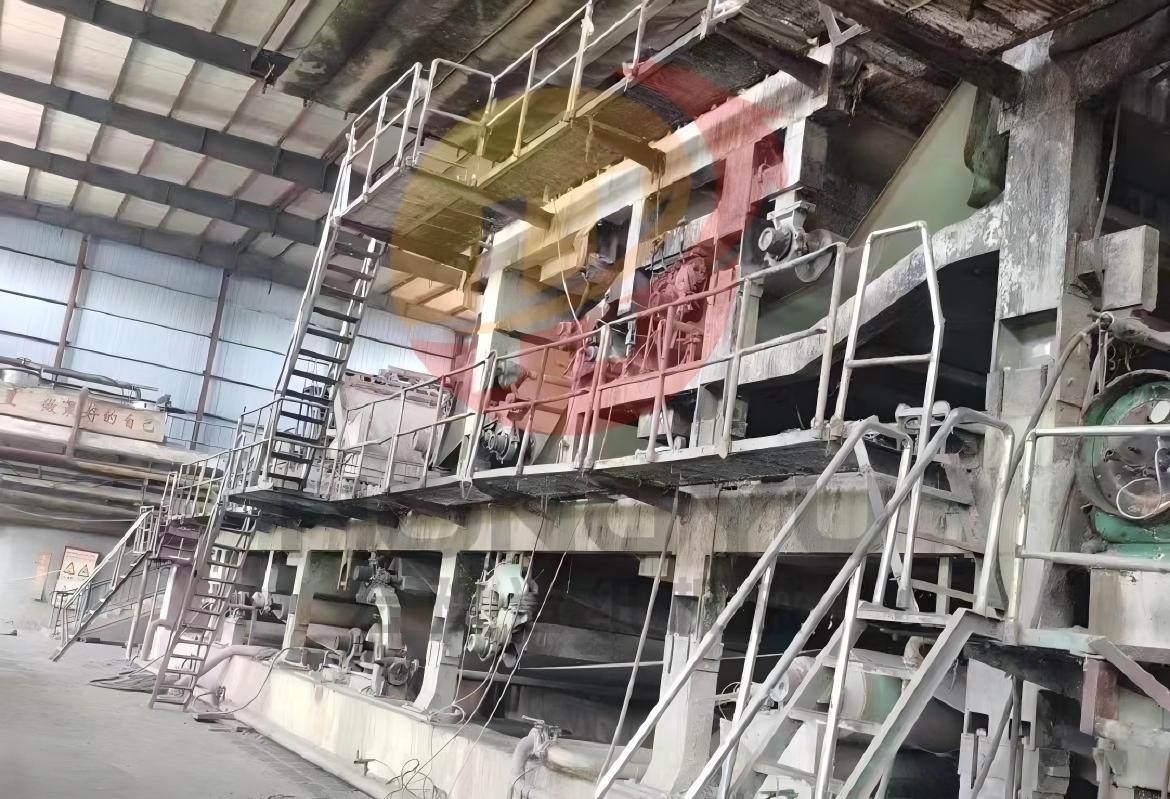

① Wire Section

• The bottom wire length is 21m, and the upper wire length is 7m, ensuring effective pulp forming.
• Equipped with an air cushion headbox (made by Xi’an Weiyang) with a lip width of 4200mm, guaranteeing uniform pulp distribution.
• Dehydration element adopts a stainless steel ceramic panel, featuring excellent wear resistance and dehydration efficiency.
• Vacuum roller: Diameter of 900mm, with an effective suction area of 4200mm, enhancing dehydration performance.
• Drive screen roller: Diameter of ∅800mm, ensuring stable transmission of the wire system.

② Pressing Section

• 1 unit of vacuum press, with specifications of ∅900×850mm, effectively removing moisture from the wet paper web.
• 2 units of large roller presses, with dimensions of 1320×4300×5150mm, providing strong pressing force for further moisture reduction.
• Equipped with 4 blind rubber hole rollers, paired with double upper and lower blankets, ensuring smooth paper web transfer and uniform pressing.

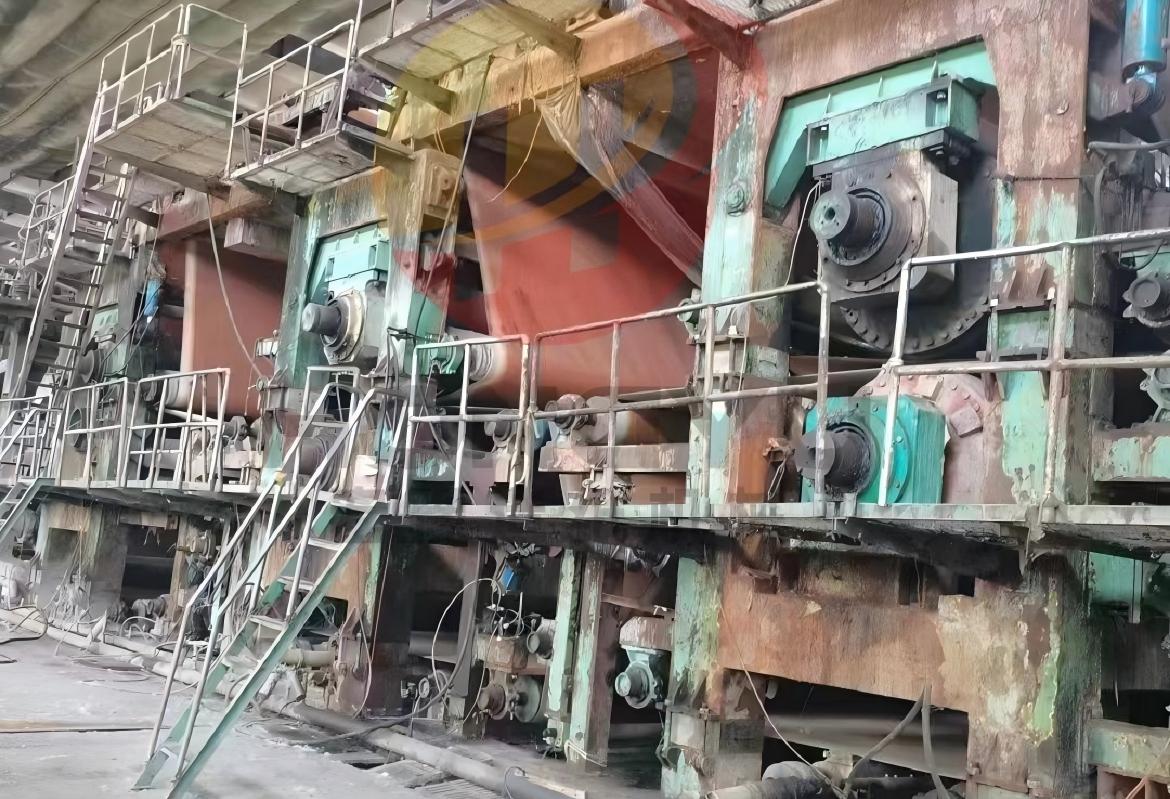

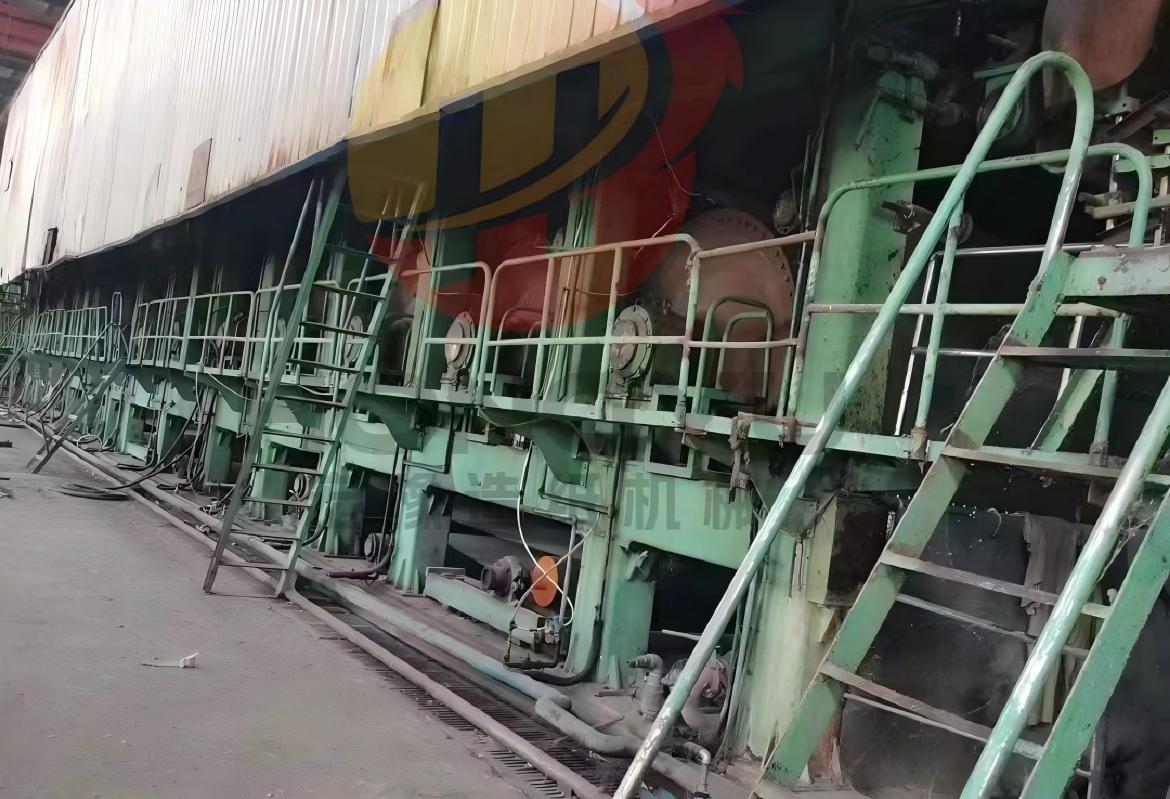

③ Drying Section

• Consists of 40 dryers grouped into sets (26 dryers in one group + 14 dryers in another group), with 5 dryers per set.
• Operating pressure: 5kg, ensuring efficient drying of the paper web.

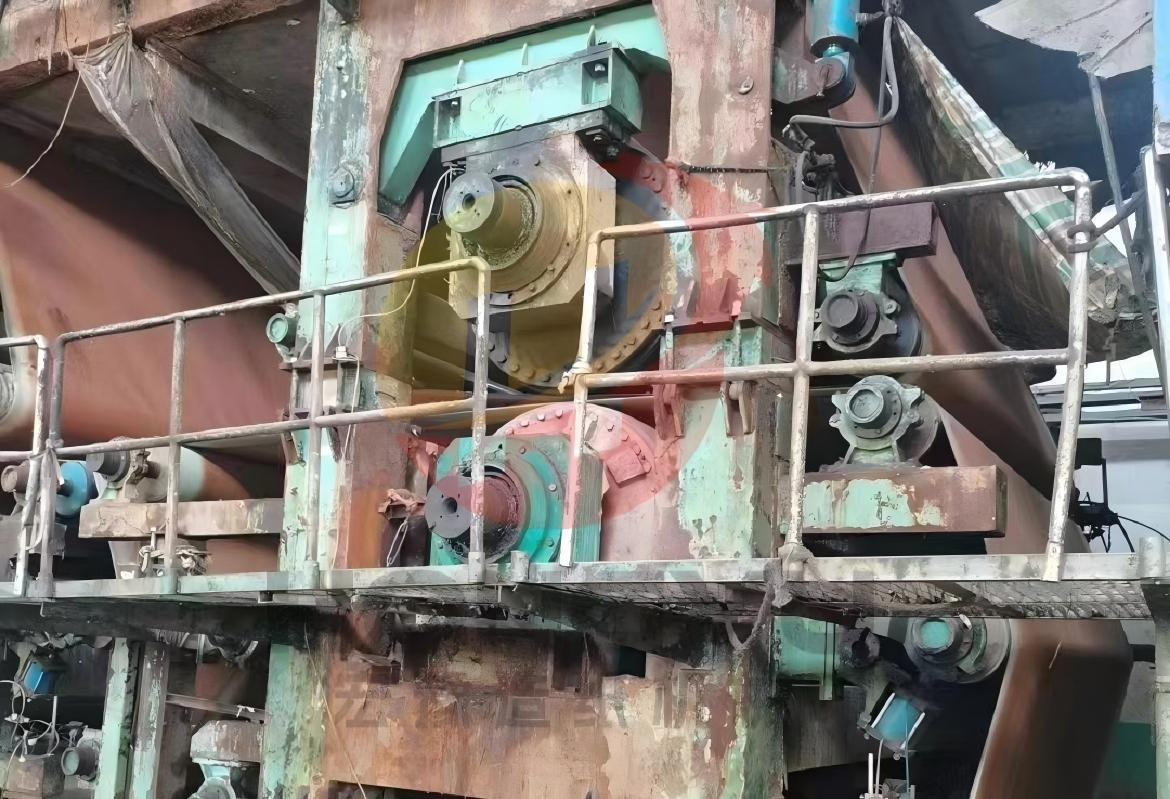

• Dryer dimensions: ∅1800×4360×5050mm, adopting closed gear box transmission (4 support 4 structure) for stable and reliable operation.

④ Size Press

• 1 unit of size press, with specifications of ∅900×4200×5050mm, used for surface sizing of paper to improve paper performance.

⑤ Calender

• 1 unit of two-roller calender, with dimensions of ∅700×4200×5050mm, enhancing paper smoothness and surface quality.

⑥ Water Scanner

• Equipped with 1 water scanner, enabling real-time monitoring of paper moisture content to ensure consistent product quality.

⑦ Pope Reel

• 1 unit of pope reel (roller magazine type), facilitating efficient winding of the finished paper rolls for subsequent processing.

3. Transmission & Equipment Status

• Transmission Mode: Adopts alternating frequency-divided inverter transmission, allowing precise speed control and energy-saving operation.
• Equipment Status: The machine has been completely dismantled, making it convenient for transportation, reinstallation, and subsequent commissioning at the buyer’s site.
