Core Structure & Working Principle

1. Key Structural Features

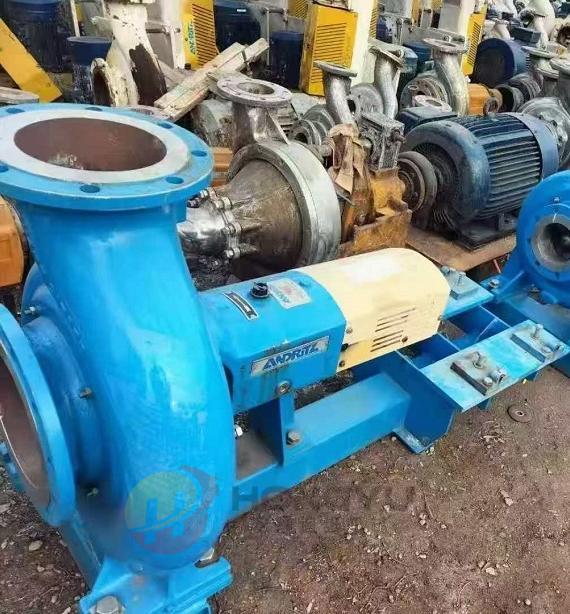

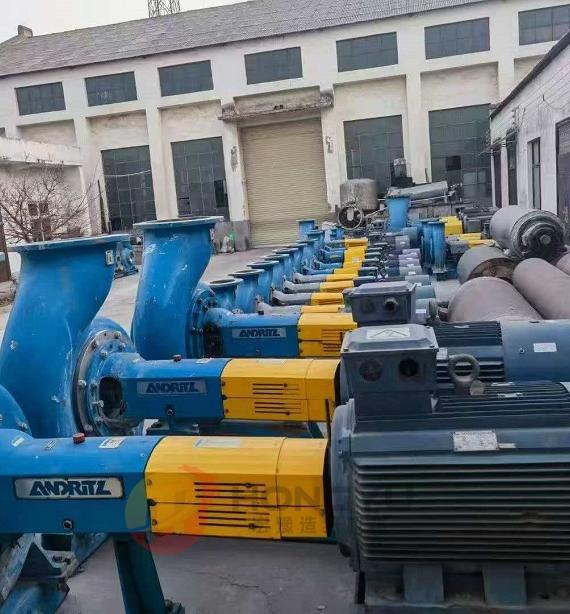

   Andritz pulp pumps are available in centrifugal and positive-displacement configurations, with shared specialized components tailored to papermaking needs:

   • Customized impeller designs:

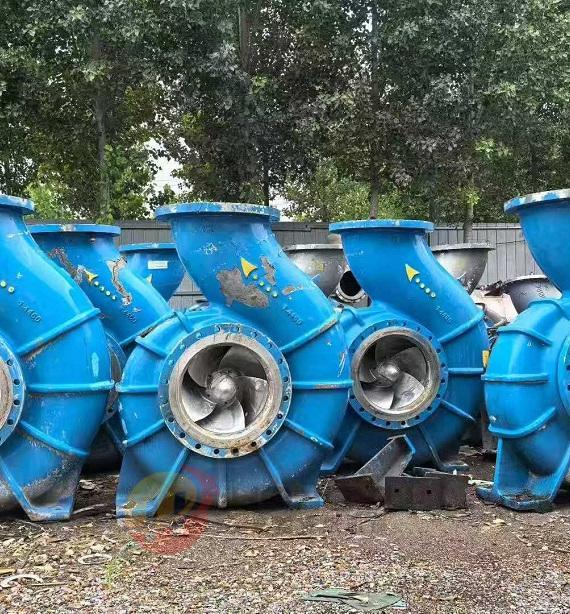

     • For low-to-medium consistency pulp (≤8%), open or semi-open impellers with ultra-wide flow channels and rounded blade edges are used to eliminate fiber entanglement and minimize shear damage to cellulose fibers.
     • For high-consistency pulp (>8%), helical rotor or lobe-style positive-displacement impellers (in screw or gear pump models) create sealed transfer chambers to maintain stable pressure and flow, even with viscous, fiber-dense slurry.
   • Wear-resistant pump casing: The casing is lined with high-grade rubber, ceramic, or nickel-chromium alloy to resist abrasion from pulp impurities (e.g., small grit, residual paper scraps) and extend service life. The inner surface is precision-machined to a smooth finish, reducing slurry turbulence and fiber shortening during transport.
   • Dual-seal shaft system: A robust mechanical seal assembly (with optional flush systems) prevents pulp leakage and air ingress, critical for maintaining consistent slurry density and avoiding pump cavitation. The seal is designed for easy replacement to minimize maintenance downtime.
   • Variable-frequency drive (VFD) motor: A high-efficiency, energy-saving motor paired with a VFD allows precise adjustment of pump speed and flow rate, enabling seamless synchronization with upstream (e.g., hydrapulpers, screens) and downstream (e.g., refiners, paper machine headboxes) equipment.
   • Smart monitoring module: Many models integrate sensors for real-time tracking of pressure, flow rate, and bearing temperature, providing predictive maintenance alerts to prevent unplanned shutdowns.

2. Operational Mechanism

   The working principle varies by pump type, but all Andritz pulp pumps prioritize fiber protection and process continuity:

   • Centrifugal models (low-to-medium consistency): When the impeller rotates, it generates centrifugal force to accelerate the pulp slurry toward the casing outlet. The wide impeller channels and smooth casing interior allow fibers to pass through unimpeded, while the VFD motor adjusts speed to match production line throughput, avoiding over-pressurization that could damage fiber structure.
   • Positive-displacement models (high-consistency): Rotating screws or lobes form sealed cavities that trap pulp and push it toward the discharge port at a constant volume per revolution. This design ensures steady flow and pressure even with thick, fiber-dense slurry, eliminating the flow fluctuations common in standard centrifugal pumps for high-consistency applications.
   • In both configurations, the pump’s fiber-protective design preserves key pulp properties (fiber length, tensile strength) that directly impact the quality of the final paper product, while the wear-resistant components reduce long-term operational costs.

Key Functions & Application Scenarios

• Full-range pulp transfer: Handles pulp with consistency ranging from 1% (diluted screening slurry) to 18% (concentrated refining pulp), covering all stages of papermaking—from hydrapulper discharge and screen feeding to refiner supply and paper machine headbox delivery.
• Fiber integrity preservation: The specialized impeller and casing design minimizes fiber breakage and shortening, a critical advantage for producing high-quality paper (e.g., premium packaging paper, cultural paper, tissue paper) that requires strong fiber bonds.
• Heavy-duty reliability: Built for continuous 24/7 operation in large-scale paper mills, the wear-resistant materials and smart monitoring system reduce maintenance frequency and extend pump service life, ensuring high production uptime.
• Customized process integration: Andritz offers tailor-made pump solutions (size, material, drive type) to match specific mill layouts and pulp types, including recycled waste paper pulp, virgin wood pulp, and specialty pulps (e.g., bamboo pulp, bagasse pulp). It also integrates with the mill’s overall process control system for centralized operation and optimization.
• Sustainable operation: The VFD motor and energy-efficient hydraulic design reduce power consumption by 10–15% compared to standard pulp pumps, aligning with modern paper mills’ goals of carbon footprint reduction and energy conservation.
