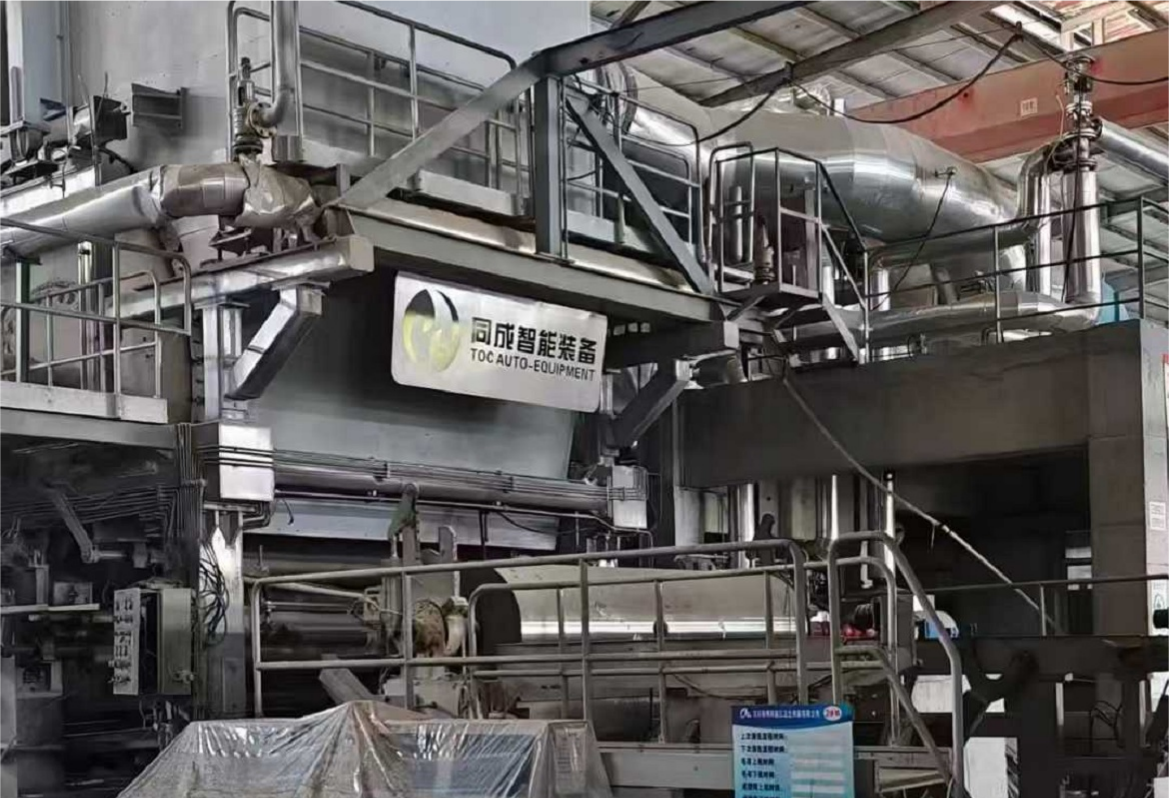

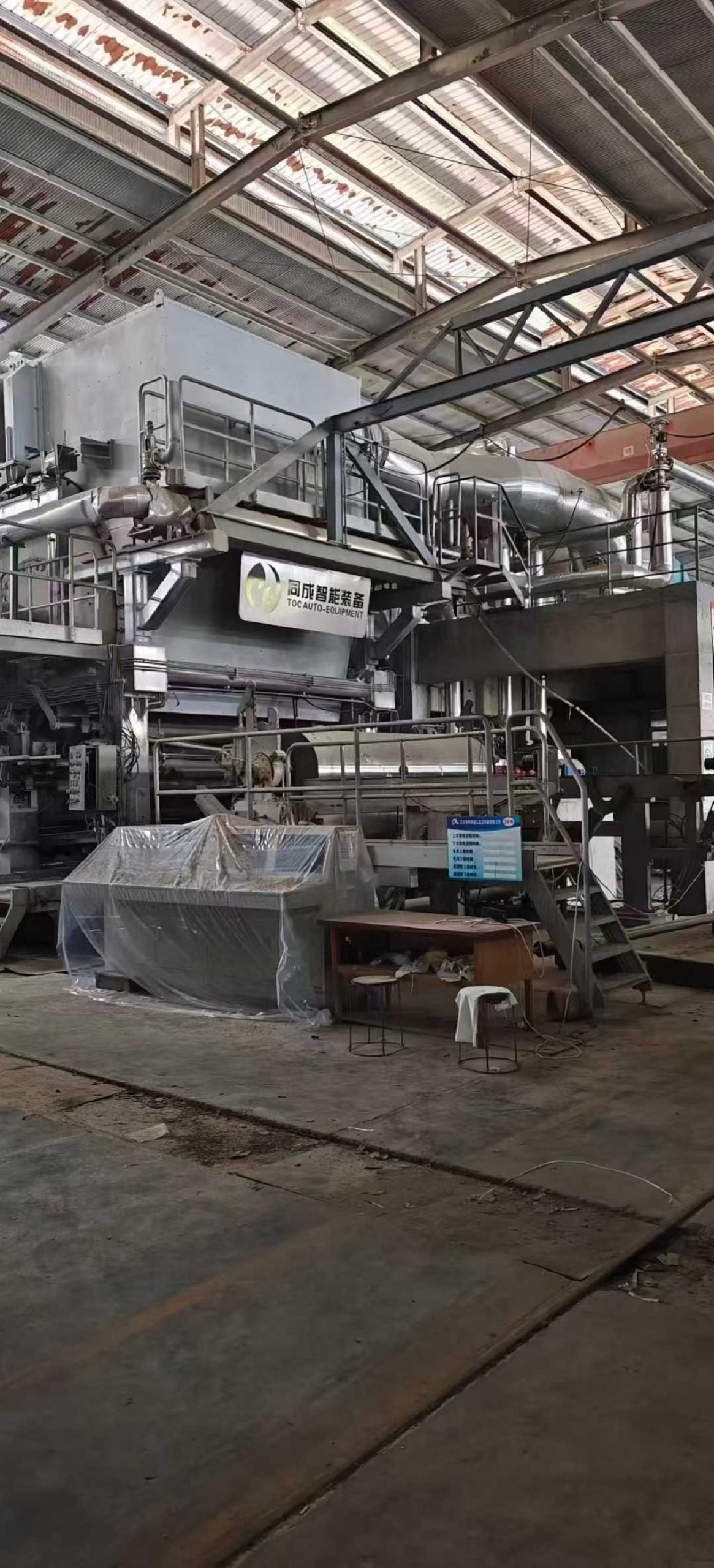

Technical Document for TC-2850-1200 Tissue Paper Machine
1. Product Variety
Facial tissue, toilet paper, hand towel, etc.
2. Forming Width
2850mm (paper width at the reel machine)
3. Grammage Range
9~32 g/m² (at the dryer cylinder)
4. Production Capacity
Maximum 47T/d (based on dryer cylinder speed of 1100m/min, finished product grammage of 14.5g/m², and creping ratio of 25%)
5. Designed Speed
1200m/min
6. Operating Speed
1100m/min
7. Dynamic Balancing Speed
1200m/min
8. Creping Ratio
15~35%
9. Performance Guarantee
(Under the condition of reel machine grammage of 14.5g/m² and creping ratio of 25%)① Operating speed: 1100m/min② Steam consumption per ton of paper: 2.0t steam/t paper (for commercial wood pulp)③ Power consumption: 310KWH/T④ Cross-machine grammage deviation: 0.5g per square meter
10. Transmission Mode
AC motor, variable frequency speed regulation, sectional transmission (interlocked), remote control via DCS man-machine interface
