3800mm Fourdrinier Paper Machine Production Line

1. Wire Section

• Fourdrinier length: 15 meters, open-type headbox
• Dewatering elements: stainless steel with ceramic surface panels
• Vacuum couch roll: Ø800 × 4250 mm

2. Press Section

• First press roll: Ø900 × 4250 mm
• Second press roll: Ø1320 × 4250 mm

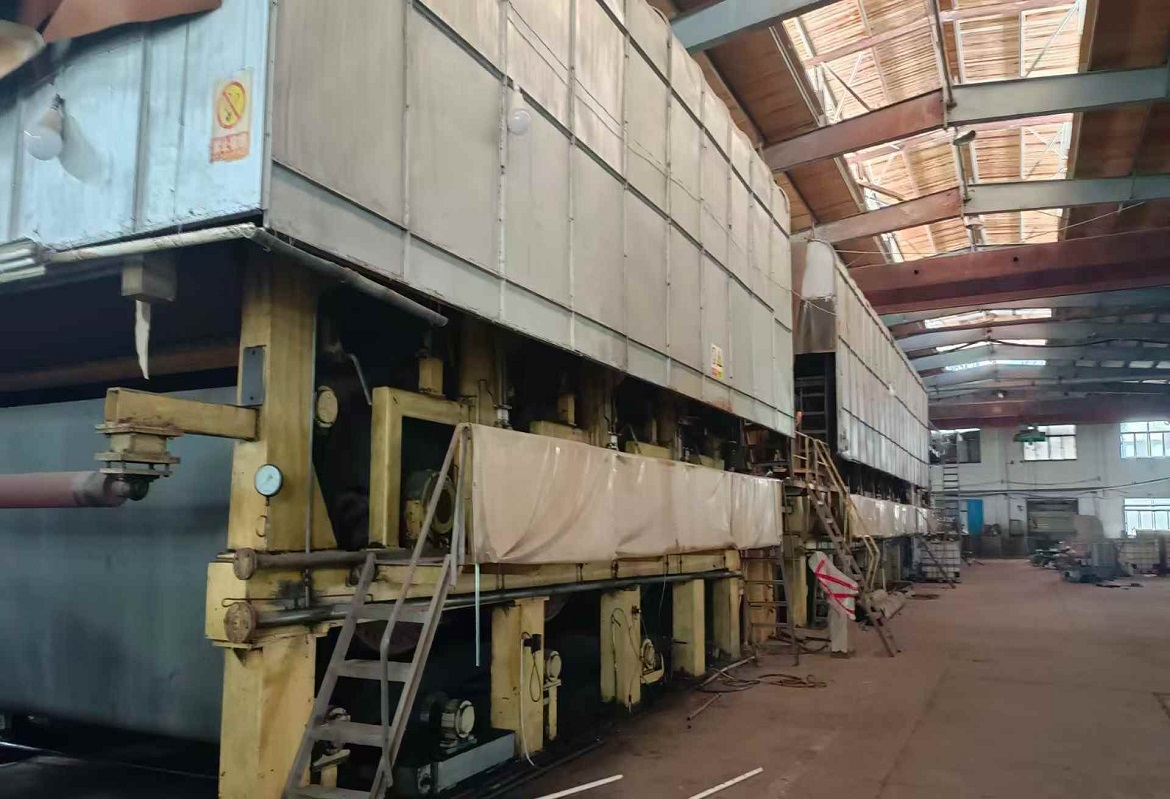

3. Dryer Section

• 22 dryer cylinders, each Ø1800 × 4250 mm, with enclosed gearbox drive
• Size press rolls: Ø850 × 4150 mm

4. Reeling & Rewinding

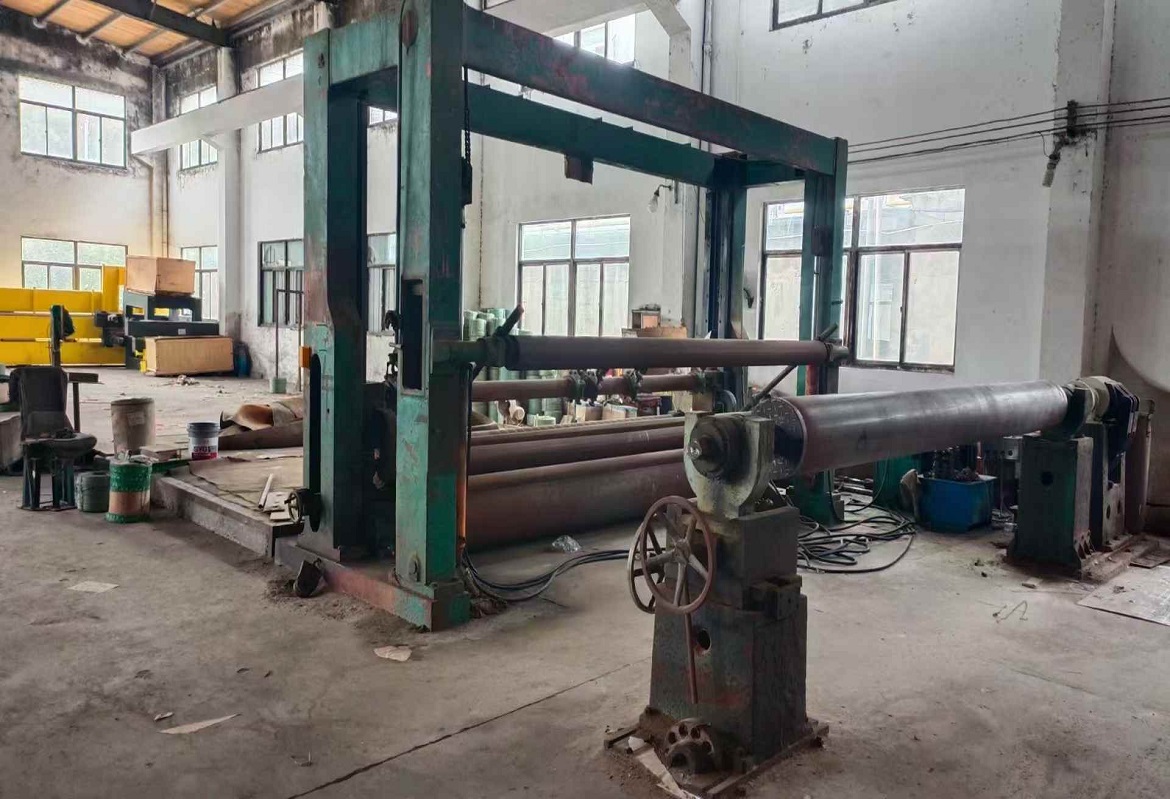

• 1 horizontal reeler
• 1 frame-type rewinder

5. Production Capacity

• 100 – 120 TPD
